- Models w-Sleepers
- T680 '13-'22, T880 '20-'22, Pete 348 '10-'20, 567 and 579 '16-'22
Product Overview

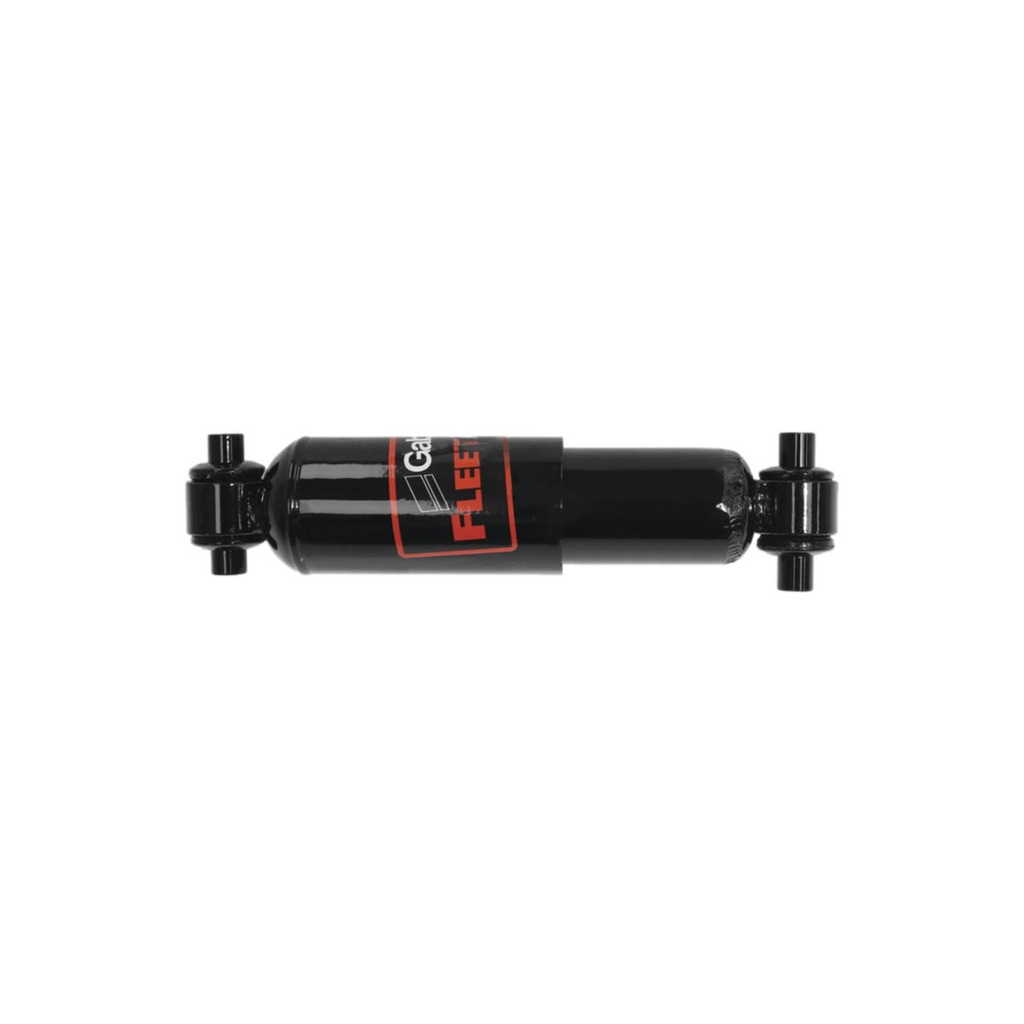

Gabriel's Fleetline Heavy Duty Shocks are direct OE replacements for class 3-6 trucks . Designed with a valve rating that compensates for suspension softening to offer performance that meets the original parts. Fleetline parts incorporate a caged piston design that provides superior dampening across the spectrum of operation. This part is fabricated to be long lasting; durable and keep your cabin stable even in the roughest conditions.
Specific Features & Benefits
- The self-compensating piston seal offers reliable and consistent shock absorption for a smooth and even ride
- The hydraulic stop prevents the shock from over-extending or topping out; extending the product's life
- Internal piston is made of chrome for improved corrosion resistance
- Multi stage all-coil spring valving provides improved dampening and reduces vibration
- Features 1-3/8" bore ideal for light trucks or heavy truck suspensions
| Attribute | Value |
|---|---|
| Applications | Kenworth Peterbilt |
| Type | A83200 |
| Gabriel Number | 83081 |
| Product Line | FleetLine (Cab) |
| Collapsed Length | 9.98 |
| Lengths Stroke | 4.00 |
| Controls Rebound | 1004 |
| Controls Compression | 232 |
| External Diameter Illustration | A |
| Dust Tube | YES |
| Recoil Cutoff | YES |
| Extended Length | 13.39 |
| Extended | 13.39 |
| Name | Part Number | Notes |
|---|---|---|
| Gabriel | 83081 | Shock Absorber |
| Kenworth | 1201-8002 | Shock Absorber |
| Kenworth | 12018002 | Shock Absorber |
| Kenworth | 25523013 | Shock Absorber |
| Kenworth | 25523024 | Shock Absorber |
| Peterbilt | 1201-8006 | Shock Absorber |
