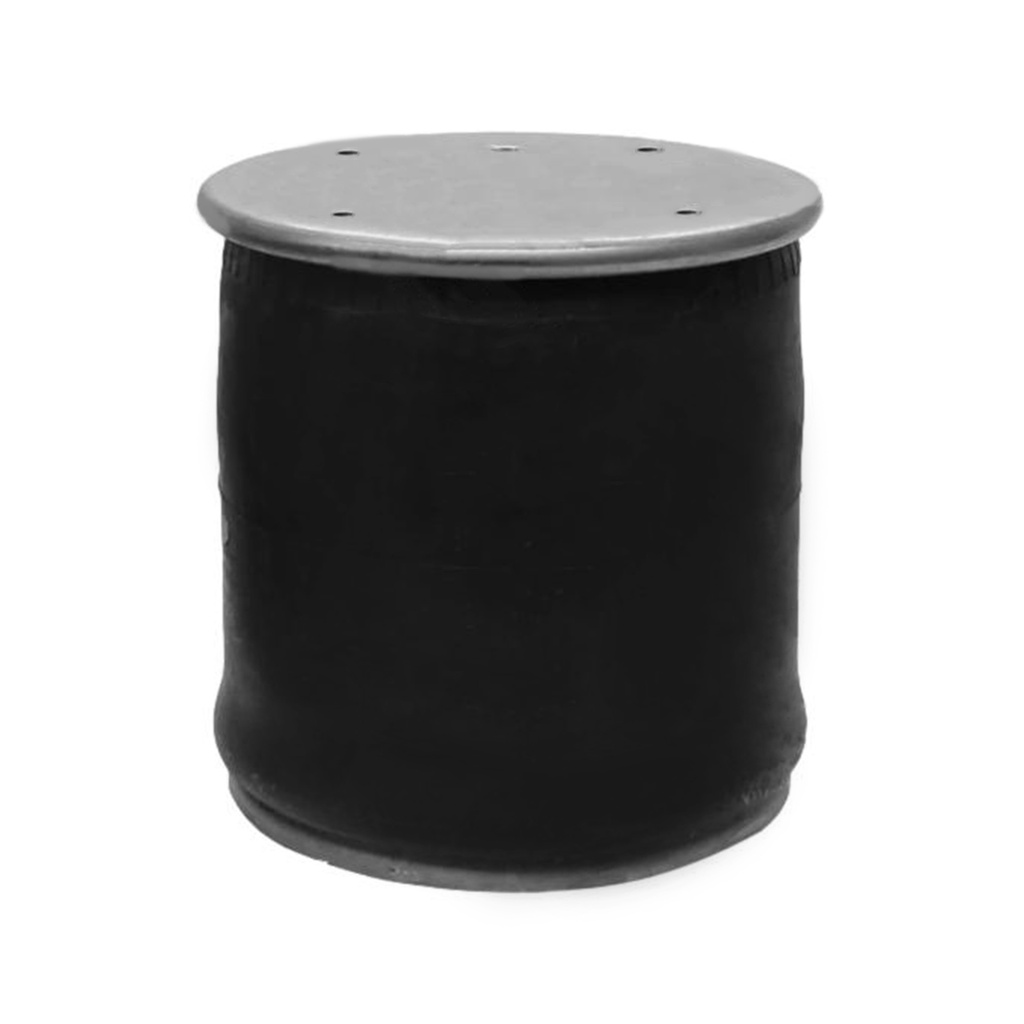

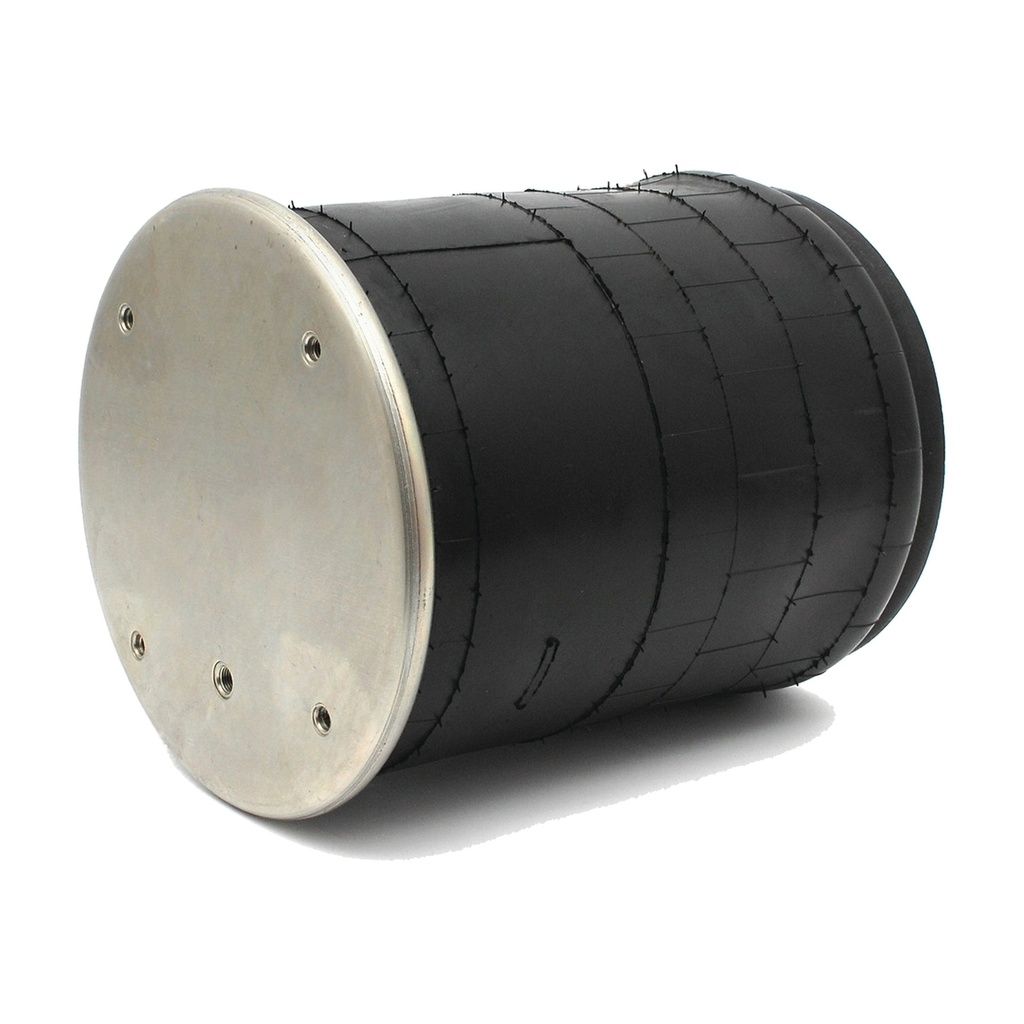

Air Spring Rolling Lobe SP 559156-KP AB1D28C-9156 9156 1R14-019 64354 S7128 055000080
| Brand: Automann |
| Cross Reference 1: 9156 1R14-019 64354 S7128 055000080 |
| Cross Reference 2: 9165 W013589152 W01-358-9152 W013589156 W01-358-9156 |
| Cross Reference 3: W013589156 W01-358-9156 1R14019 1R14-019 B7128 B-7128 |
| Cross Reference 4: S7128 S-7128 1681742C1 554777C1 SC2044 SC2111 055000080 |
| Cross Reference 5: 0550-00080 0550-00081 055000081 AS622-9156 |
| Manufacturer Part Number: AB1D28C-9156 |
| Cross Reference: 11 10.5-21 A 370 1110.5-21A370 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1D28C |
| Firestone Bellows# | 1T19F-11, 1T19L-11 |
| Goodyear Bellows# | 566-28-3-020 |
| Contitech Bellows# | 11 10.5 -21 |
| Triangle Bellows# | 6366 |
| Load (Lbs) @80 PSI | 6900 |
| Load (Lbs) @100 PSI | 8800 |
| Natural Freq. (CPM) | 62 |
| Design Height (In) | 16.50 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Qty | 5 |
| Top Plate Dia. (A) | 11.31 |
| Top Plate C to C Dia. (B) | 6.25 |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 10.25 |
| Bottom Plate C to C Dia. (D) | 7.87" |
| Bottom Part # | BS05215 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 8.50 |
| Max. Height | 26.50 |
| Max. Dia. | 13.70 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 11 10.5-21 A 370 | Air Spring Rolling Lobe |
| Contitech | 1110.5-21A370 | Air Spring Rolling Lobe |
| Contitech | 64354 | Air Spring Rolling Lobe |
| Firestone | 9156 | Air Spring Rolling Lobe |
| Firestone | 9165 | Air Spring Rolling Lobe |
| Firestone | W013589152 | Air Spring Rolling Lobe |
| Firestone | W01-358-9152 | Air Spring Rolling Lobe |
| Firestone | W013589156 | Air Spring Rolling Lobe |
| Firestone | W01-358-9156 | Air Spring Rolling Lobe |
| Goodyear | 1R14019 | Air Spring Rolling Lobe |
| Goodyear | 1R14-019 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B7128 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B-7128 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S7128 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S-7128 | Air Spring Rolling Lobe |
| IHC | 1681742C1 | Air Spring Rolling Lobe |
| IHC | 554777C1 | Air Spring Rolling Lobe |
| Loadguard | SC2044 | Air Spring Rolling Lobe |
| Loadguard | SC2111 | Air Spring Rolling Lobe |
| Peerless | 055000080 | Air Spring Rolling Lobe |
| Peerless | 0550-00080 | Air Spring Rolling Lobe |
| Peerless | 055000081 | Air Spring Rolling Lobe |
| Peerless | 0550-00081 | Air Spring Rolling Lobe |
| Taurus | AS622-9156 | Air Spring Rolling Lobe |
