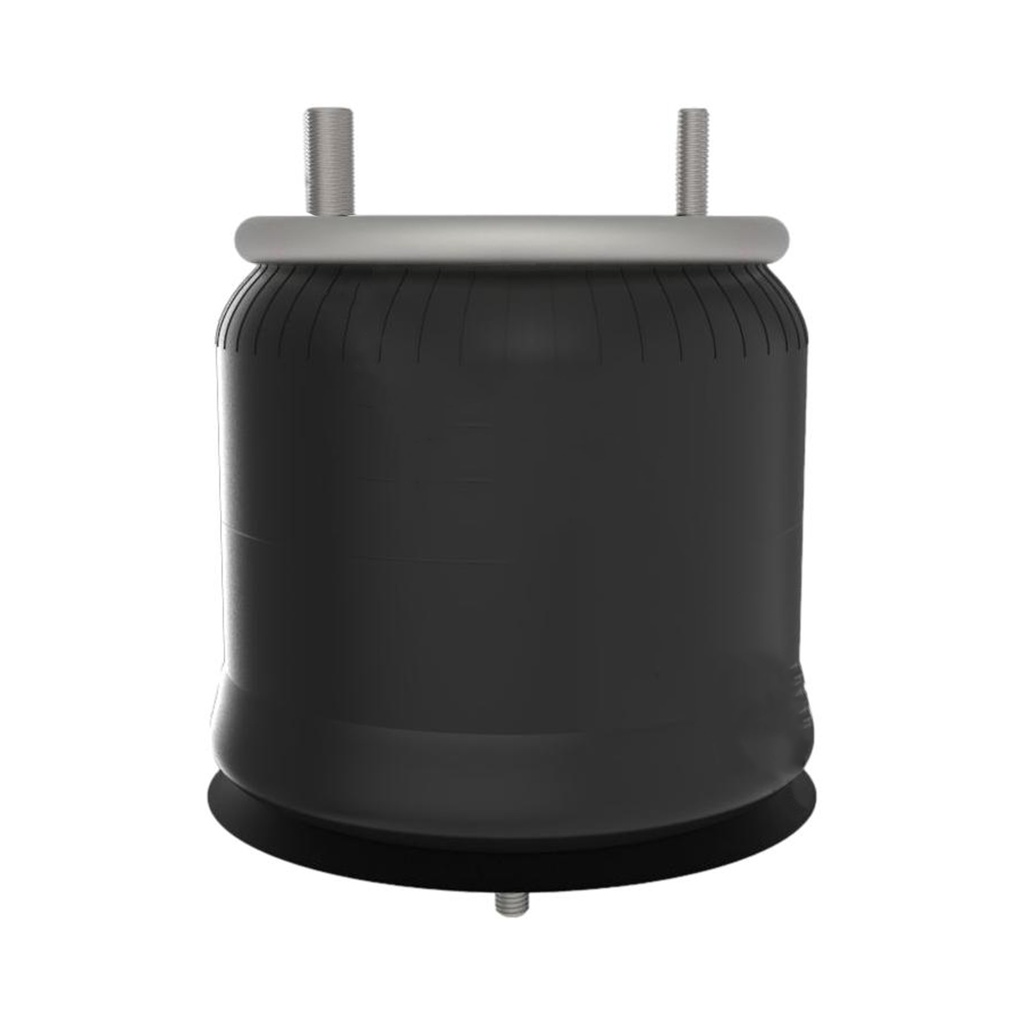

Air Spring Rolling Lobe  AB1DK20D-9448   1R11-150




Air Spring Rolling Lobe AB1DK20D-9448 1R11-150
(0 review)

141.74 141.74 USD 141.74


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: AB1DK20D-9448
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck


Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK20DContitech Bellows#9 9-12Load (Lbs) @80 PSI5100Load (Lbs) @100 PSI6400Natural Freq. (CPM)80Design Height (In)8.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)9.53Bottom Plate C to C Dia. (D)4.12Bottom #BS08624BumperYesBracketN/AMin. Height5.10Max. Height14.40Max. Dia.11.40Cross Reference Name Number Notes Contitech64286Air Spring Rolling LobeContitech99-12P563Air Spring Rolling LobeEldorado Bus7089E000Air Spring Rolling LobeFirestone9448Air Spring Rolling LobeFirestoneW013589448Air Spring Rolling LobeFirestoneW01-358-9448Air Spring Rolling LobeGoodyear1R11150Air Spring Rolling LobeGoodyear1R11-150Air Spring Rolling LobeRidewell1003589448CAir Spring Rolling Lobe
