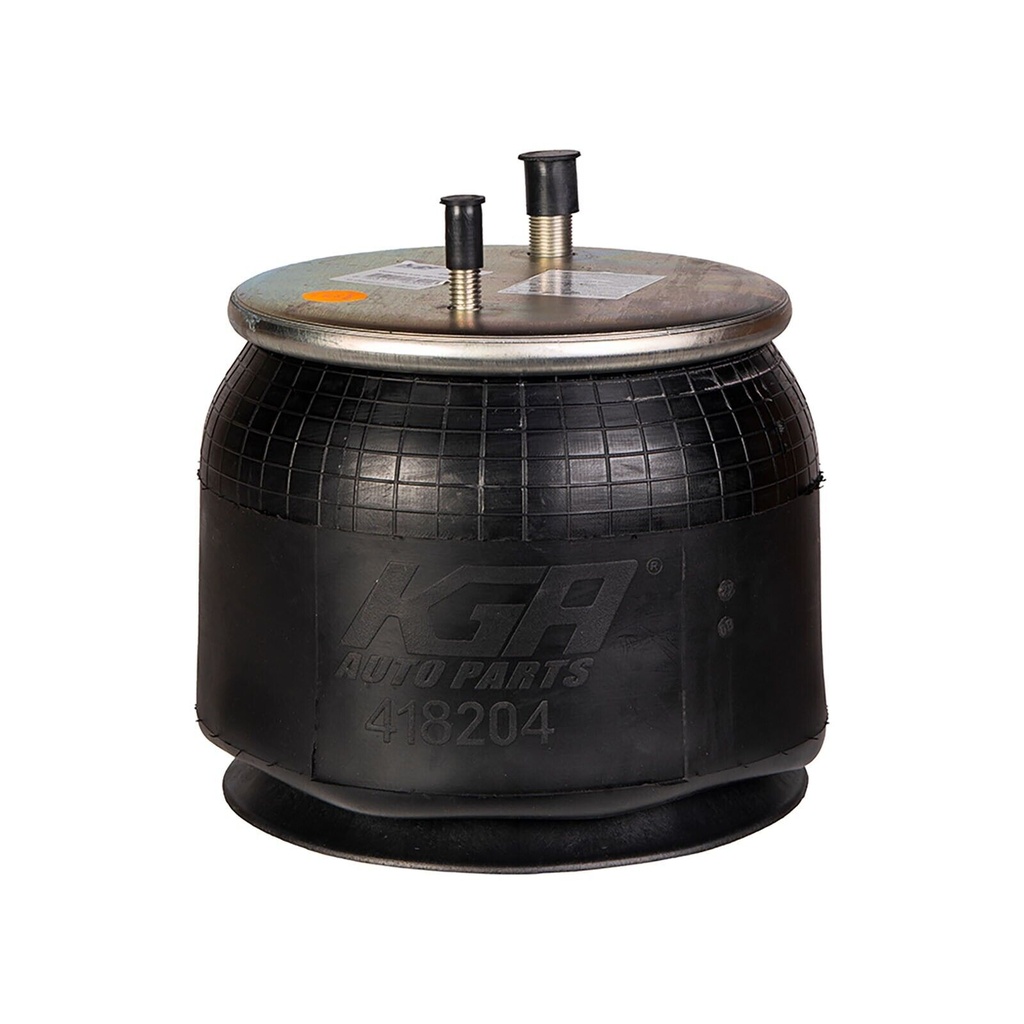

Air Spring Rolling Lobe 410.P8204 W01-358-8204 64456
| Brand: KGA |
| Manufacturer Part Number: 410.P8204 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1T15M-2 |
| Firestone Bellows# | 566-24-3-067 |
| Goodyear Bellows# | 9 10-12 |
| Contitech Bellows# | 6361 |
| Triangle Bellows# | 5500 |
| Load (Lbs) @80 PSI | 7000 |
| Load (Lbs) @100 PSI | 85 |
| Natural Freq. (CPM) | 8.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | N/A |
| Bottom Part # | BS08127 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 4.50 |
| Max. Height | 14.70 |
| Max. Dia. | 12.60 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Binkley | XBSPN05337 | Air Spring Rolling Lobe |
| Binkley | XB-SPN-053-37 | Air Spring Rolling Lobe |
| Contitech | 161234 | Air Spring Rolling Lobe |
| Contitech | 64456 | Air Spring Rolling Lobe |
| Contitech | 9 10-12 P 484 | Air Spring Rolling Lobe |
| Firestone | 8204 | Air Spring Rolling Lobe |
| Firestone | W013588204 | Air Spring Rolling Lobe |
| Firestone | W01-358-8204 | Air Spring Rolling Lobe |
| Goodyear | 1R12508 | Air Spring Rolling Lobe |
| Goodyear | 1R12-508 | Air Spring Rolling Lobe |
| Goodyear | 1R12522 | Air Spring Rolling Lobe |
| Goodyear | 1R12-522 | Air Spring Rolling Lobe |
| Goodyear | 1R12608 | Air Spring Rolling Lobe |
| Goodyear | 1R12-608 | Air Spring Rolling Lobe |
| Neway | 90557173 | Air Spring Rolling Lobe |
| Neway | 90557223 | Air Spring Rolling Lobe |
| Neway | G2298204200 | Air Spring Rolling Lobe |
| Neway | XDSPN05360 | Air Spring Rolling Lobe |
