Air Spring Rolling Lobe 410.P9307 W01-358-9307 67490 1R12-435 17360-01 90557129

Price:

73.49

FREE STANDARD SHIPPING. FREE RETURNS

Air Spring Rolling Lobe 410.P9307 W01-358-9307 67490 1R12-435 17360-01 90557129

https://kahgogroup.odoo.com/web/image/product.template/96781/image_1920?unique=b3b0ee7
(0 review)

73.49 73.49 USD 73.49

73.49


  • Brand
  • Manufacturer Part Number
  • OE/OEM Part Number
  • Other OEM Part Number
  • Cross Reference

This combination does not exist.

Brand: KGA
Manufacturer Part Number: 410.P9307
OE/OEM Part Number: 64439 67490 9 10-10.5 P 883 910-10P471 9307
Other OEM Part Number: W013589307 W01-358-9307 1R12095 1R12-095 1R12435
Cross Reference: 1R12-435 17360-01 90557129
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing


ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck



You Might Also Like these Products


Specifications

AttributeValue
TypeRolling Lobe
Automann Bellows#1T15M-0.5
Firestone Bellows#566-24-3-067
Goodyear Bellows#9 10-10
Contitech Bellows#6360
Triangle Bellows#5700
Load (Lbs) @80 PSI7200
Load (Lbs) @100 PSI81
Natural Freq. (CPM)7.50

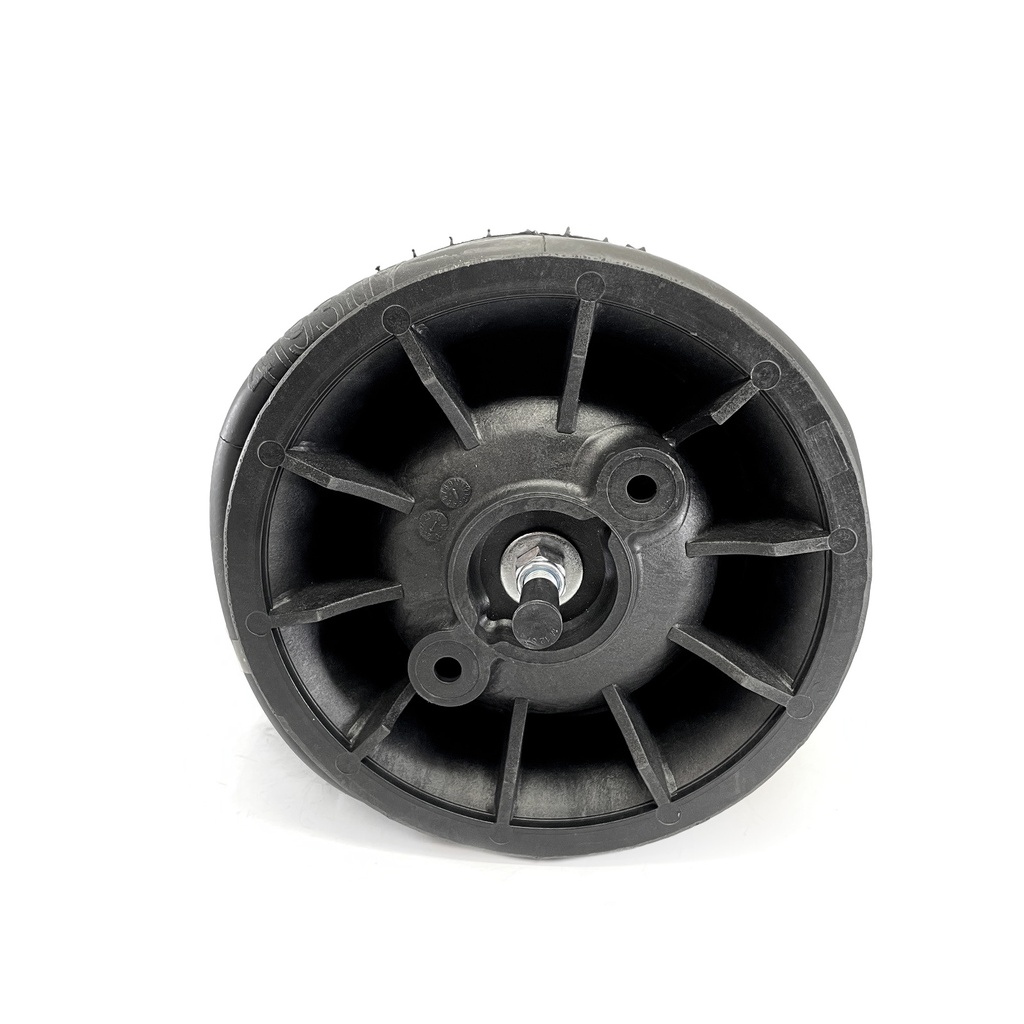

Bottom Plate TypePlastic
Top Plate Hole/Stud Qty2
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)5.50
Bottom Plate Hole/Stud Qty1
Bottom Plate Dia. (C)N/A
Bottom Part #BS08127
BumperYes
BracketN/A
Min. Height5.10
Max. Height12.90
Max. Dia.12.60

Cross Reference

NamePart NumberNotes
Contitech64439Air Spring Rolling Lobe
Contitech67490Air Spring Rolling Lobe
Contitech9 10-10.5 P 883Air Spring Rolling Lobe
Contitech910-10P471Air Spring Rolling Lobe
Firestone9307Air Spring Rolling Lobe
FirestoneW013589307Air Spring Rolling Lobe
FirestoneW01-358-9307Air Spring Rolling Lobe
Goodyear1R12095Air Spring Rolling Lobe
Goodyear1R12-095Air Spring Rolling Lobe
Goodyear1R12435Air Spring Rolling Lobe
Goodyear1R12-435Air Spring Rolling Lobe
Reyco17360-01Air Spring Rolling Lobe
SAF Holland90557129Air Spring Rolling Lobe
