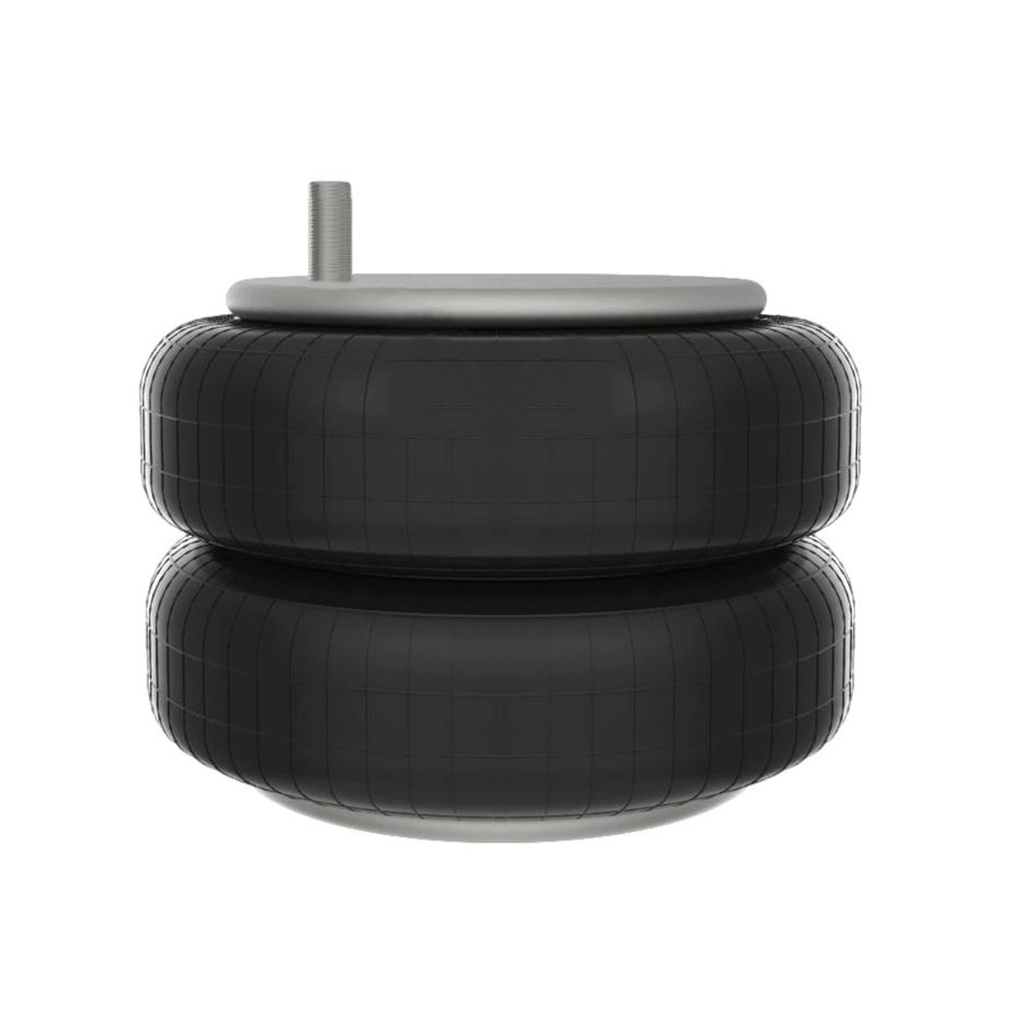

Air Spring Double Convoluted ABSP2B22RA-7472 7472 2B12-434 64535 B12514005
| Brand: Automann |
| Manufacturer Part Number: ABSP2B22RA-7472 |
| Cross Reference: 7472 2B12-434 64535 B12514005 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Double Convoluted |
| Brand | Automann Phoenix |
| Automann Bellows# | SP2B22RA |
| Firestone Bellows# | 228CT-1.5 |
| Goodyear Bellows# | 578-92-3-310 |
| Contitech Bellows# | FD 330-30 |
| Triangle Bellows# | 6328 |
| Load (Lbs) @80 PSI | 5400 |
| Load (Lbs) @100 PSI | 6800 |
| Natural Freq. (CPM) | 88 |
| Design Height (In) | 10.00 |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 9.00 |
| Bottom Plate C to C Dia. (D) | 6.20" |
| Bumper | No |
| Min. Height | 3.10 |
| Max. Height | 14.60 |
| Max. Dia. | 13.40 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 64535 | Air Spring Double Convoluted |
| Contitech | FD 330 30 371 | Air Spring Double Convoluted |
| Firestone | 7472 | Air Spring Double Convoluted |
| Firestone | W013587472 | Air Spring Double Convoluted |
| Firestone | W01-358-7472 | Air Spring Double Convoluted |
| Goodyear | 2B12434 | Air Spring Double Convoluted |
| Goodyear | 2B12-434 | Air Spring Double Convoluted |
| Hendrickson | 365145 | Air Spring Double Convoluted |
| Hendrickson | 36514-5 | Air Spring Double Convoluted |
| Hendrickson | B12235 | Air Spring Double Convoluted |
| Hendrickson | B-12235 | Air Spring Double Convoluted |
| Hendrickson | B12514005 | Air Spring Double Convoluted |
| Hendrickson | B-12514-005 | Air Spring Double Convoluted |
| Hendrickson | HA100095 | Air Spring Double Convoluted |
| Hendrickson | HA-10009-5 | Air Spring Double Convoluted |
| Hendrickson | NA1825 | Air Spring Double Convoluted |
| Hendrickson | NA-1825 | Air Spring Double Convoluted |
| Hendrickson | S12335 | Air Spring Double Convoluted |
| Hendrickson | S-12335 | Air Spring Double Convoluted |
| Hendrickson | S12514005 | Air Spring Double Convoluted |
| Hendrickson | S-12514-005 | Air Spring Double Convoluted |
| Hendrickson | S-1345 | Air Spring Double Convoluted |
| Hendrickson | S-5468 | Air Spring Double Convoluted |
| IHC | 1681751C1 | Air Spring Double Convoluted |
| Loadguard | SC2128 | Air Spring Double Convoluted |
| Neway | 57007472 | Air Spring Double Convoluted |
| Watson&Chalin | AS0112 | Air Spring Double Convoluted |
| Watson&Chalin | AS-0112 | Air Spring Double Convoluted |
