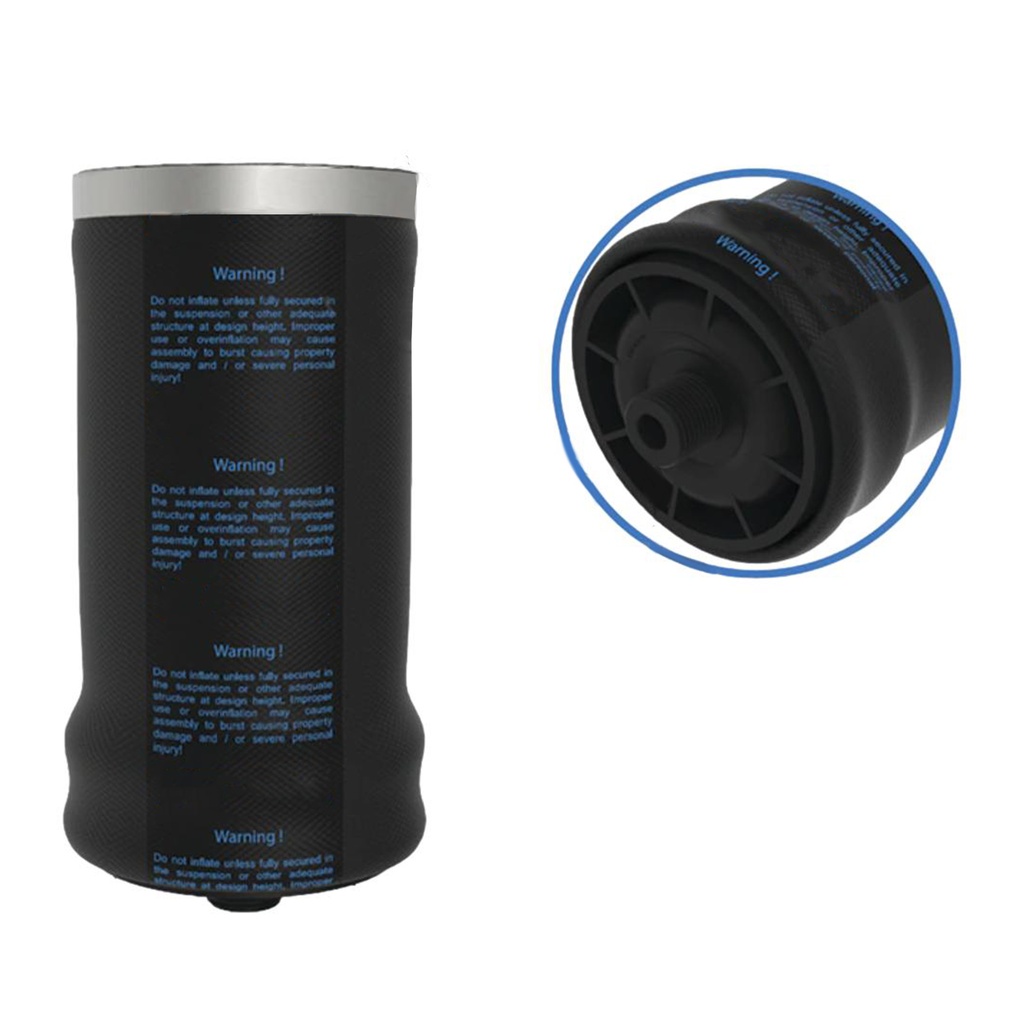

Air Spring Cabin ABSZ70-7064 7064 1S5-157 67768 11020074
| Brand: Automann |
| Cross Reference 1: 7064 1S5-157 67768 11020074 SC29-Y064 SZ70-8077 W023587064 |
| Cross Reference 2: "W02-358-7064 W026007064 W02-600-7064 1S5157 1S5-157 |
| Cross Reference 3: 1699064C1 1102-0074 708077 2031552 |
| Manufacturer Part Number: ABSZ70-7064 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Sleeve Type |
| Brand | Automann Phoenix |
| Load (Lbs) @80 PSI | 874 |
| Load (Lbs) @100 PSI | 1094 |
| Natural Freq. (CPM) | 105 |
| Design Height (In) | 5.00 |
| Top Plate Hole/Stud Qty | 1 |
| Top Plate Dia. (A) | 2.99 |
| Top Plate C to C Dia. (B) | N/A |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 2.83 |
| Bumper | No |
| Min. Height | 2.40 |
| Max. Height | 10.10 |
| Max. Dia. | 5.60 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 67768 | Air Spring Cabin |
| Contitech | SC29-Y064 | Air Spring Cabin |
| Contitech | SZ70-8077 | Air Spring Cabin |
| Firestone | 7064 | Air Spring Cabin |
| Firestone | W023587064 | Air Spring Cabin |
| Firestone | W02-358-7064 | Air Spring Cabin |
| Firestone | W026007064 | Air Spring Cabin |
| Firestone | W02-600-7064 | Air Spring Cabin |
| Goodyear | 1S5157 | Air Spring Cabin |
| Goodyear | 1S5-157 | Air Spring Cabin |
| IHC | 1699064C1 | Air Spring Cabin |
| Link | 11020074 | Air Spring Cabin |
| Link | 1102-0074 | Air Spring Cabin |
| SZ | 708077 | Air Spring Cabin |
| Volvo/White | 20315552 | Air Spring Cabin |
