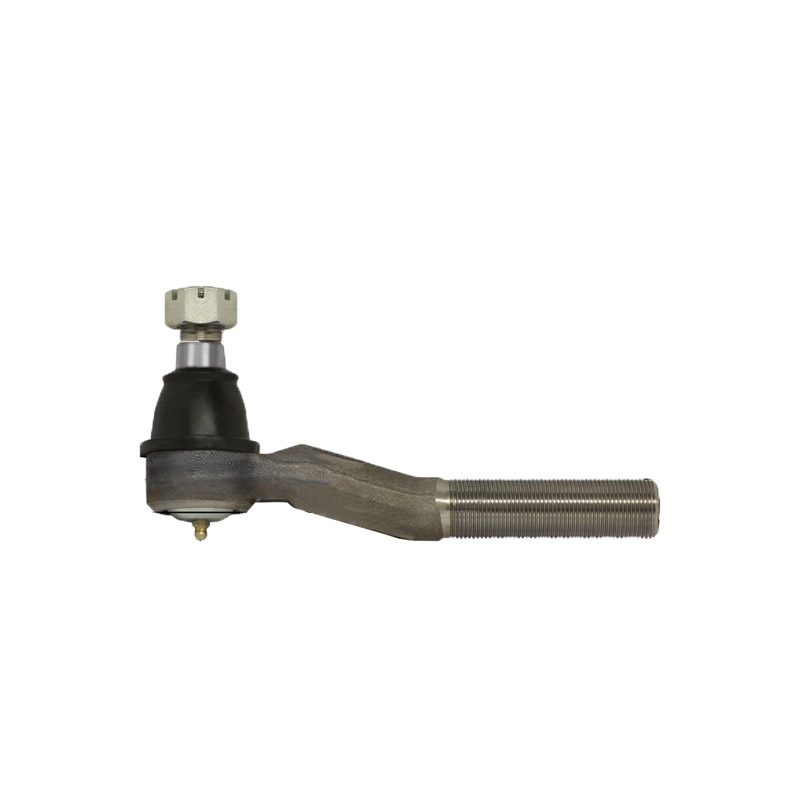

Specifications Attribute ValueRod OD (A)1-1/4” Type 4Thread Pitch & Direction12 (LH)Center to End (B)9.320”Height of Taper (C)2.470”Taper Minor Dia. (D)0.967”Taper Major Dia. (E)1.102”Taper Length (F)1.080”Stud Thread (G)7/8”-14Drop (H)0.780”Cross Reference Name Number Notes Eaton970579Tie Rod EndIHCETNO970579Tie Rod EndMoogES800423Tie Rod EndTrwL20LV8129A13Tie Rod EndTrwL20LV8129B10Tie Rod EndTrwL20LV8129B18Tie Rod End
