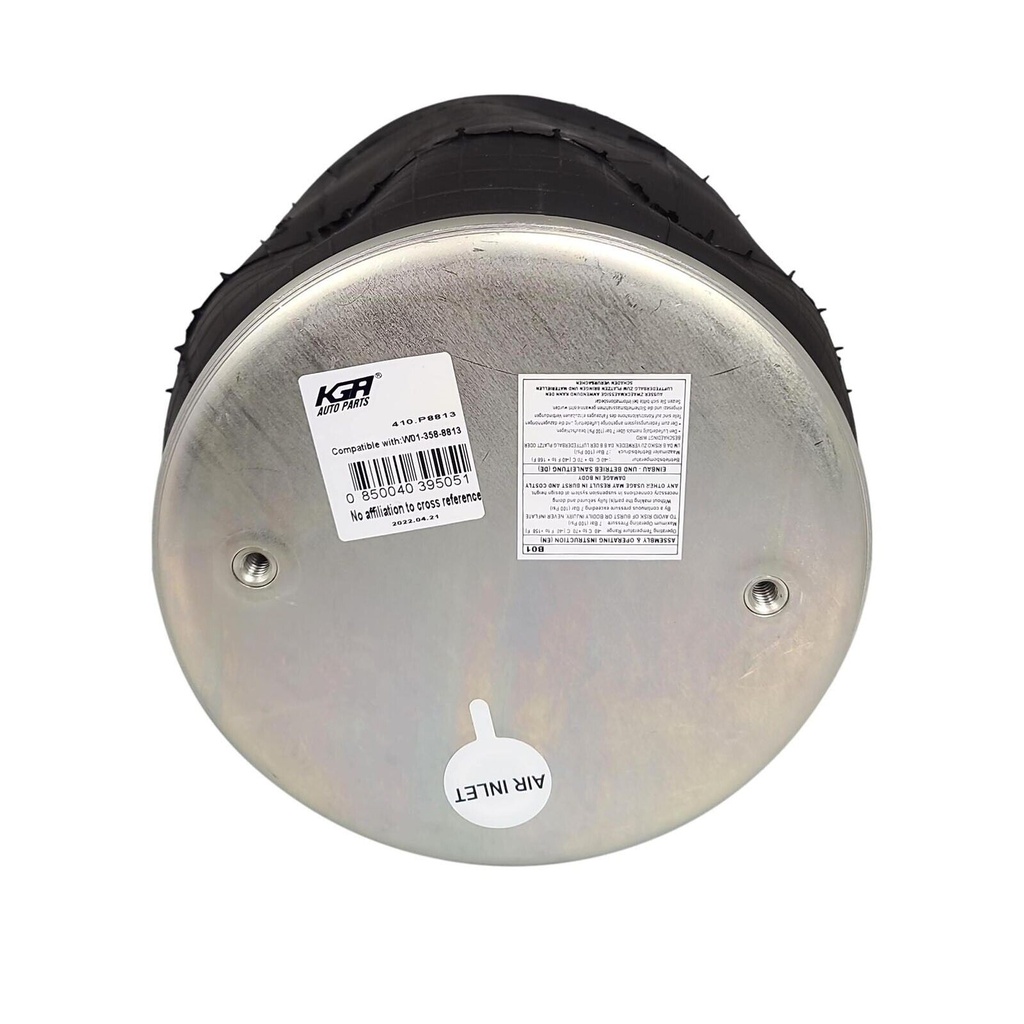

Air Spring Rolling Lobe 410.P8813 W01-358-9069 64274 C81-1012
| Brand: KGA |
| Manufacturer Part Number: 410.P8813 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK23I |
| Firestone Bellows# | 1T15M-4 |
| Goodyear Bellows# | 566-24-3-038 |
| Contitech Bellows# | 9 10-13.5 |
| Triangle Bellows# | 6362 |
| Load (Lbs) @80 PSI | 5700 |
| Load (Lbs) @100 PSI | 7200 |
| Natural Freq. (CPM) | 76 |
| Design Height (In) | 11.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 9.53 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS08128 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 7.50 |
| Max. Height | 18.80 |
| Max. Dia. | 12.60 |
Applications
| Make | Series | Additional Information |
|---|---|---|
| Peterbilt | 379 (No Year) |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 161020 | Air Spring Rolling Lobe |
| Contitech | 64274 | Air Spring Rolling Lobe |
| Contitech | 9 10-14 P 312 | Air Spring Rolling Lobe |
| Contitech | 91014P312 | Air Spring Rolling Lobe |
| Contitech | 910-14P312 | Air Spring Rolling Lobe |
| Firestone | 9069 | Air Spring Rolling Lobe |
| Firestone | W013589069 | Air Spring Rolling Lobe |
| Firestone | W01-358-9069 | Air Spring Rolling Lobe |
| Firestone | W017038808 | Air Spring Rolling Lobe |
| Firestone | W01-703-8808 | Air Spring Rolling Lobe |
| Firestone | W017038923 | Air Spring Rolling Lobe |
| Firestone | W01-703-8923 | Air Spring Rolling Lobe |
| Goodyear | 1R12069 | Air Spring Rolling Lobe |
| Goodyear | 1R12-069 | Air Spring Rolling Lobe |
| Goodyear | 1R121069 | Air Spring Rolling Lobe |
| Goodyear | 1R12-1069 | Air Spring Rolling Lobe |
| Goodyear | 1R12-676 | Air Spring Rolling Lobe |
| Hendrickson | S13031 | Air Spring Rolling Lobe |
| Hendrickson | S-13031 | Air Spring Rolling Lobe |
| IHC | 554764C1 | Air Spring Rolling Lobe |
| Loadguard | SC2034 | Air Spring Rolling Lobe |
| Neway | G2299069200 | Air Spring Rolling Lobe |
| Peterbilt | 0301649 | Air Spring Rolling Lobe |
| Peterbilt | 03-01649 | Air Spring Rolling Lobe |
| Peterbilt | 0302038 | Air Spring Rolling Lobe |
| Peterbilt | 03-02038 | Air Spring Rolling Lobe |
| Peterbilt | 0302456 | Air Spring Rolling Lobe |
| Peterbilt | 03-02456 | Air Spring Rolling Lobe |
| Peterbilt | 0304759 | Air Spring Rolling Lobe |
| Peterbilt | 03-04759 | Air Spring Rolling Lobe |
| Peterbilt | 0306746 | Air Spring Rolling Lobe |
| Peterbilt | 03-06746 | Air Spring Rolling Lobe |
| Peterbilt | 0307112 | Air Spring Rolling Lobe |
| Peterbilt | 03-07112 | Air Spring Rolling Lobe |
| Peterbilt | 0310042 | Air Spring Rolling Lobe |
| Peterbilt | 03-10042 | Air Spring Rolling Lobe |
| Peterbilt | 2310042 | Air Spring Rolling Lobe |
| Peterbilt | 23-10042 | Air Spring Rolling Lobe |
| Peterbilt | C816022 | Air Spring Rolling Lobe |
| Peterbilt | C81-6022 | Air Spring Rolling Lobe |
| Volvo/White | 85101145 | Air Spring Rolling Lobe |
| Watson&Chalin | AS0077 | Air Spring Rolling Lobe |
