Air Spring Rolling Lobe 410.P8813 W01-358-9069 64274 C81-1012

Price:

75.99

FREE STANDARD SHIPPING. FREE RETURNS

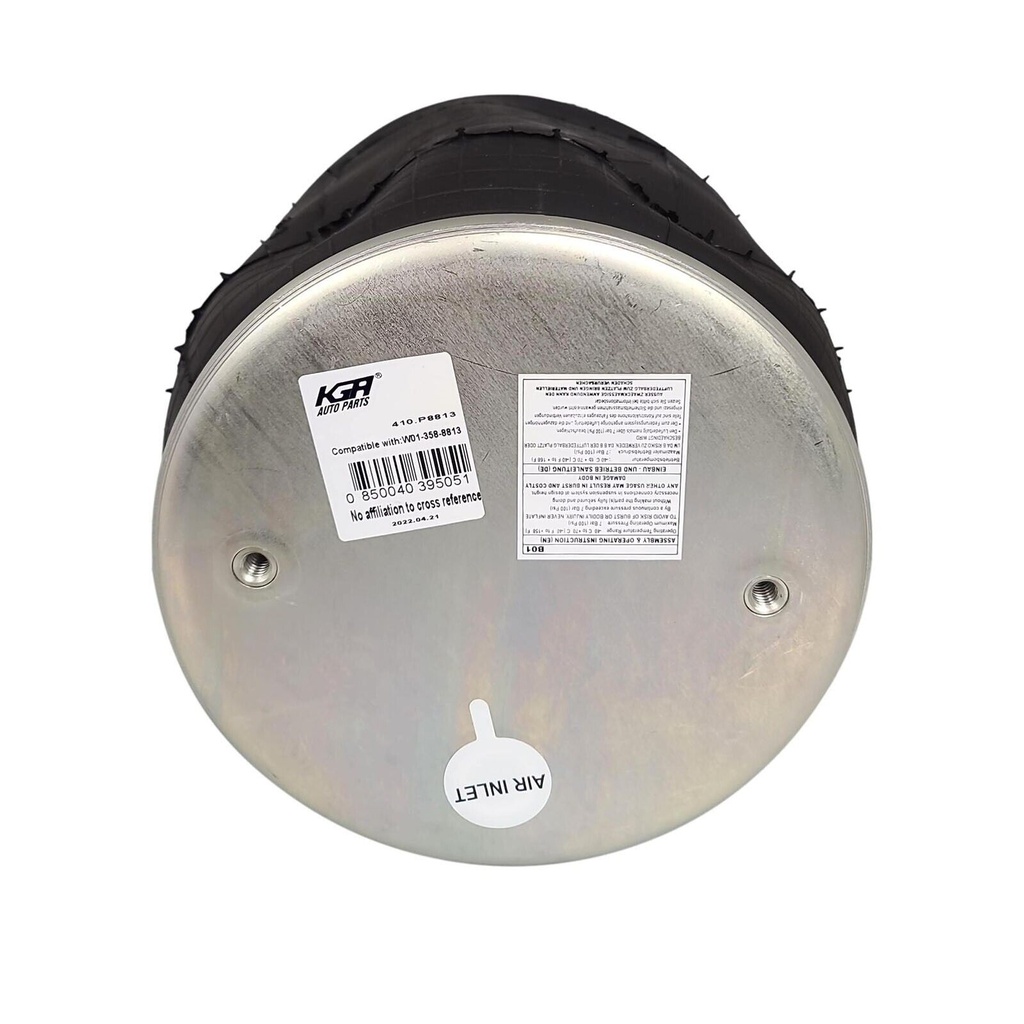

Air Spring Rolling Lobe 410.P8813 W01-358-9069 64274 C81-1012

https://www.kahgotruckparts.com/web/image/product.template/94336/image_1920?unique=27ced88
(0 review)

75.99 75.99 USD 75.99

75.99


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: KGA
Manufacturer Part Number: 410.P8813
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing


ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck



You Might Also Like these Products

Specifications

AttributeValue
TypeRolling Lobe
Automann Bellows#1DK23I
Firestone Bellows#1T15M-4
Goodyear Bellows#566-24-3-038
Contitech Bellows#9 10-13.5
Triangle Bellows#6362
Load (Lbs) @80 PSI5700
Load (Lbs) @100 PSI7200
Natural Freq. (CPM)76
Design Height (In)11.00
Bottom Plate TypePlastic
Top Plate Hole/Stud Qty3
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)6.20
Bottom Plate Hole/Stud Qty1
Bottom Plate Dia. (C)9.53
Bottom Plate C to C Dia. (D)N/A
Bottom Part #BS08128
BumperYes
BracketN/A
Min. Height7.50
Max. Height18.80
Max. Dia.12.60

Applications

MakeSeriesAdditional Information
Peterbilt379 (No Year)

Cross Reference

NamePart NumberNotes
Contitech161020Air Spring Rolling Lobe
Contitech64274Air Spring Rolling Lobe
Contitech9 10-14 P 312Air Spring Rolling Lobe
Contitech91014P312Air Spring Rolling Lobe
Contitech910-14P312Air Spring Rolling Lobe
Firestone9069Air Spring Rolling Lobe
FirestoneW013589069Air Spring Rolling Lobe
FirestoneW01-358-9069Air Spring Rolling Lobe
FirestoneW017038808Air Spring Rolling Lobe
FirestoneW01-703-8808Air Spring Rolling Lobe
FirestoneW017038923Air Spring Rolling Lobe
FirestoneW01-703-8923Air Spring Rolling Lobe
Goodyear1R12069Air Spring Rolling Lobe
Goodyear1R12-069Air Spring Rolling Lobe
Goodyear1R121069Air Spring Rolling Lobe
Goodyear1R12-1069Air Spring Rolling Lobe
Goodyear1R12-676Air Spring Rolling Lobe
HendricksonS13031Air Spring Rolling Lobe
HendricksonS-13031Air Spring Rolling Lobe
IHC554764C1Air Spring Rolling Lobe
LoadguardSC2034Air Spring Rolling Lobe
NewayG2299069200Air Spring Rolling Lobe
Peterbilt0301649Air Spring Rolling Lobe
Peterbilt03-01649Air Spring Rolling Lobe
Peterbilt0302038Air Spring Rolling Lobe
Peterbilt03-02038Air Spring Rolling Lobe
Peterbilt0302456Air Spring Rolling Lobe
Peterbilt03-02456Air Spring Rolling Lobe
Peterbilt0304759Air Spring Rolling Lobe
Peterbilt03-04759Air Spring Rolling Lobe
Peterbilt0306746Air Spring Rolling Lobe
Peterbilt03-06746Air Spring Rolling Lobe
Peterbilt0307112Air Spring Rolling Lobe
Peterbilt03-07112Air Spring Rolling Lobe
Peterbilt0310042Air Spring Rolling Lobe
Peterbilt03-10042Air Spring Rolling Lobe
Peterbilt2310042Air Spring Rolling Lobe
Peterbilt23-10042Air Spring Rolling Lobe
PeterbiltC816022Air Spring Rolling Lobe
PeterbiltC81-6022Air Spring Rolling Lobe
Volvo/White85101145Air Spring Rolling Lobe
Watson&ChalinAS0077Air Spring Rolling Lobe
