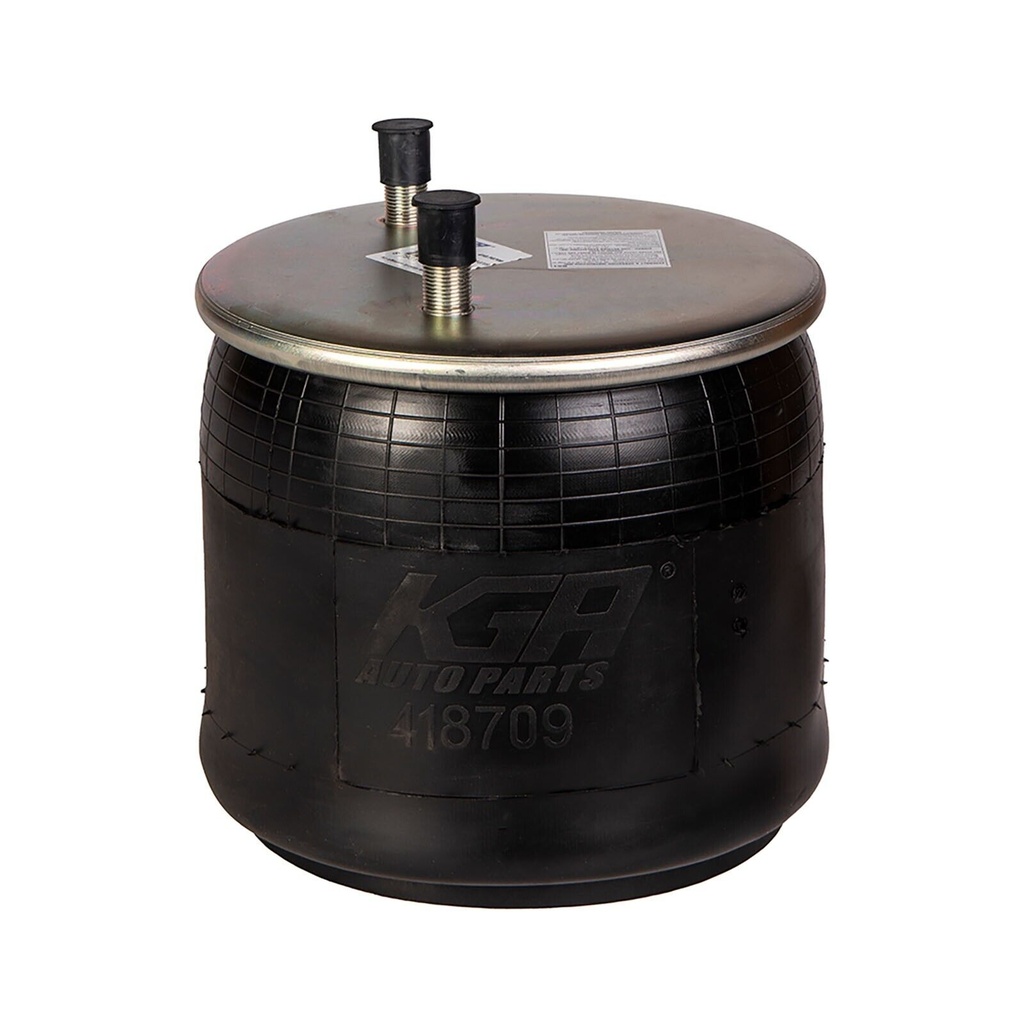

Air Spring Rolling Lobe 410.P8709 W01-358-8709 64645
| Brand: KGA |
| Manufacturer Part Number: 410.P8709 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1T17CA-5, 1T17B-5 |
| Goodyear Bellows# | 10 10.5-15 |
| Contitech Bellows# | 6390 |
| Triangle Bellows# | 9040 |
| Load (Lbs) @80 PSI | 11300 |
| Load (Lbs) @100 PSI | 84 |
| Natural Freq. (CPM) | 10.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 10.20 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | N/A |
| Bottom Plate C to C Dia. (D) | 9.17 |
| Bottom Part # | BS10704 |
| Bottom Plate Alignment | Parallel |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 4.90 |
| Max. Height | 19.30 |
| Max. Dia. | 13.90 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 1010.5-15P460 | Air Spring Rolling Lobe |
| Contitech | 64645 | Air Spring Rolling Lobe |
| Firestone | 8709 | Air Spring Rolling Lobe |
| Firestone | W013588709 | Air Spring Rolling Lobe |
| Firestone | W01-358-8709 | Air Spring Rolling Lobe |
| Goodyear | 1R13159 | Air Spring Rolling Lobe |
| Goodyear | 1R13-159 | Air Spring Rolling Lobe |
| Goodyear | 1R13262 | Air Spring Rolling Lobe |
| Goodyear | 1R13-262 | Air Spring Rolling Lobe |
| Goodyear | 1R13362 | Air Spring Rolling Lobe |
| Goodyear | 1R13-362 | Air Spring Rolling Lobe |
| Hendrickson Trailer | C21800 | Air Spring Rolling Lobe |
| Hendrickson Trailer | C-21800 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S20900 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S-20900 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S21800 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S-21800 | Air Spring Rolling Lobe |
| IHC | 1R13-249 | Air Spring Rolling Lobe |
| Neway | G2298709200 | Air Spring Rolling Lobe |
