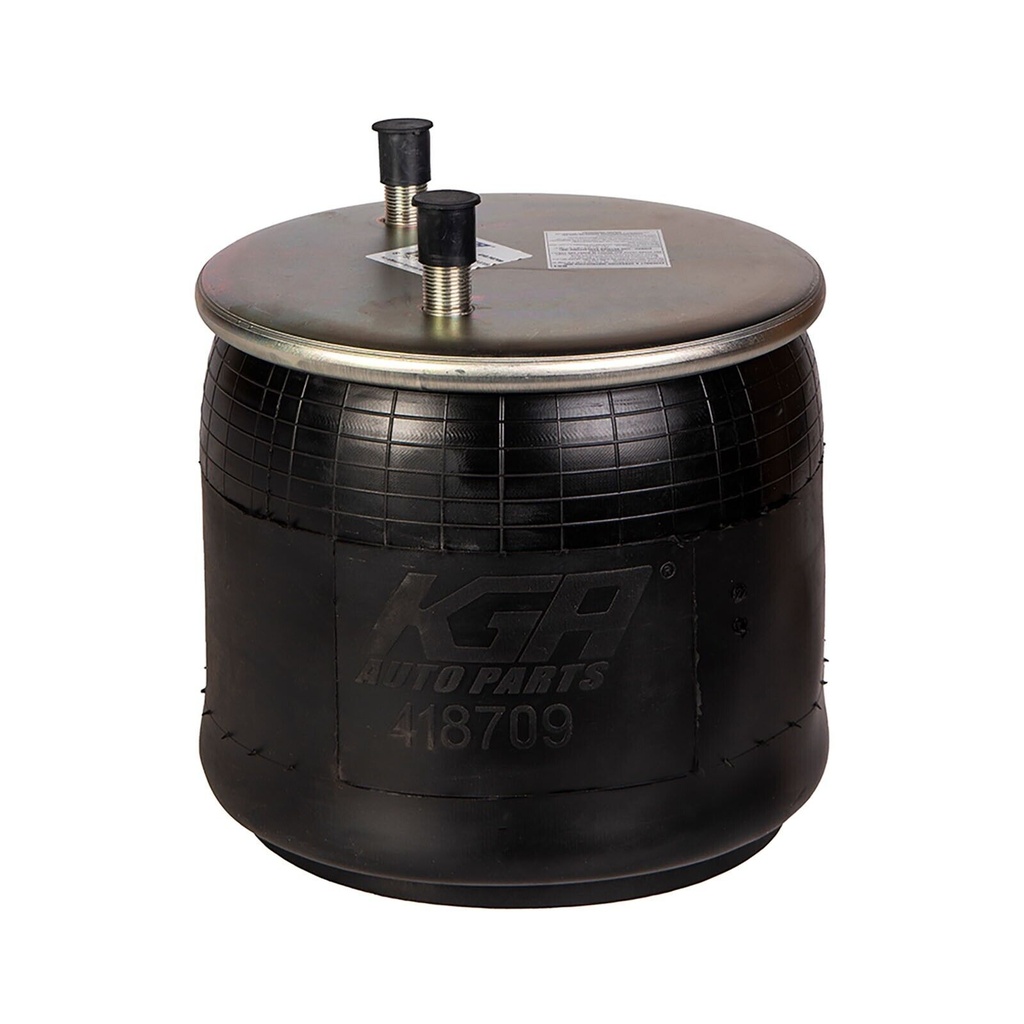

Air Spring Rolling Lobe 410.P8709 W01-358-8709 64645

Price:

75.59

FREE STANDARD SHIPPING. FREE RETURNS

Air Spring Rolling Lobe 410.P8709 W01-358-8709 64645

https://kahgogroup.odoo.com/web/image/product.template/94307/image_1920?unique=f9ac0bd
(0 review)

75.59 75.59 USD 75.59

75.59


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: KGA
Manufacturer Part Number: 410.P8709
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing


ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck



You Might Also Like these Products


Specifications

AttributeValue
TypeRolling Lobe
Automann Bellows#1T17CA-5, 1T17B-5
Goodyear Bellows#10 10.5-15
Contitech Bellows#6390
Triangle Bellows#9040
Load (Lbs) @80 PSI11300
Load (Lbs) @100 PSI84
Natural Freq. (CPM)10.00
Bottom Plate TypePlastic
Top Plate Hole/Stud Qty2
Top Plate Dia. (A)10.20
Top Plate C to C Dia. (B)5.50
Bottom Plate Hole/Stud Qty1
Bottom Plate Dia. (C)N/A
Bottom Plate C to C Dia. (D)9.17
Bottom Part #BS10704
Bottom Plate AlignmentParallel
BumperYes
BracketN/A
Min. Height4.90
Max. Height19.30
Max. Dia.13.90


Cross Reference

NamePart NumberNotes
Contitech1010.5-15P460Air Spring Rolling Lobe
Contitech64645Air Spring Rolling Lobe
Firestone8709Air Spring Rolling Lobe
FirestoneW013588709Air Spring Rolling Lobe
FirestoneW01-358-8709Air Spring Rolling Lobe
Goodyear1R13159Air Spring Rolling Lobe
Goodyear1R13-159Air Spring Rolling Lobe
Goodyear1R13262Air Spring Rolling Lobe
Goodyear1R13-262Air Spring Rolling Lobe
Goodyear1R13362Air Spring Rolling Lobe
Goodyear1R13-362Air Spring Rolling Lobe
Hendrickson TrailerC21800Air Spring Rolling Lobe
Hendrickson TrailerC-21800Air Spring Rolling Lobe
Hendrickson TrailerS20900Air Spring Rolling Lobe
Hendrickson TrailerS-20900Air Spring Rolling Lobe
Hendrickson TrailerS21800Air Spring Rolling Lobe
Hendrickson TrailerS-21800Air Spring Rolling Lobe
IHC1R13-249Air Spring Rolling Lobe
NewayG2298709200Air Spring Rolling Lobe
