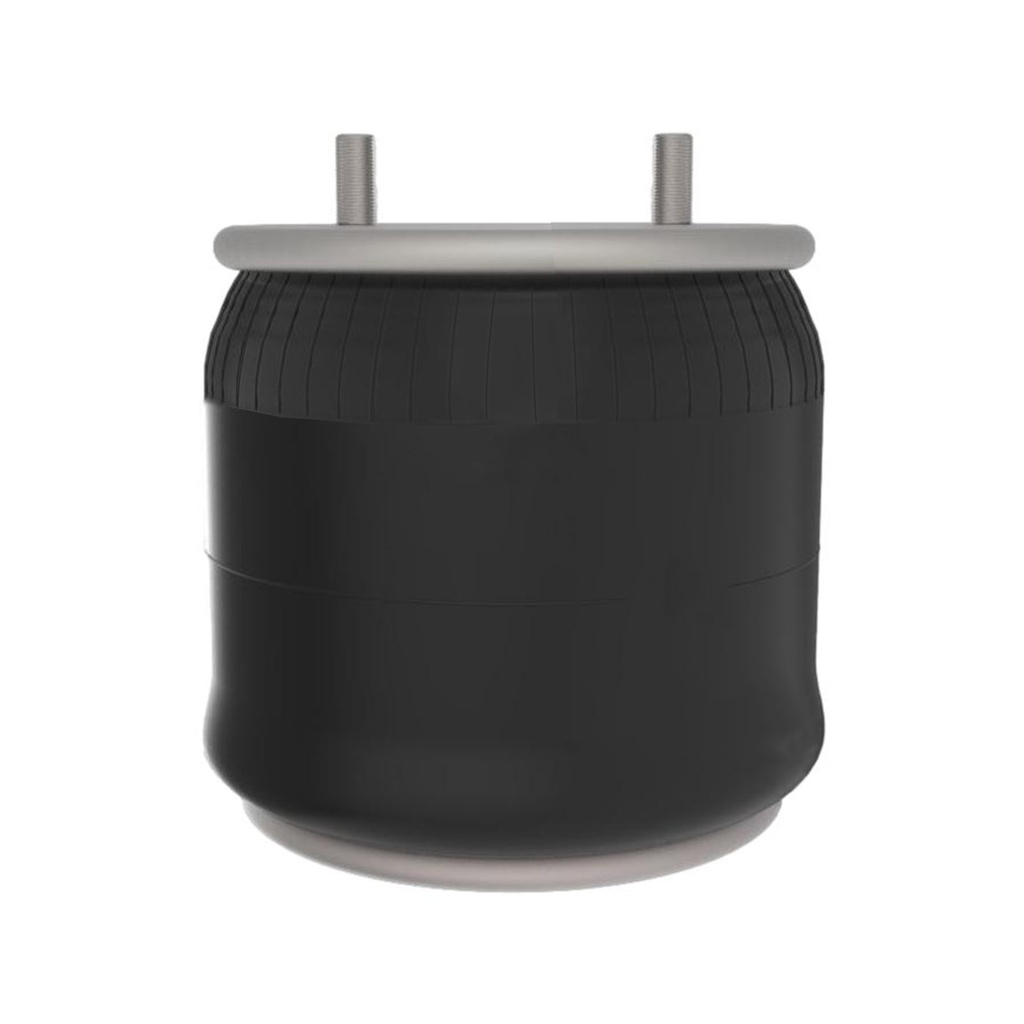

Air Spring Rolling Lobe  AB1DK25B-8782   1R13-109




Air Spring Rolling Lobe AB1DK25B-8782 1R13-109
(0 review)

170.09 170.09 USD 170.09


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: AB1DK25B-8782
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck


Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK25BFirestone Bellows#1T17B-5Goodyear Bellows#566-26-3-050Contitech Bellows#10 10-15Load (Lbs) @80 PSI6760Load (Lbs) @100 PSI8450Natural Freq. (CPM)75Design Height (In)10.00Bottom Plate Type SteelTop Plate Hole/Stud Qty2Top Plate Dia. (A)10.20Top Plate C to C Dia. (B)6.20Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)9.49Bottom Plate C to C Dia. (D)7.87Bottom #BS11827BumperYesBracketN/AMin. Height5.40Max. Height17.70Max. Dia.13.70Cross Reference Name Number Notes Contitech66340Air Spring Rolling LobeFirestone8782Air Spring Rolling LobeGoodyear1R13109Air Spring Rolling LobeGoodyear1R13-109Air Spring Rolling LobeRidewell1001R13109GAir Spring Rolling Lobe
