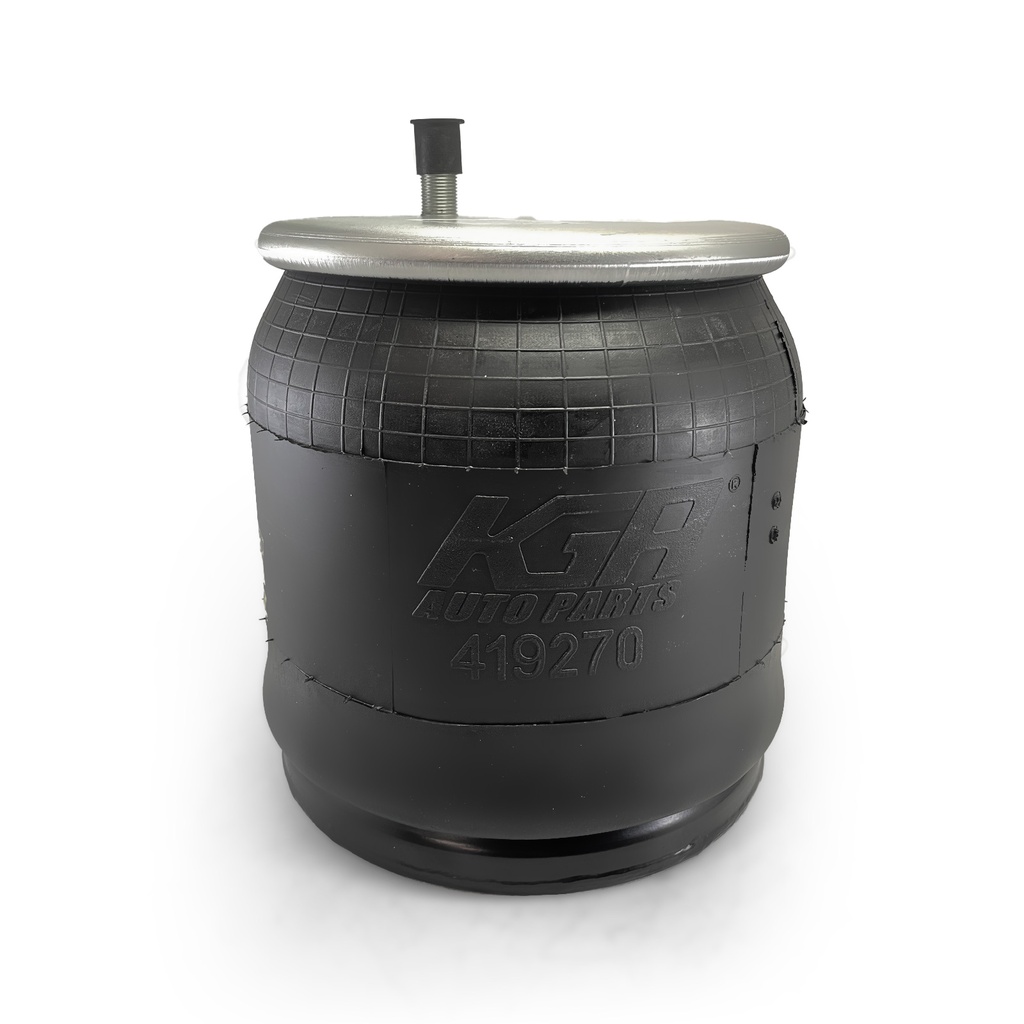

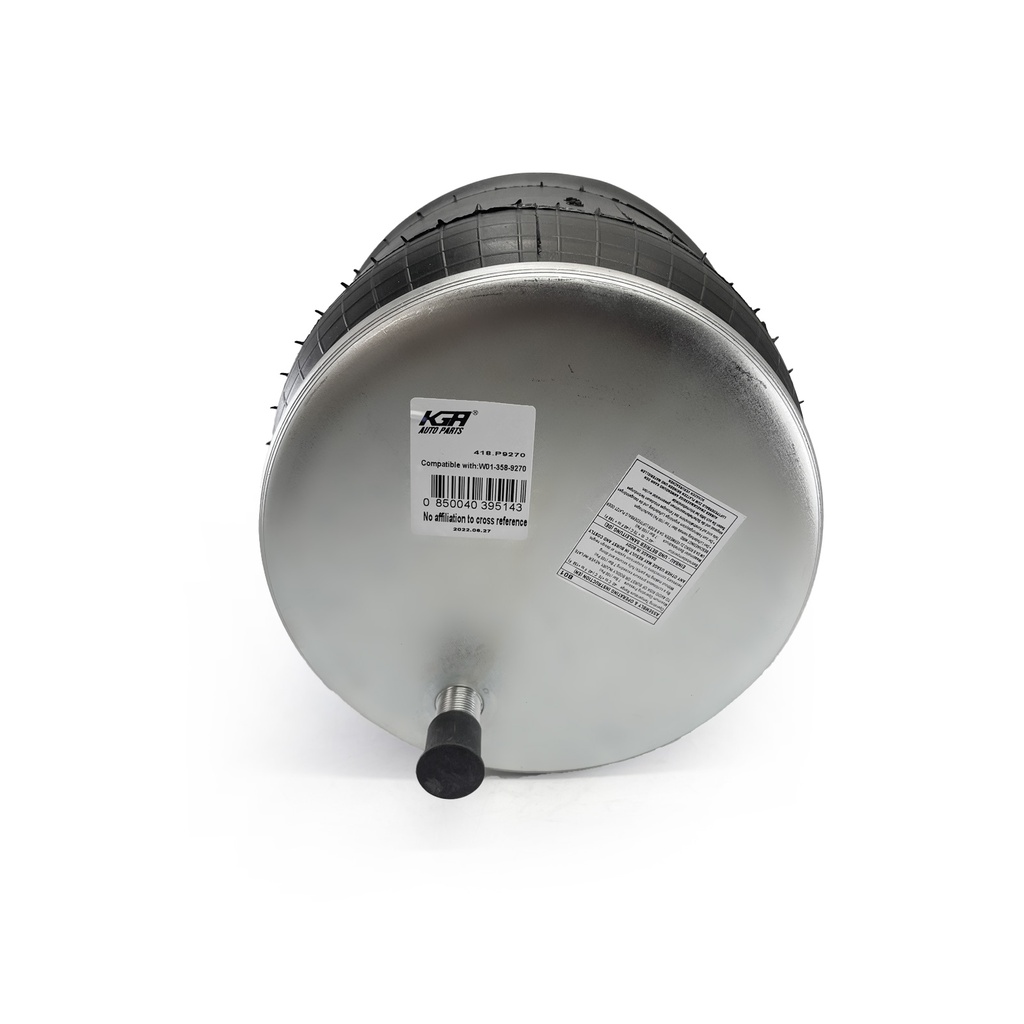

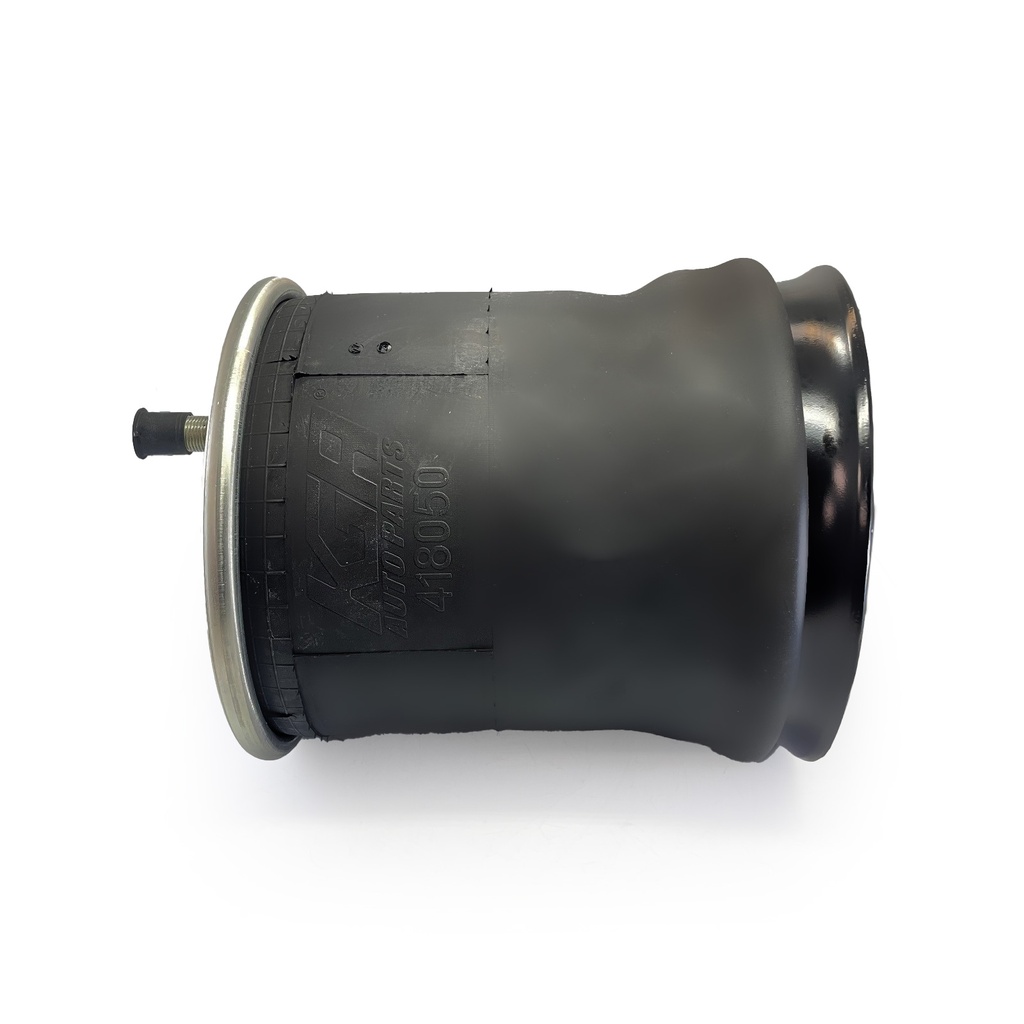

Air Spring Rolling Lobe 410.M9270 W01-358-9270 64287 85101147
| Brand: KGA |
| Cross Reference 1: C20010 C-20010 C25559 S20010 S-20010 S25559 |
| Cross Reference 2: S2299270300 1003589270C 3946473 85101147 AS0084 AS-0084 |
| Manufacturer Part Number: 410.M9270 |
| OE/OEM Part Number: M-3542 161034 64287 9 10-13.5 S 433 9270 W013589270 |
| Other OEM Part Number: W01-358-9270 1R13077 1R13-077 1R13102 1R13-102 1R13119 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK23I |
| Firestone Bellows# | 1T15VP-4 |
| Goodyear Bellows# | 566-26-3-053 |
| Contitech Bellows# | 9 10-13.5 |
| Triangle Bellows# | 6300 |
| Load (Lbs) @80 PSI | 7900 |
| Load (Lbs) @100 PSI | 89 |
| Natural Freq. (CPM) | 9.00 |
| Bottom Plate Type | Steel |
| Top Plate Hole/Stud Qty | 1 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | N/A |

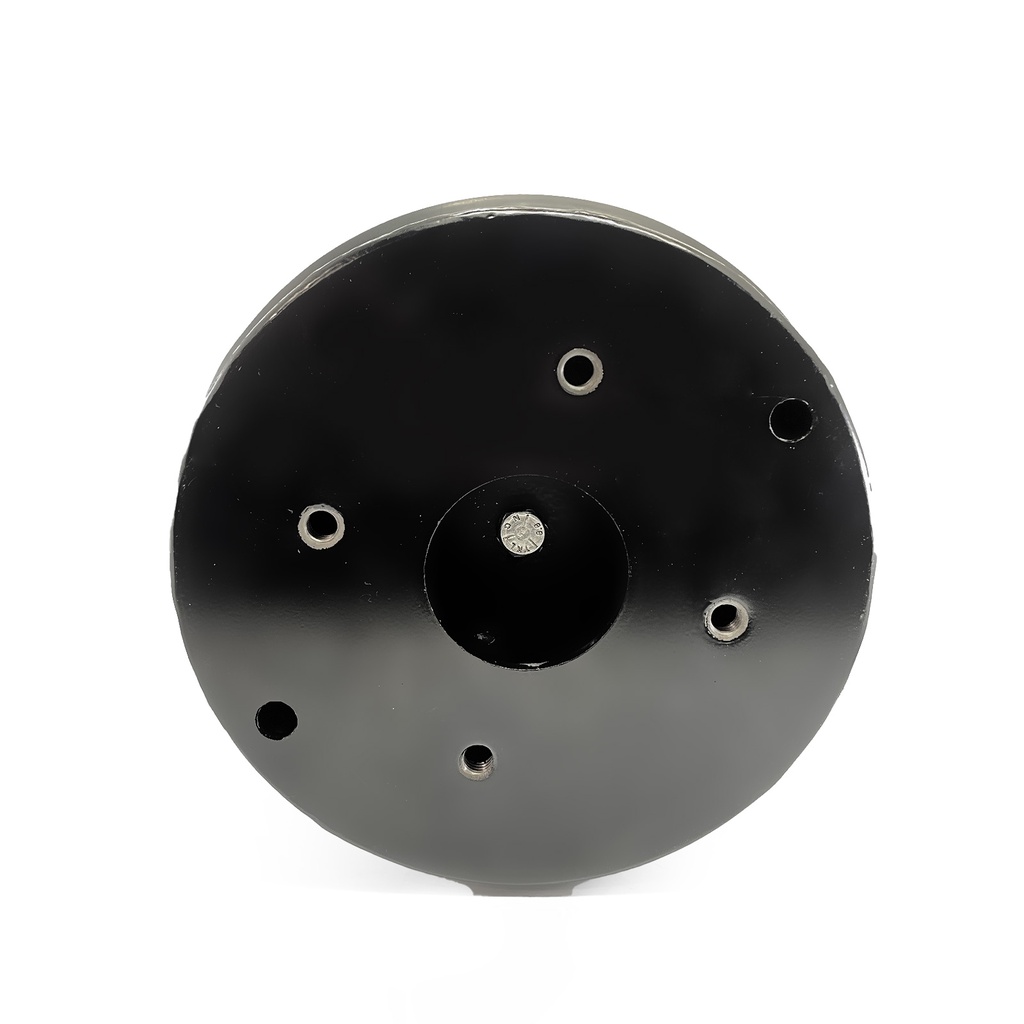

| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 5.67 |
| Bottom Plate C to C Dia. (D) | 5.67 |
| Bottom Part # | BS09758 |
| Bottom Plate Alignment | 90 DEG |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 5.40 |
| Max. Height | 16.80 |
| Max. Dia. | 12.60 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| BWP | M-3542 | Air Spring Rolling Lobe |
| Contitech | 161034 | Air Spring Rolling Lobe |
| Contitech | 64287 | Air Spring Rolling Lobe |
| Contitech | 9 10-13.5 S 433 | Air Spring Rolling Lobe |
| Firestone | 9270 | Air Spring Rolling Lobe |
| Firestone | W013589270 | Air Spring Rolling Lobe |
| Firestone | W01-358-9270 | Air Spring Rolling Lobe |
| Goodyear | 1R13077 | Air Spring Rolling Lobe |
| Goodyear | 1R13-077 | Air Spring Rolling Lobe |
| Goodyear | 1R13102 | Air Spring Rolling Lobe |
| Goodyear | 1R13-102 | Air Spring Rolling Lobe |
| Goodyear | 1R13119 | Air Spring Rolling Lobe |
| Goodyear | 1R13-119 | Air Spring Rolling Lobe |
| Hendrickson | C20010 | Air Spring Rolling Lobe |
| Hendrickson | C-20010 | Air Spring Rolling Lobe |
| Hendrickson | C25559 | Air Spring Rolling Lobe |
| Hendrickson | C-25559 | Air Spring Rolling Lobe |
| Hendrickson | S20010 | Air Spring Rolling Lobe |
| Hendrickson | S-20010 | Air Spring Rolling Lobe |
| Hendrickson | S25559 | Air Spring Rolling Lobe |
| Hendrickson | S-25559 | Air Spring Rolling Lobe |
| Neway | G2299270300 | Air Spring Rolling Lobe |
| Ridewell | 1003589270C | Air Spring Rolling Lobe |
| Volvo/White | 3946473 | Air Spring Rolling Lobe |
| Volvo/White | 85101147 | Air Spring Rolling Lobe |
| Watson&Chalin | AS0084 | Air Spring Rolling Lobe |
| Watson&Chalin | AS-0084 | Air Spring Rolling Lobe |
