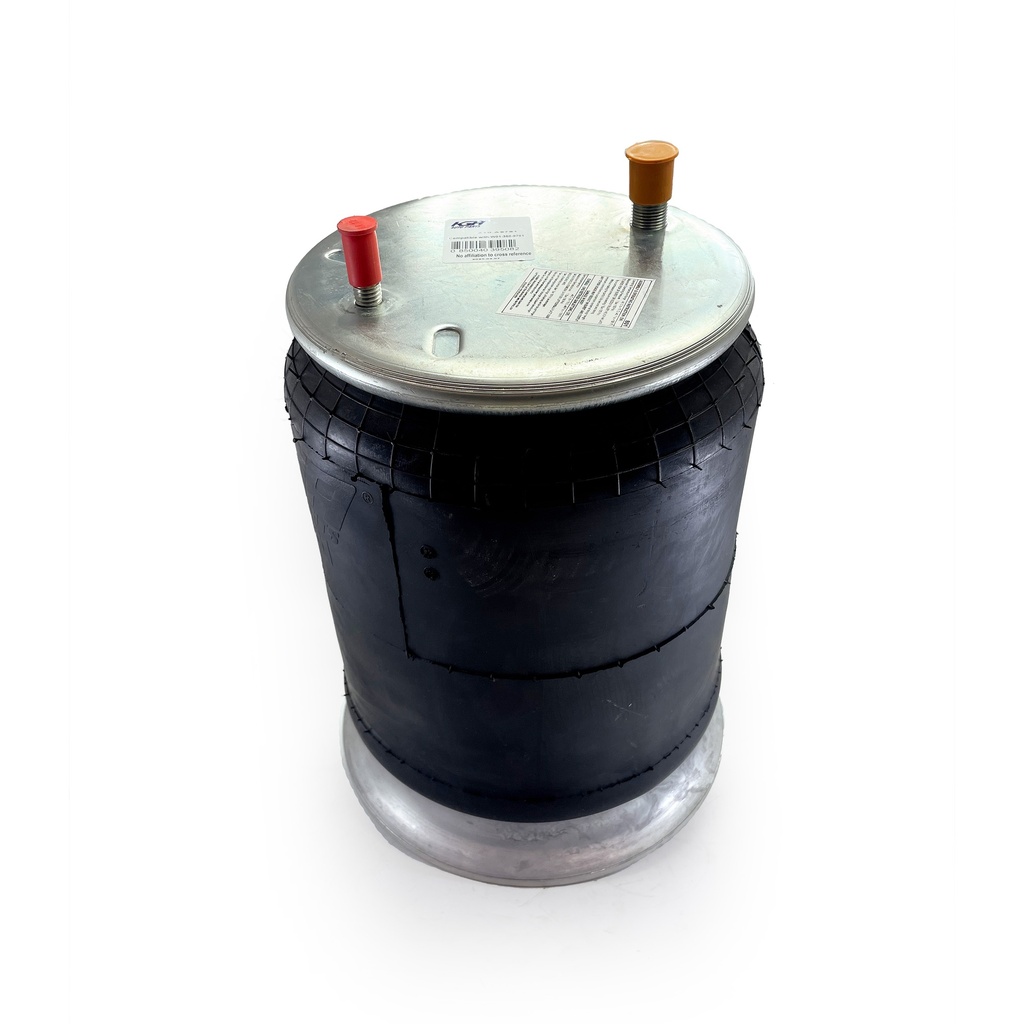

Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1DF23 |
| Firestone Bellows# | 1T15ZR-6 |
| Goodyear Bellows# | 566-24-3-275, 566-24-3-108 |
| Contitech Bellows# | 9 10S-16 |
| Triangle Bellows# | 6363 |
| Load (Lbs) @80 PSI | 6100 |
| Load (Lbs) @100 PSI | 7700 |
| Natural Freq. (CPM) | 76 |
| Design Height (In) | 12.50 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.63 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS10947 |
| Bumper | No |
| Bracket | N/A |
| Min. Height | 8.60 |
| Max. Height | 23.00 |
| Max. Dia. | 12.60 |
Where Used
This item is featured in the following schematics:
| Name | Type |
|---|---|
| Freightliner Rear Fas Airliner lI (Freightliner & Sterling) (Revised) | Suspension |
Applications
There is no application data for this product.
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 161007 | Air Spring Rolling Lobe |
| Contitech | 64266 | Air Spring Rolling Lobe |
| Contitech | 9 10S-16 A 382 | Air Spring Rolling Lobe |
| Firestone | 16-17575-000 | Air Spring Rolling Lobe |
| Firestone | 9781 | Air Spring Rolling Lobe |
| Firestone | W013589781 | Air Spring Rolling Lobe |
| Firestone | W01-358-9781 | Air Spring Rolling Lobe |
| Firestone | W013778527 | Air Spring Rolling Lobe |
| Firestone | W01-377-8527 | Air Spring Rolling Lobe |
| Firestone | W013778529 | Air Spring Rolling Lobe |
| Firestone | W01-377-8529 | Air Spring Rolling Lobe |
| Firestone | W013778536 | Air Spring Rolling Lobe |
| Firestone | W01-377-8536 | Air Spring Rolling Lobe |
| Firestone | W013779781 | Air Spring Rolling Lobe |
| Firestone | W01-377-9781 | Air Spring Rolling Lobe |
| Firestone | W013779783 | Air Spring Rolling Lobe |
| Firestone | W01-377-9783 | Air Spring Rolling Lobe |
| Freightliner | 1613840000 | Air Spring Rolling Lobe |
| Freightliner | 16-13840-000 | Air Spring Rolling Lobe |
| Freightliner | 1614004000 | Air Spring Rolling Lobe |
| Freightliner | 16-14004-000 | Air Spring Rolling Lobe |
| Freightliner | 1617575000 | Air Spring Rolling Lobe |
| Freightliner | 1619466000 | Air Spring Rolling Lobe |
| Freightliner | 16-19466-000 | Air Spring Rolling Lobe |
| Freightliner | 6813200017 | Air Spring Rolling Lobe |
| Freightliner | 681-3200-017 | Air Spring Rolling Lobe |
| Freightliner | 681-320-0017 | Air Spring Rolling Lobe |
| Freightliner | A1614004000 | Air Spring Rolling Lobe |
| Freightliner | A16-14004-000 | Air Spring Rolling Lobe |
| Freightliner | A1614004001 | Air Spring Rolling Lobe |
| Freightliner | A16-14004-001 | Air Spring Rolling Lobe |
| Freightliner | A1615443000 | Air Spring Rolling Lobe |
| Goodyear | 1R121082 | Air Spring Rolling Lobe |
| Goodyear | 1R12-1082 | Air Spring Rolling Lobe |
| Goodyear | 1R12603 | Air Spring Rolling Lobe |
| Goodyear | 1R12-603 | Air Spring Rolling Lobe |
| Hendrickson | 8536 | Air Spring Rolling Lobe |
| Loadguard | SC2750 | Air Spring Rolling Lobe |
| Volvo | 85101151 | Air Spring Rolling Lobe |
