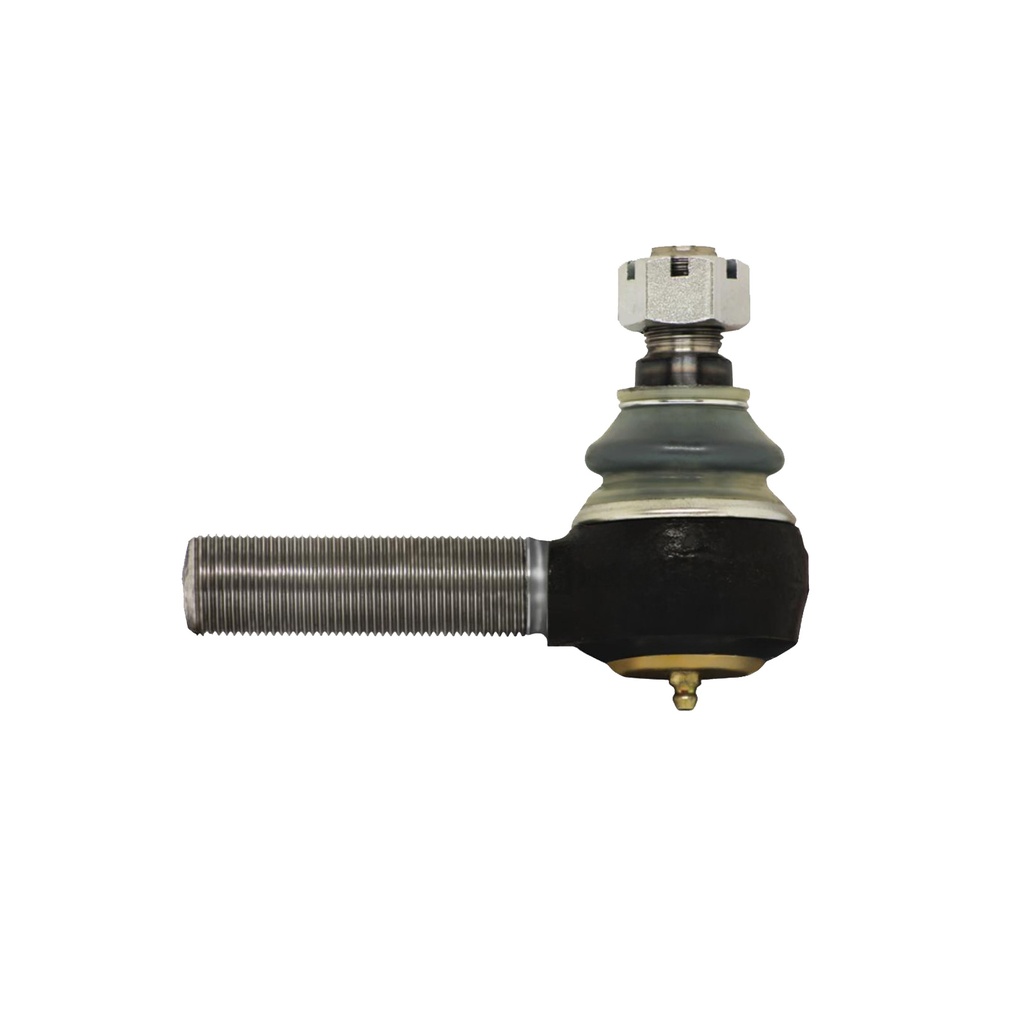

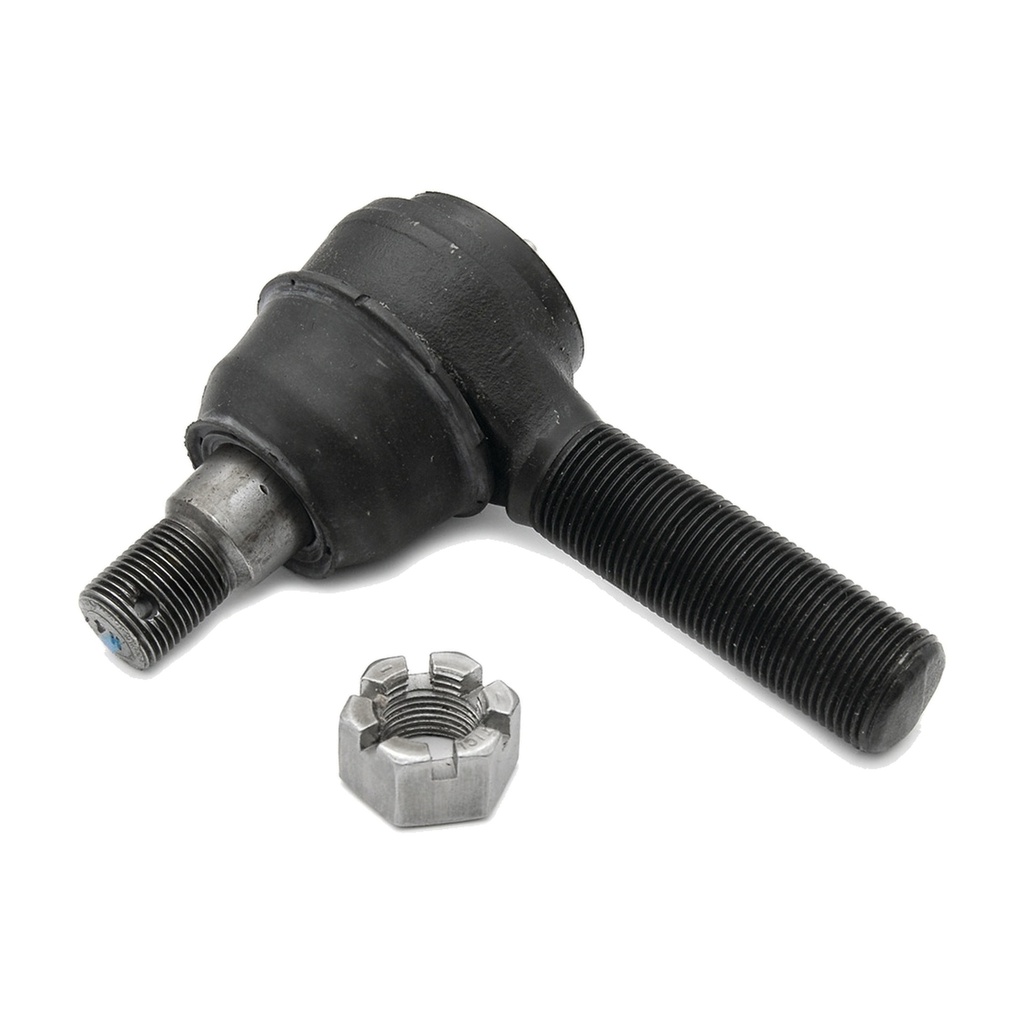

Tie Rod End Chevrolet/GM RH KGA-12548108 462.ES3275R ES3275R 12548108 R230142
| Brand: KGA |
| Manufacturer Part Number: KGA-12548108 |
| Cross Reference: L24SV8003B13, L24SV8003G12 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck

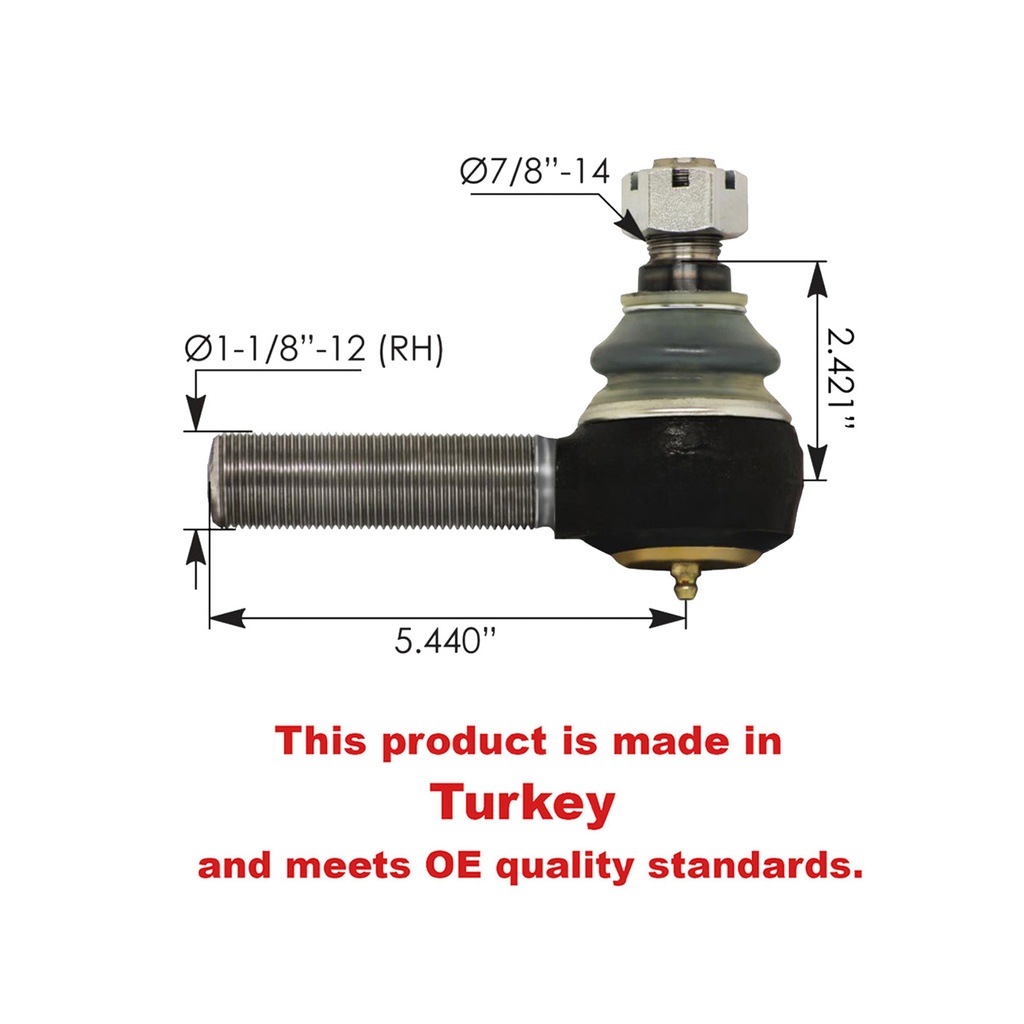

| Attribute | Value |
|---|---|
| Applications | Chevrolet/GM |
| Rod OD (A) | 1-1/8” |
| Type | 1 |
| Thread Pitch & Direction | 12 (RH) |
| Center to End (B) | 5.440” |
| Height of Taper (C) | 2.421” |
| Taper Minor Dia. (D) | 1.038” |
| Taper Major Dia. (E) | 1.181” |
| Taper Length (F) | 1.140” |
| Stud Thread (G) | 7/8”-14 |
| Drop (H) | N/A |
| Name | Part Number | Notes |
|---|---|---|
| Chevrolet/Gm | 12548108 | Tie Rod End |
| Meritor | R230142 | Tie Rod End |
| Trw | ES3275R | Tie Rod End |
| Trw | L24SV8003B13 | Tie Rod End |
| Trw | L24SV8003G12 | Tie Rod End |
