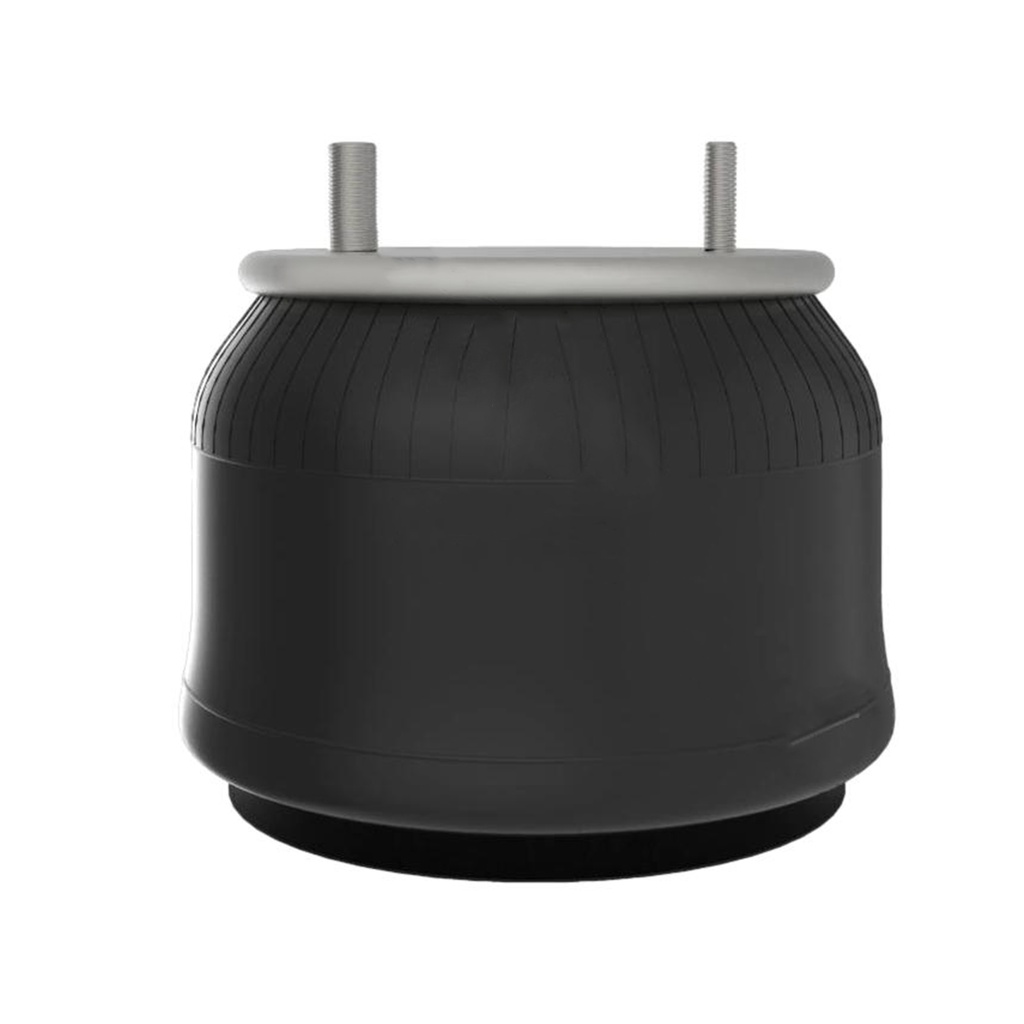

Air Spring Rolling Lobe AB1DK23F-9308 9308 1R12-560 64436 90557089 1736001
| Brand: Automann |
| Cross Reference 1: 9308 1R12-560 64436 90557089 1736001 |
| Cross Reference 2: 910-10P398 9314 W013589308 W01-358-9308 |
| Cross Reference 3: W013589314 W01-358-9314 1R12560 17360-01 1003589308C |
| Manufacturer Part Number: AB1DK23F-9308 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1DK23F |
| Goodyear Bellows# | 566-24-3-067 |
| Contitech Bellows# | 9 10-10 |
| Triangle Bellows# | 6360 |
| Load (Lbs) @80 PSI | 5700 |
| Load (Lbs) @100 PSI | 7200 |
| Natural Freq. (CPM) | 81 |
| Design Height (In) | 7.50 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 9.53 |
| Bottom Plate C to C Dia. (D) | 4.12" |
| Bottom Part # | BS08625 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 5.10 |
| Max. Height | 12.90 |
| Max. Dia. | 12.60 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 64436 | Air Spring Rolling Lobe |
| Contitech | 910-10P398 | Air Spring Rolling Lobe |
| Firestone | 9308 | Air Spring Rolling Lobe |
| Firestone | 9314 | Air Spring Rolling Lobe |
| Firestone | W013589308 | Air Spring Rolling Lobe |
| Firestone | W01-358-9308 | Air Spring Rolling Lobe |
| Firestone | W013589314 | Air Spring Rolling Lobe |
| Firestone | W01-358-9314 | Air Spring Rolling Lobe |
| Goodyear | 1R12560 | Air Spring Rolling Lobe |
| Goodyear | 1R12-560 | Air Spring Rolling Lobe |
| Neway | 90557089 | Air Spring Rolling Lobe |
| Reyco | 1736001 | Air Spring Rolling Lobe |
| Reyco | 17360-01 | Air Spring Rolling Lobe |
| Ridewell | 1003589308C | Air Spring Rolling Lobe |
