Air Spring Rolling Lobe AB1DK23F-9308 9308 1R12-560 64436 90557089 1736001

Price:

$ 157.29
FREE STANDARD SHIPPING. FREE RETURNS
  2. Shop
  3. AFTER MARKET PARTS
  4. Air Spring Rolling Lobe AB1DK23F-9308 9308 1R12-560 64436 90557089 1736001
  5. AFTER MARKET PARTS

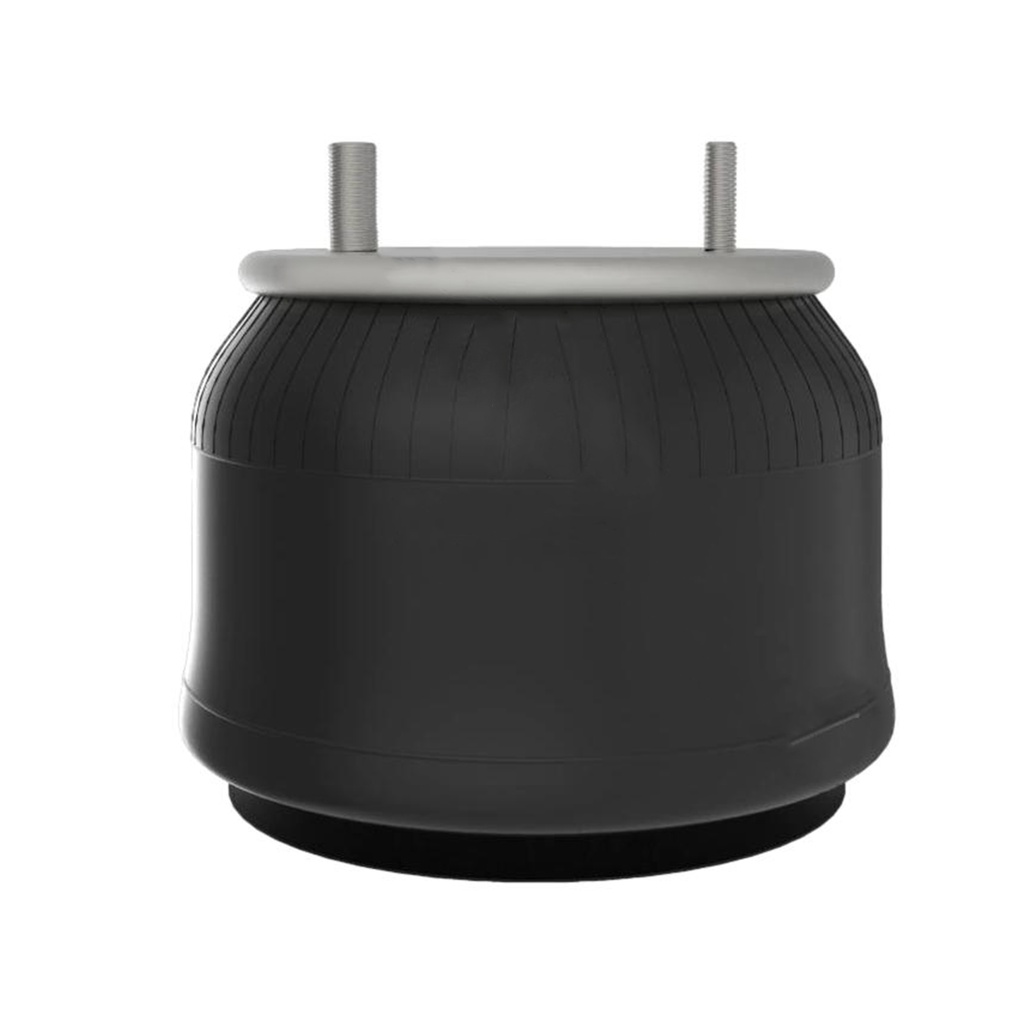

Air Spring Rolling Lobe AB1DK23F-9308 9308 1R12-560 64436 90557089 1736001

Air Spring Rolling Lobe AB1DK23F-9308 9308 1R12-560 64436 90557089 1736001

(0 review)
$ 157.29 $ 157.29

  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Manufacturer Part Number
  We also offer Overnight Shipping option call us at 818-614-9207 for pricing.

FREE 30 DAY RETURN

FREE SHIPPING

ORDERS SHIPPED NEXT DAY
Brand Automann
Cross Reference 1 9308 1R12-560 64436 90557089 1736001
Cross Reference 2 910-10P398 9314 W013589308 W01-358-9308
Cross Reference 3 W013589314 W01-358-9314 1R12560 17360-01 1003589308C
Manufacturer Part Number AB1DK23F-9308
Contact Us
Brand: Automann
Cross Reference 1: 9308 1R12-560 64436 90557089 1736001
Cross Reference 2: 910-10P398 9314 W013589308 W01-358-9308
Cross Reference 3: W013589314 W01-358-9314 1R12560 17360-01 1003589308C
Manufacturer Part Number: AB1DK23F-9308

Specifications

AttributeValue
TypeRolling Lobe
BrandAutomann Phoenix
Automann Bellows#1DK23F
Goodyear Bellows#566-24-3-067
Contitech Bellows#9 10-10
Triangle Bellows#6360
Load (Lbs) @80 PSI5700
Load (Lbs) @100 PSI7200
Natural Freq. (CPM)81
Design Height (In)7.50
Bottom Plate TypePlastic
Top Plate Hole/Stud Qty2
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)5.50
Bottom Plate Hole/Stud Qty2
Bottom Plate Dia. (C)9.53
Bottom Plate C to C Dia. (D)4.12"
Bottom Part #BS08625
BumperYes
BracketN/A
Min. Height5.10
Max. Height12.90
Max. Dia.12.60


Cross Reference

NamePart NumberNotes
Contitech64436Air Spring Rolling Lobe
Contitech910-10P398Air Spring Rolling Lobe
Firestone9308Air Spring Rolling Lobe
Firestone9314Air Spring Rolling Lobe
FirestoneW013589308Air Spring Rolling Lobe
FirestoneW01-358-9308Air Spring Rolling Lobe
FirestoneW013589314Air Spring Rolling Lobe
FirestoneW01-358-9314Air Spring Rolling Lobe
Goodyear1R12560Air Spring Rolling Lobe
Goodyear1R12-560Air Spring Rolling Lobe
Neway90557089Air Spring Rolling Lobe
Reyco1736001Air Spring Rolling Lobe
Reyco17360-01Air Spring Rolling Lobe
Ridewell1003589308CAir Spring Rolling Lobe
