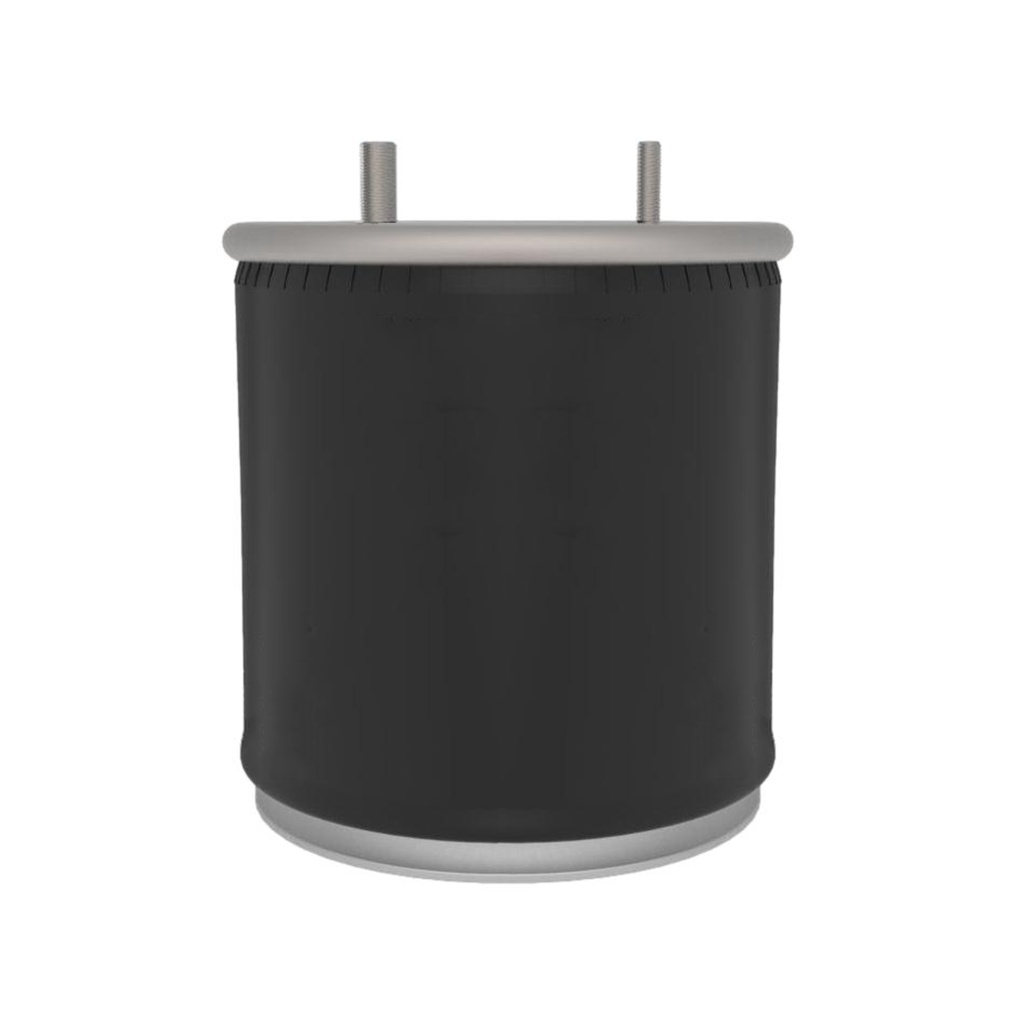

Air Spring Rolling Lobe  AB1DK28B-8781   8781




Air Spring Rolling Lobe AB1DK28B-8781 8781
(0 review)

217.34 217.34 USD 217.34


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: AB1DK28B-8781
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck


Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK28BFirestone Bellows#1T19L-9Contitech Bellows#11 10.5-19Load (Lbs) @80 PSI6900Load (Lbs) @100 PSI8800Natural Freq. (CPM)68Design Height (In)16.50Bottom Plate Type AluminumTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)10.24Bottom Plate C to C Dia. (D)7.87Bottom #BS05215Bottom Plate Alignment28 DegreeBumperYesBracketN/AMin. Height8.50Max. Height25.10Max. Dia.13.70Cross Reference Name Number Notes Firestone8781Air Spring Rolling LobeNeway90557205Air Spring Rolling Lobe
