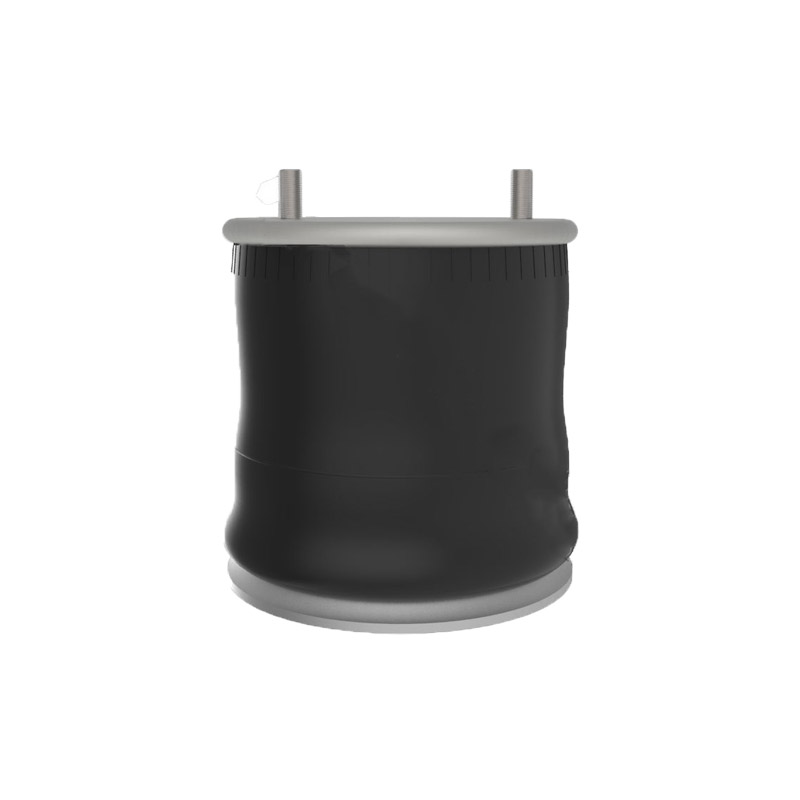

Air Spring Rolling Lobe   AB1DK28A-A706    1R14-198




Air Spring Rolling Lobe AB1DK28A-A706 1R14-198
(0 review)

236.24 236.24 USD 236.24


  • Brand
  • Manufacturer Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: AB1DK28A-A706
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck


Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK28AGoodyear Bellows#566-28-3-015Contitech Bellows#11 10.5C-16Load (Lbs) @80 PSI8200Load (Lbs) @100 PSI10400Natural Freq. (CPM)82Design Height (In)10.00Bottom Plate Type AluminumTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)7.75Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)11.50Bottom Plate C to C Dia. (D)7.87Bottom #BS14352BumperNoBracketN/AMin. Height6.30Max. Height18.40Max. Dia.14.70Cross Reference Name Number Notes Goodyear1R14198Air Spring Rolling LobeGoodyear1R14-198Air Spring Rolling LobeWatson&ChalinAS0180Air Spring Rolling Lobe
