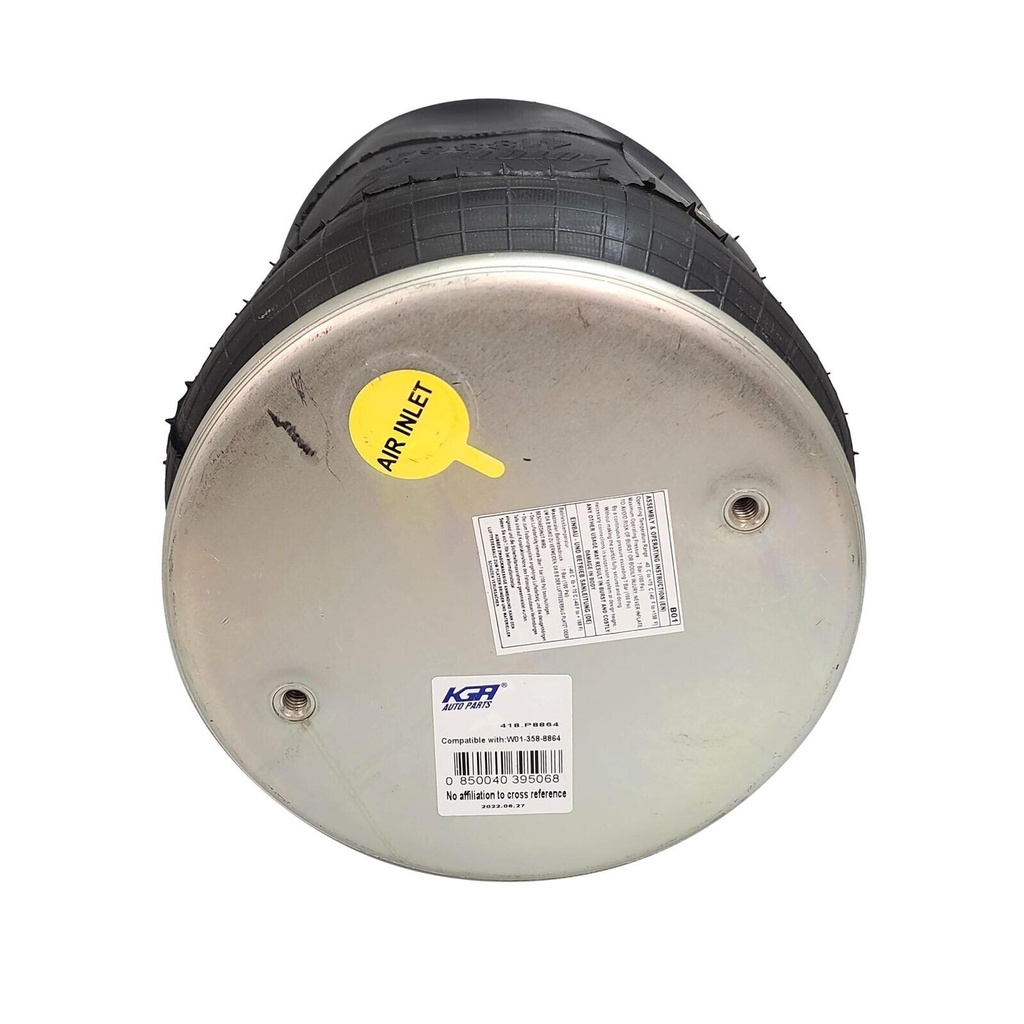

Air Spring Rolling Lobe 410.P8864 W01-358-8864 66666 C81-1013 03-08716

Price:

75.99

FREE STANDARD SHIPPING. FREE RETURNS

Air Spring Rolling Lobe 410.P8864 W01-358-8864 66666 C81-1013 03-08716

https://kahgogroup.odoo.com/web/image/product.template/94332/image_1920?unique=7ad606c
(0 review)

75.99 75.99 USD 75.99

75.99


  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Manufacturer Part Number
  • Cross Reference

This combination does not exist.

Brand: KGA
Cross Reference 1: W016875470 W01-687-5470 W017038863 W01-703-8863 W017038864
Cross Reference 2: W01-703-8864 W017038865 W01-703-8865 1R121097 1R12-1097
Cross Reference 3: C811011 C81-1011 C811013 C81-1013 0308716 03-08716 308716
Manufacturer Part Number: 410.P8864
Cross Reference: 66666 9 10-19 p 898 8864 8865 W013588864 W01-358-8864
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing


ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck




Specifications

AttributeValue
TypeRolling Lobe
Automann Bellows#1T15M-9
Goodyear Bellows#9 10-19
Contitech Bellows#6364
Triangle Bellows#5600
Load (Lbs) @80 PSI7100
Load (Lbs) @100 PSI65
Natural Freq. (CPM)16.00
Bottom Plate TypePlastic
Top Plate Hole/Stud Qty3
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)6.20
Bottom Plate Hole/Stud Qty1
Bottom Plate Dia. (C)N/A
Bottom Part #BS08765
BumperNo
BracketN/A
Min. Height7.80
Max. Height25.20
Max. Dia.12.60


Cross Reference

NamePart NumberNotes
Contitech66666Air Spring Rolling Lobe
Contitech9 10-19 P 898Air Spring Rolling Lobe
Firestone8864Air Spring Rolling Lobe
Firestone8865Air Spring Rolling Lobe
FirestoneW013588864Air Spring Rolling Lobe
FirestoneW01-358-8864Air Spring Rolling Lobe
FirestoneW016875470Air Spring Rolling Lobe
FirestoneW01-687-5470Air Spring Rolling Lobe
FirestoneW017038863Air Spring Rolling Lobe
FirestoneW01-703-8863Air Spring Rolling Lobe
FirestoneW017038864Air Spring Rolling Lobe
FirestoneW01-703-8864Air Spring Rolling Lobe
FirestoneW017038865Air Spring Rolling Lobe
FirestoneW01-703-8865Air Spring Rolling Lobe
Goodyear1R121097Air Spring Rolling Lobe
Goodyear1R12-1097Air Spring Rolling Lobe
KenworthC811011Air Spring Rolling Lobe
KenworthC81-1011Air Spring Rolling Lobe
KenworthC811013Air Spring Rolling Lobe
KenworthC81-1013Air Spring Rolling Lobe
Peterbilt0308716Air Spring Rolling Lobe
Peterbilt03-08716Air Spring Rolling Lobe
Peterbilt308716Air Spring Rolling Lobe
