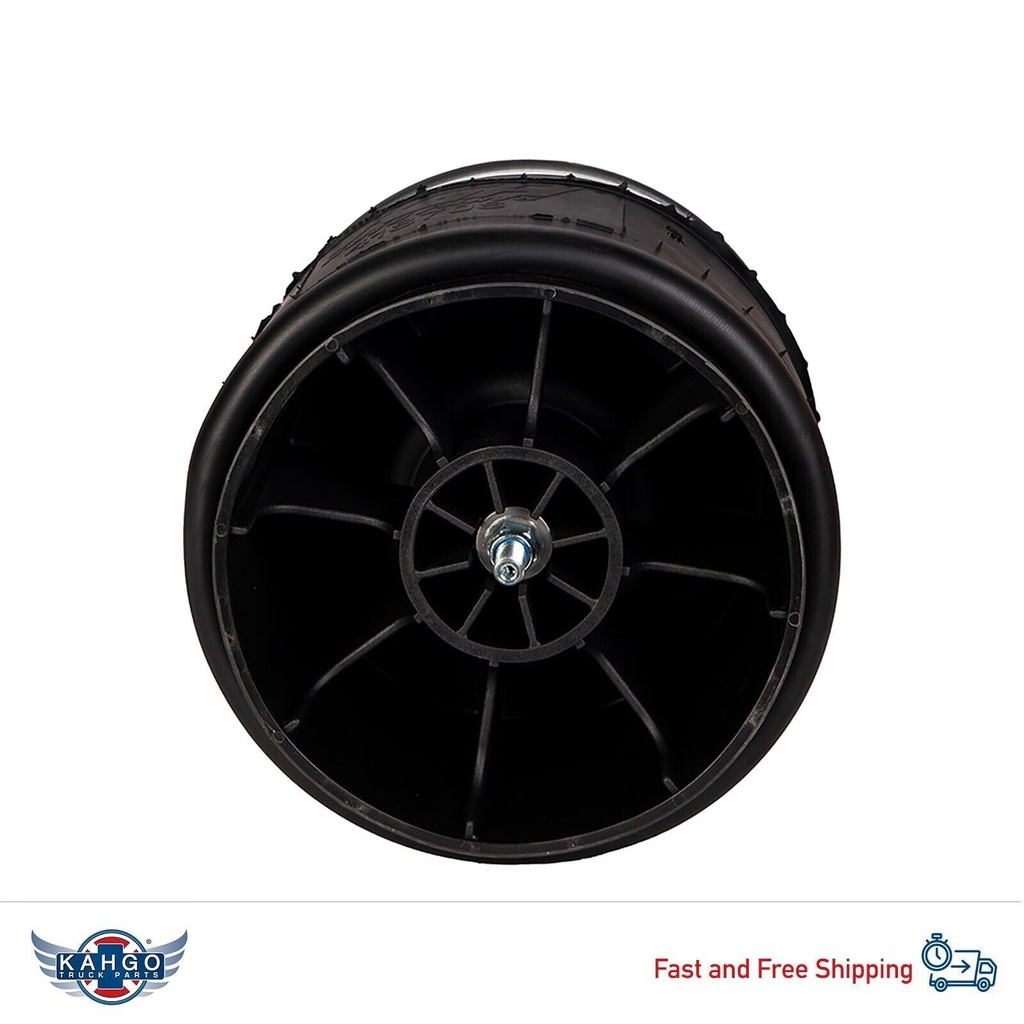

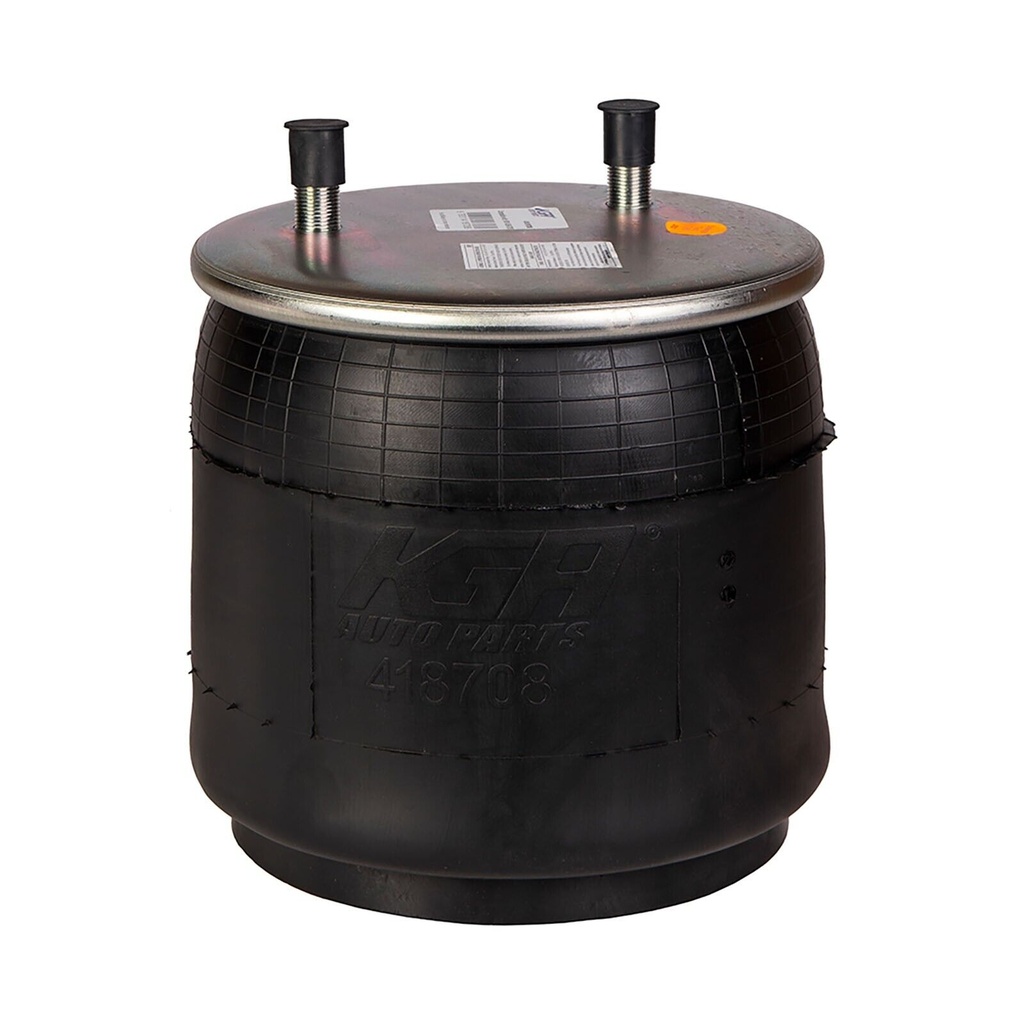

Air Spring Rolling Lobe 410.P8708 W01-358-8708
| Brand: KGA |
| Manufacturer Part Number: 410.P8708 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK25E |
| Firestone Bellows# | 1T17CA-6.5 |
| Goodyear Bellows# | 566-26-3-080 |
| Contitech Bellows# | 10 10-16 |
| Triangle Bellows# | 6382 |
| Load (Lbs) @80 PSI | 6760 |
| Load (Lbs) @100 PSI | 8450 |
| Natural Freq. (CPM) | 75 |
| Design Height (In) | 11 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |

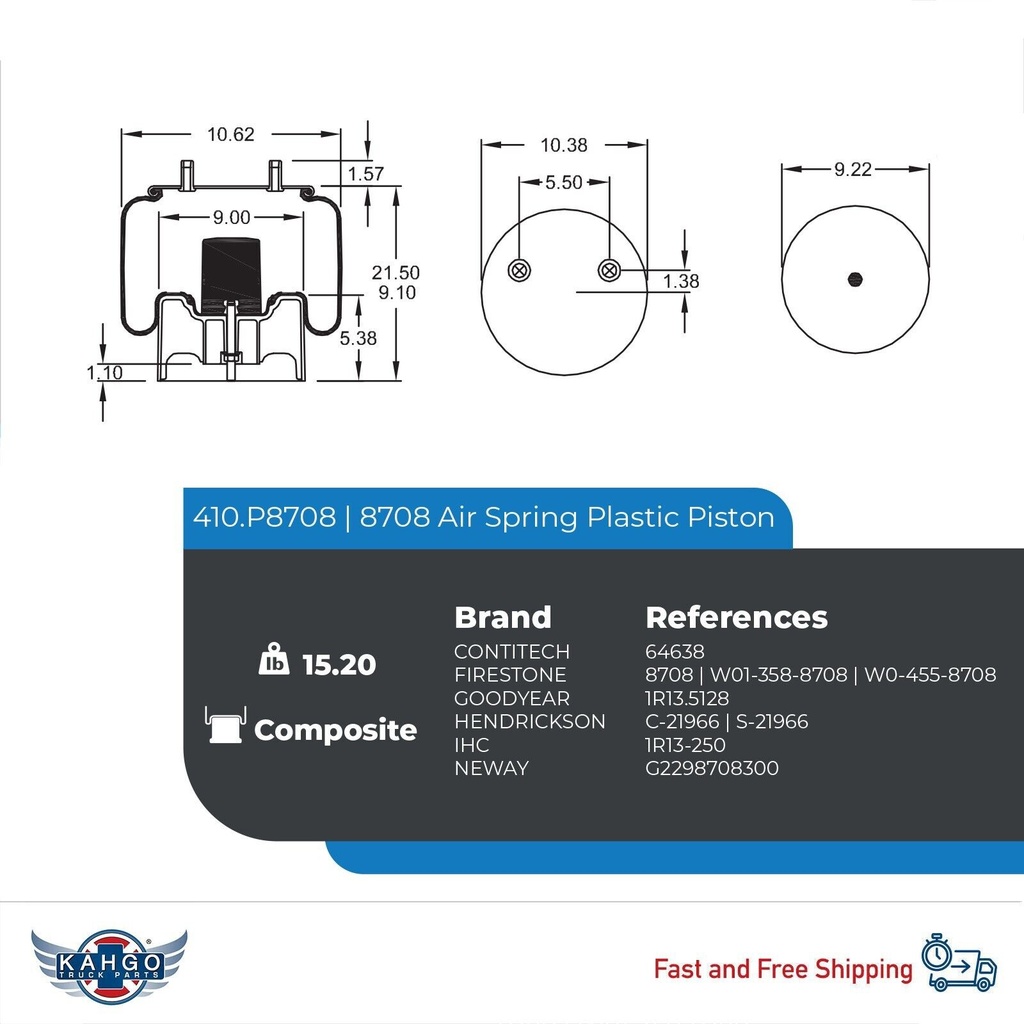

| Top Plate Dia. (A) | 10.20 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 9.25 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS15733 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 8.5 |
| Max. Height | 20.5 |
| Max. Dia. | 13.7 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Firestone | 8708 | Air Spring Rolling Lobe |
| Firestone | W013588708 | Air Spring Rolling Lobe |
| Firestone | W01-358-8708 | Air Spring Rolling Lobe |
| Firestone | W014558708 | Air Spring Rolling Lobe |
| Firestone | W01-455-8708 | Air Spring Rolling Lobe |
