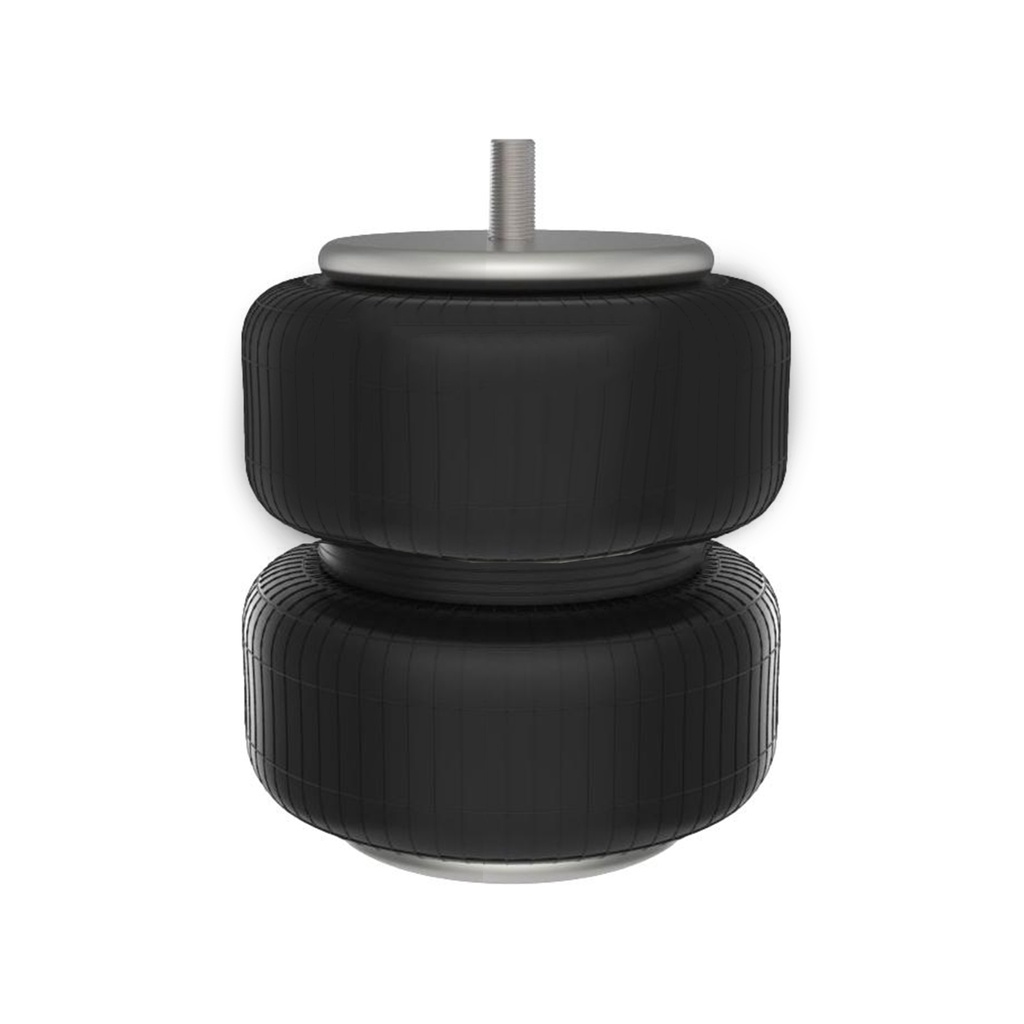

Air Spring Double Convoluted ABSP2B12RB-7897 7897 64683 64602 FD 200 22 524 789
| Brand: Automann |
| Cross Reference 1: S-23114 70418501 704185-01 |
| Manufacturer Part Number: ABSP2B12RB-7897 |
| OE/OEM Part Number: W01-358-7897 W013587898 W01-358-7898 W014557898 |
| Other OEM Part Number: W01-455-7898 2B9495 2B9-495 R002878 R-002878 |
| Cross Reference: 002878 23114 2878 S-2311 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Double ConvolutedAutomann Bellows#SP2B12RBFirestone Bellows#20-1Goodyear Bellows#578-92-3-217Contitech Bellows#FD 200-22Triangle Bellows#6395Load (Lbs) @80 PSI2900Load (Lbs) @100 PSI3600Natural Freq. (CPM)103Design Height (In)8.00Top Plate Hole/Stud Qty1Top Plate Dia. (A)6.31Top Plate C to C Dia. (B)N/ABottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)6.31Bottom Plate C to C Dia. (D)3.50BumperNoMin. Height2.90Max. Height11.80Max. Dia.10.00Cross Reference Name Number Notes Firestone7897Air Spring Double ConvolutedHendrickson/Turner2878Air Spring Double ConvolutedHendrickson/TurnerC23114Air Spring Double ConvolutedHendrickson/TurnerS23114Air Spring Double Convoluted
