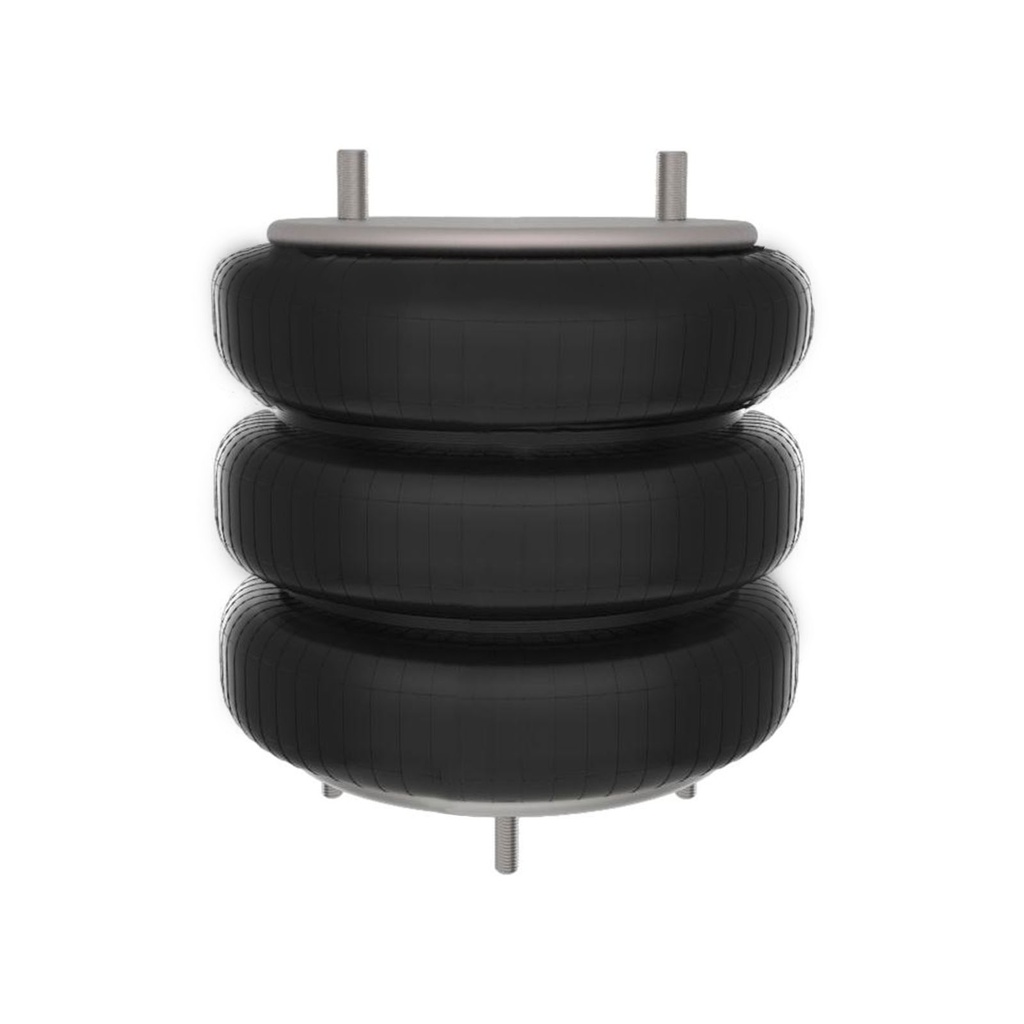

Air Spring Triple Convoluted AS7846 7846 3B14-451 64582 S7853




Air Spring Triple Convoluted AS7846 7846 3B14-451 64582 S7853
(0 review)

188.99 188.99 USD 188.99


  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Manufacturer Part Number
  • Cross Reference

This combination does not exist.

Brand: Continental
Cross Reference 1: 3B14365 3B14-365 3B14451 3B14-451 B7853
Cross Reference 2: B7853 B-7853 S7853 S-7853 1003587846C
Manufacturer Part Number: AS7846
Cross Reference: 64582 FT530-35456 7846 W013587846 W01-358-7846
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck


Specifications Attribute Value Type Triple ConvolutedAutomann Bellows#SP3B32RAContitech Bellows#FT 530-35Load (Lbs) @80 PSI8900Load (Lbs) @100 PSI11100Natural Freq. (CPM)62Design Height (In)13.00Top Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)7.75Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)11.31Bottom Plate C to C Dia. (D)6.25BumperYesMin. Height4.60Max. Height21.30Max. Dia.15.90Cross Reference Name Number Notes Contitech64582Air Spring Triple ConvolutedContitechFT530-35456Air Spring Triple ConvolutedFirestone7846Air Spring Triple ConvolutedFirestoneW013587846Air Spring Triple ConvolutedFirestoneW01-358-7846Air Spring Triple ConvolutedGoodyear3B14365Air Spring Triple ConvolutedGoodyear3B14-365Air Spring Triple ConvolutedGoodyear3B14451Air Spring Triple ConvolutedGoodyear3B14-451Air Spring Triple ConvolutedHendricksonB7853Air Spring Triple ConvolutedHendricksonB-7853Air Spring Triple ConvolutedHendricksonS7853Air Spring Triple ConvolutedHendricksonS-7853Air Spring Triple ConvolutedRidewell1003587846CAir Spring Triple Convoluted
