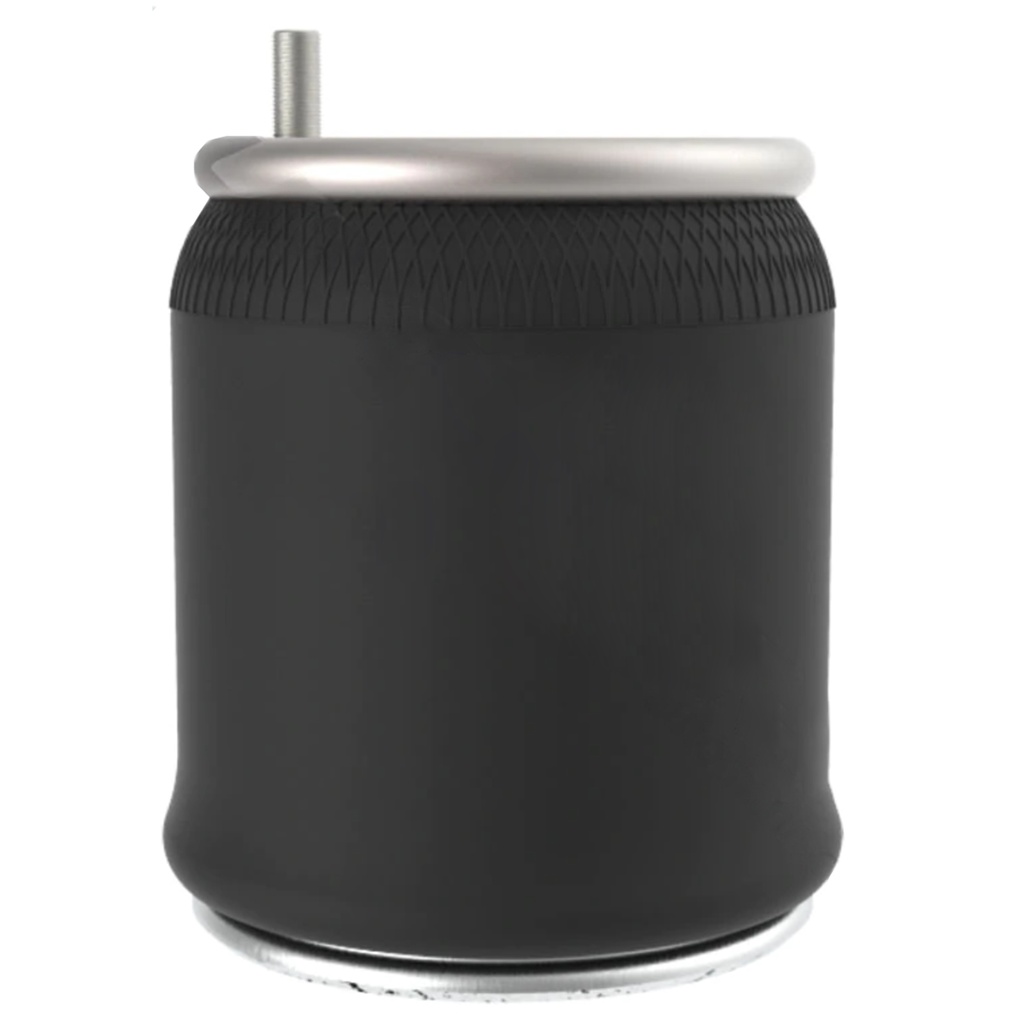

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23 irestone Bellows#1T15VM-4.0, 1T15VP-4.0Goodyear Bellows#566-26-3-053, 566-26-3-036Contitech Bellows#9 10-13.5Triangle Bellows#6385Load (Lbs) @80 PSI6300Load (Lbs) @100 PSI7900Natural Freq. (CPM)89Design Height (In)9Bottom Plate Type SteelTop Plate Hole/Stud Qty1Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)N/ABottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)9.47Bottom Plate C to C Dia. (D)5.66Bottom #BS09758BumperYesBracketN/AMin. Height5.4Max. Height16.8Max. Dia.12.6Cross Reference Name Number Notes Contitech64287Air Spring Rolling LobeFirestone9270Air Spring Rolling LobeGoodyear1R13119Air Spring Rolling LobeGoodyear1R13-119Air Spring Rolling LobeHendricksonC20010Air Spring Rolling LobeHendricksonC25559Air Spring Rolling LobeHendricksonS25559Air Spring Rolling LobeHendrickson/TurnerS20010Air Spring Rolling Lobe
