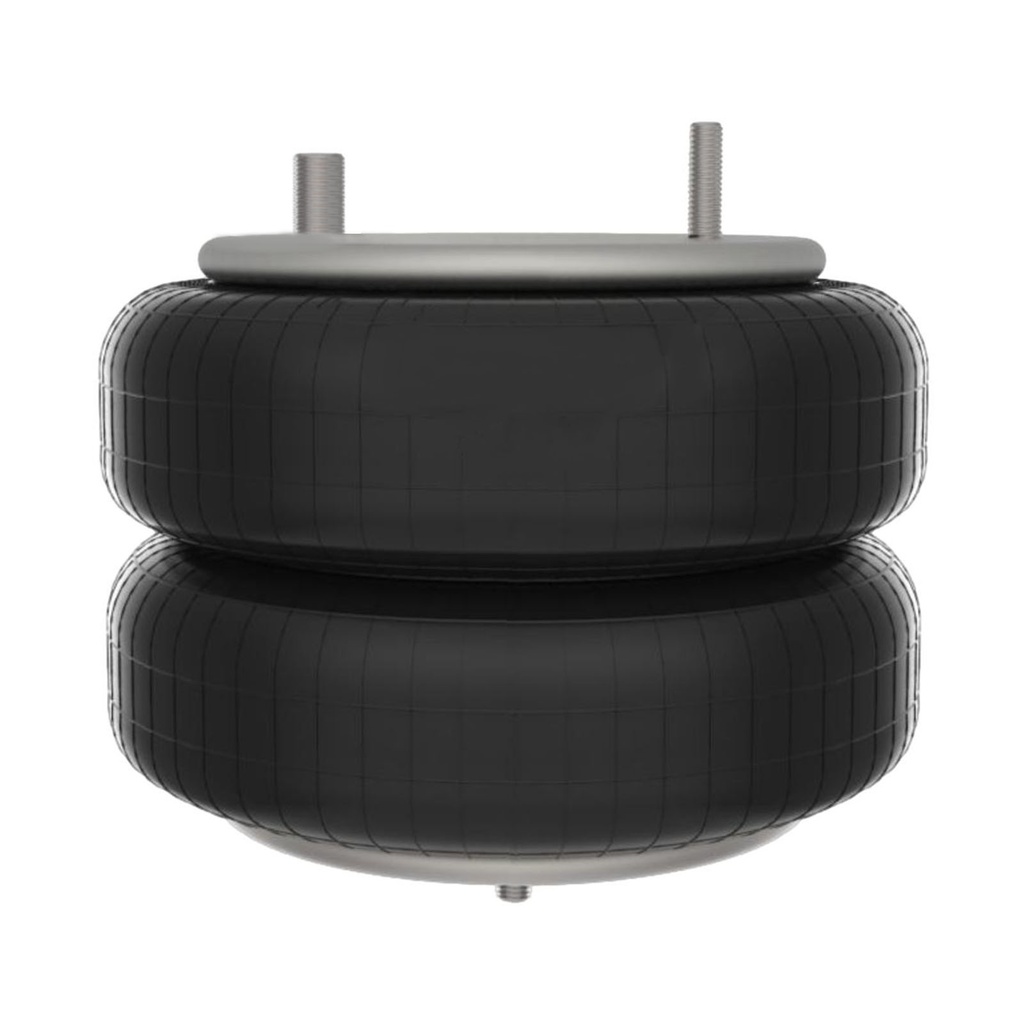

Continental Air Spring Double Convoluted 566.CT64542 AS4549 64542 21100005
| Brand: Continental |
| Manufacturer Part Number: 566.CT64542 |
| Cross Reference: 64542 21100005 FD 330 30 549 211-00-005 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Double Convoluted |
| Brand | Continental |
| Automann Bellows# | SP2B22RA |
| Firestone Bellows# | - |
| Goodyear Bellows# | - |
| Contitech Bellows# | FD 330-30 |
| Load (Lbs) @80 PSI | 5400 |
| Load (Lbs) @100 PSI | 6800 |
| Natural Freq. (CPM) | 88 |
| Design Height (In) | 10 |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 9.00 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Plate Alignment | - |
| Bumper | Yes |
| Bracket | No |
| Min. Height | 4.10 |
| Max. Height | 14.60 |
| Max. Dia. | 13.40 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 64542 | Air Spring Double Convoluted |
| Contitech | FD 330 30 549 | Air Spring Double Convoluted |
| Raydan | 21100005 | Air Spring Double Convoluted |
| Raydan | 211-00-005 | Air Spring Double Convoluted |
