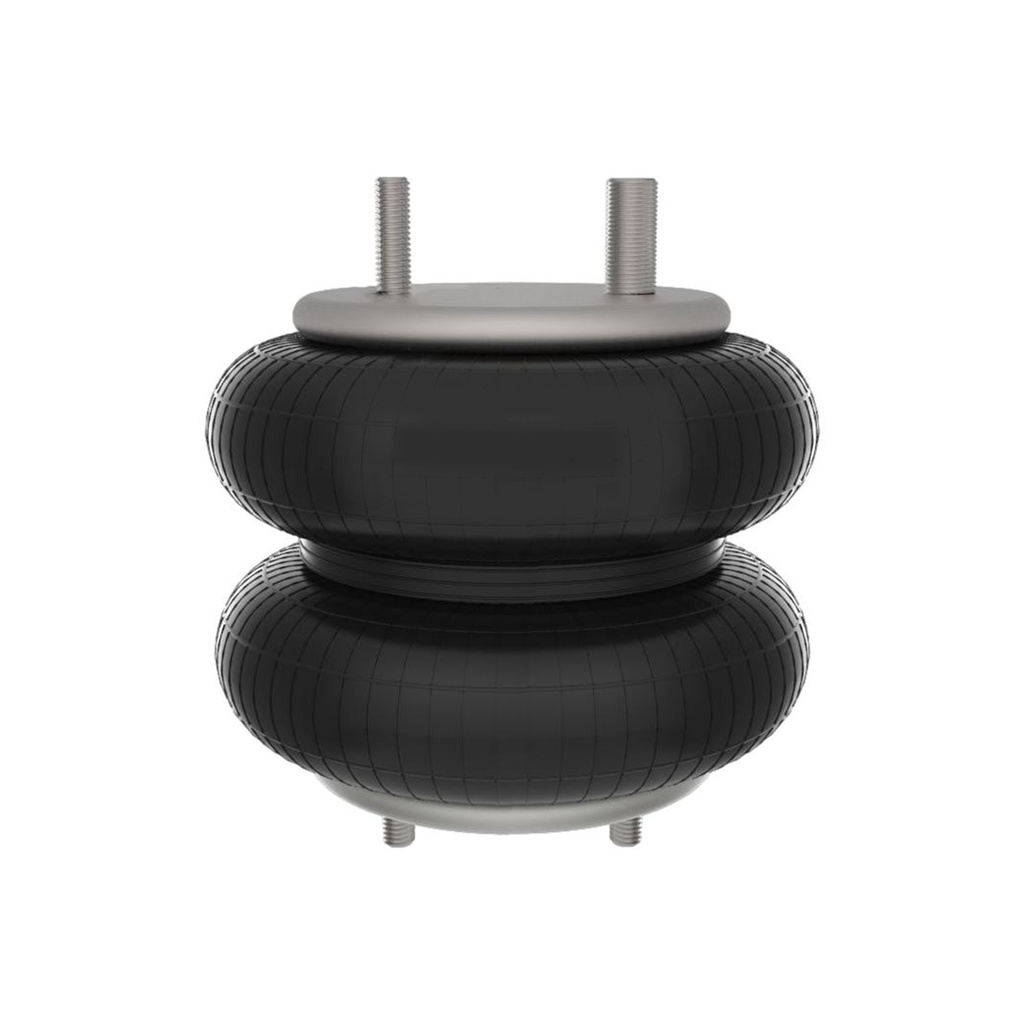

Air Spring Double Convoluted SP 556884 ABSP2B12R-6884 6884 64712 FD 200 19 724 FD200-19
| Brand: SAMPA |
| Cross Reference 1: FD 200 19 724 FD200-19 |
| Manufacturer Part Number: SP 556884 |
| OE/OEM Part Number: 6884 W013586884 W01-358-6884 11030019 |
| Cross Reference: ABSP2B12R-6884 64712 11030019 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Double ConvolutedAutomann Bellows#SP2B12RFirestone Bellows#20Contitech Bellows#FD 200-19Triangle Bellows#6325Load (Lbs) @80 PSI2560Load (Lbs) @100 PSI3200Natural Freq. (CPM)108Design Height (In)8.00Top Plate Hole/Stud Qty2Top Plate Dia. (A)6.31Top Plate C to C Dia. (B)3.38Bottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)6.31Bottom Plate C to C Dia. (D)3.50BumperYesMin. Height3.50Max. Height10.50Max. Dia.9.80Cross Reference Name Number Notes Contitech64712Air Spring Double ConvolutedFirestone6884Air Spring Double ConvolutedLink11030019Air Spring Double Convoluted
