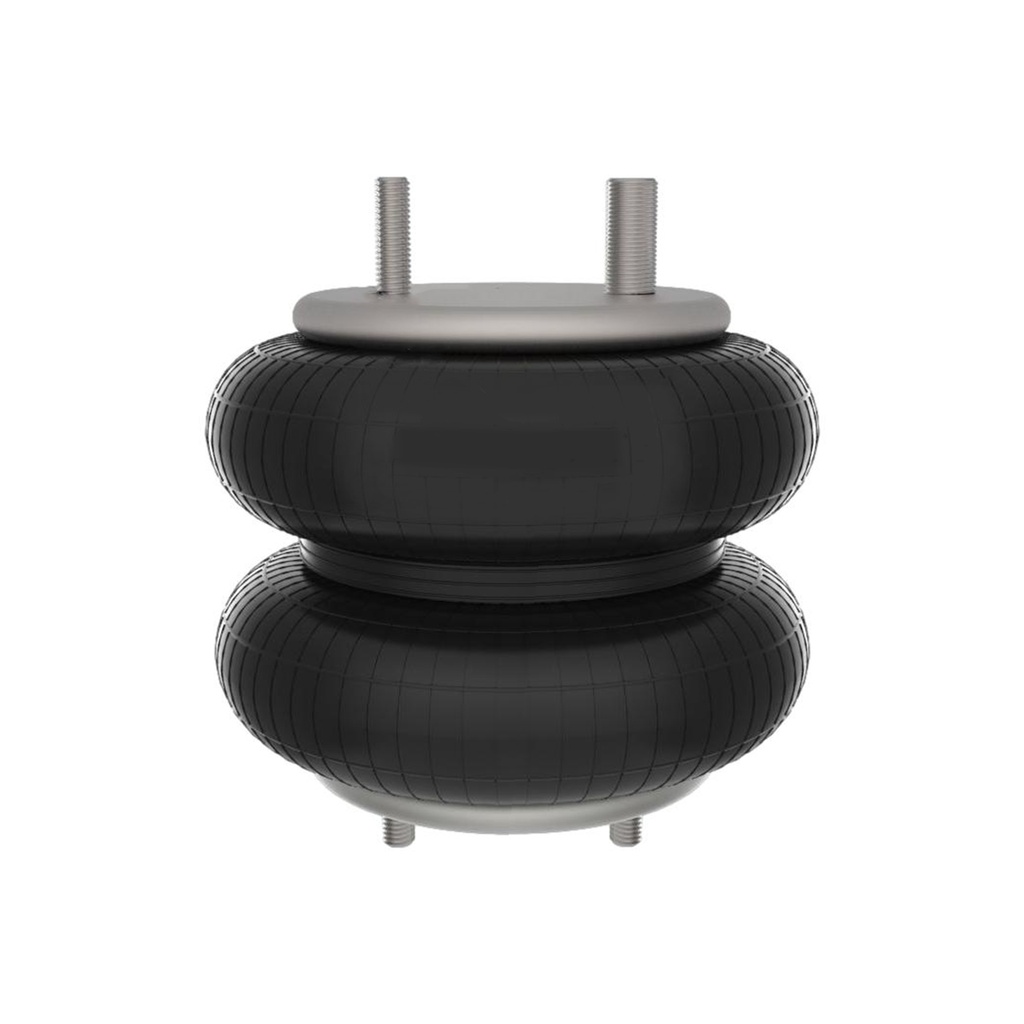

Air Spring Double Convoluted  ABSP2B12R-6884 6884 64712 FD 200 19 724 FD200-19

Price:

137.54

FREE STANDARD SHIPPING. FREE RETURNS

Air Spring Double Convoluted ABSP2B12R-6884 6884 64712 FD 200 19 724 FD200-19

https://www.kahgotruckparts.com/web/image/product.template/90416/image_1920?unique=e919759
(0 review)

137.54 137.54 USD 137.54

137.54


  • Brand
  • Manufacturer Part Number
  • OE/OEM Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: ABSP2B12R-6884
OE/OEM Part Number: 6884 W013586884 W01-358-6884 11030019
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing


ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck




Specifications Attribute Value Type Double ConvolutedAutomann Bellows#SP2B12RFirestone Bellows#20Contitech Bellows#FD 200-19Triangle Bellows#6325Load (Lbs) @80 PSI2560Load (Lbs) @100 PSI3200Natural Freq. (CPM)108Design Height (In)8.00Top Plate Hole/Stud Qty2Top Plate Dia. (A)6.31Top Plate C to C Dia. (B)3.38Bottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)6.31Bottom Plate C to C Dia. (D)3.50BumperYesMin. Height3.50Max. Height10.50Max. Dia.9.80Cross Reference Name Number Notes Contitech64712Air Spring Double ConvolutedFirestone6884Air Spring Double ConvolutedLink11030019Air Spring Double Convoluted
