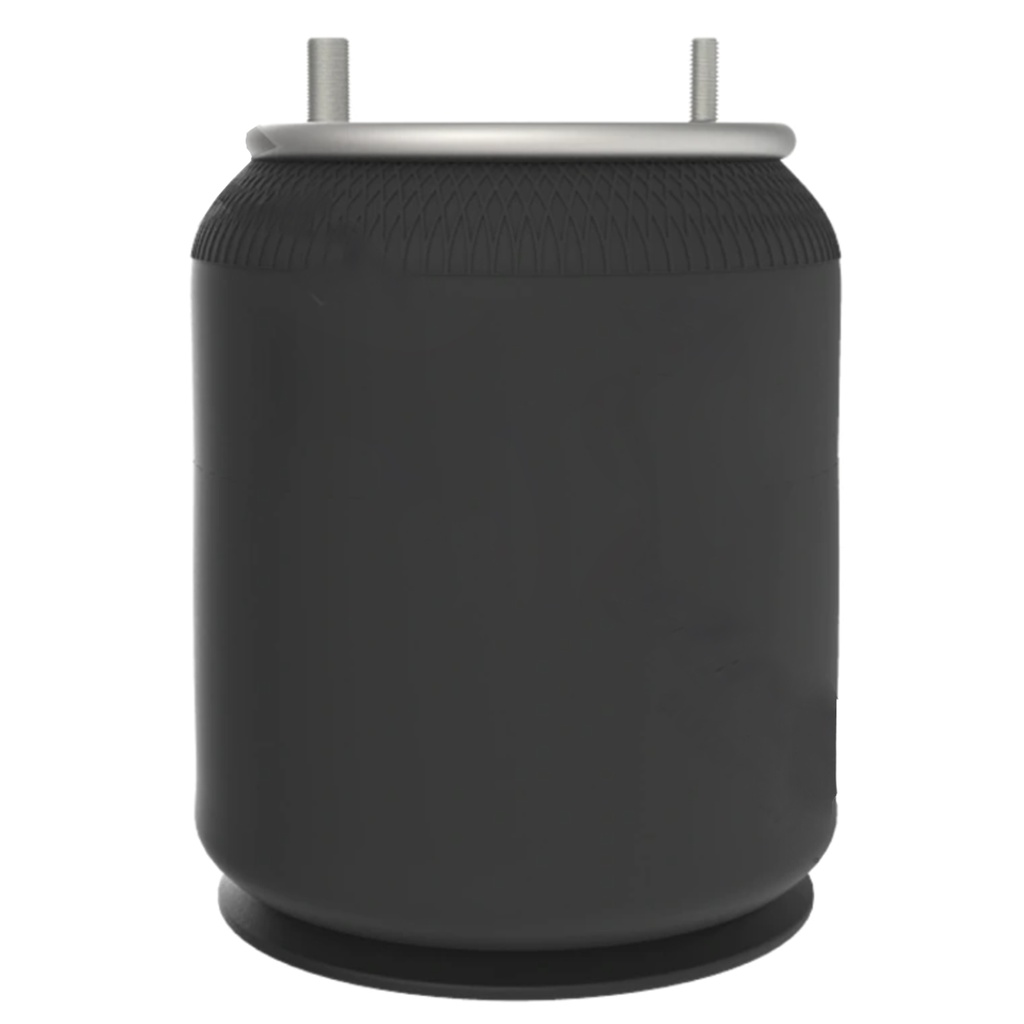

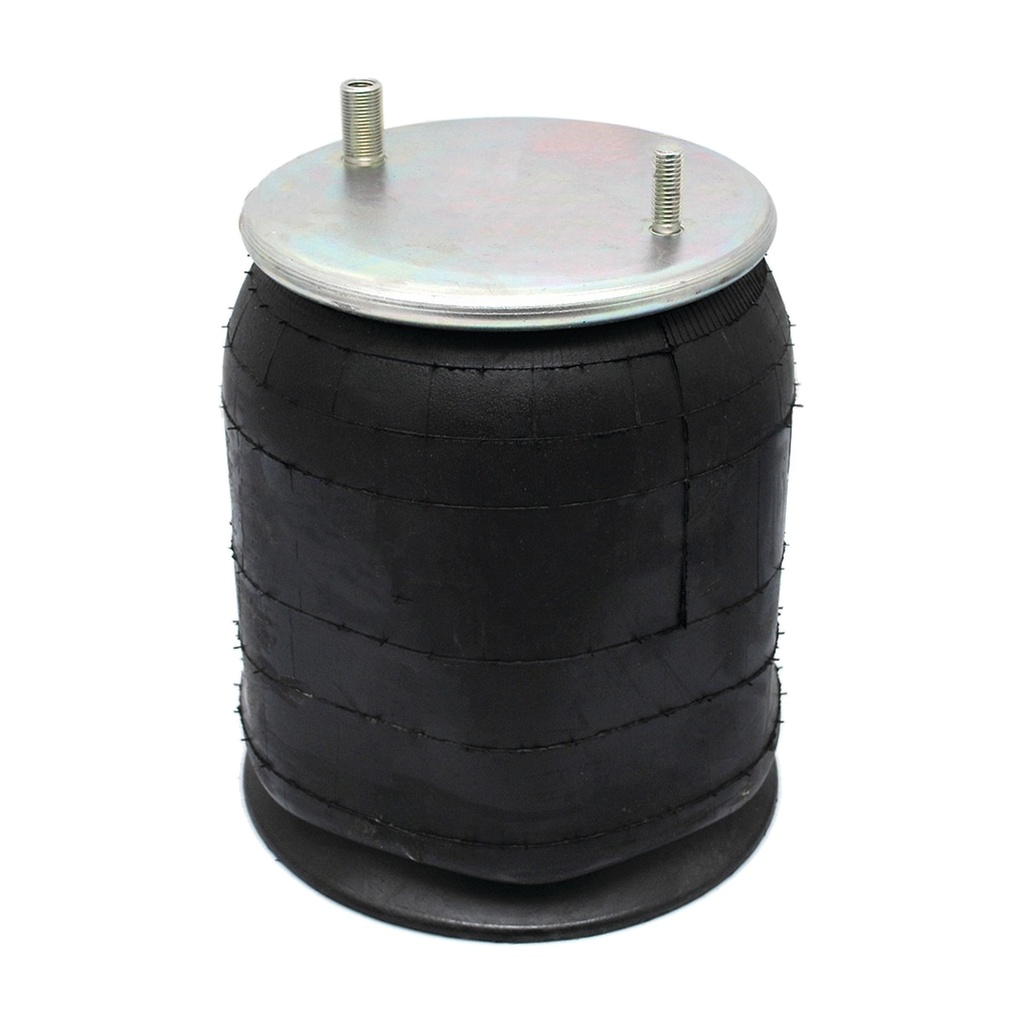

Air Spring Rolling Lobe SP559394-KP 566.ER9394 W01-358-9394 1R12-279

Price:

$ 151.99
FREE STANDARD SHIPPING. FREE RETURNS
  2. Shop
  3. AFTER MARKET PARTS
  4. Air Spring Rolling Lobe SP559394-KP 566.ER9394 W01-358-9394 1R12-279
  5. AFTER MARKET PARTS

Air Spring Rolling Lobe SP559394-KP 566.ER9394 W01-358-9394 1R12-279

(0 review)
$ 151.99 $ 151.99

  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Manufacturer Part Number
  • Cross Reference
  We also offer Overnight Shipping option call us at 818-614-9207 for pricing.

FREE 30 DAY RETURN

FREE SHIPPING

ORDERS SHIPPED NEXT DAY
Brand SAMPA
Cross Reference 1 566243093 9130 9241 8321 8358 8383
Cross Reference 2 UCE-9393-2 1R12-279 64281 9 10-19 P 383
Cross Reference 3 910-19P383 91019P383 W01-358-9394 W013589394 352-9130
Manufacturer Part Number SP559394-KP
Cross Reference E1R12142 1R12142 1R12261 1R12279 1R12281
Contact Us
Brand: SAMPA
Cross Reference 1: 566243093 9130 9241 8321 8358 8383
Cross Reference 2: UCE-9393-2 1R12-279 64281 9 10-19 P 383
Cross Reference 3: 910-19P383 91019P383 W01-358-9394 W013589394 352-9130
Manufacturer Part Number: SP559394-KP
Cross Reference: E1R12142 1R12142 1R12261 1R12279 1R12281

          Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23LFirestone Bellows#1T15M-9Goodyear Bellows#566-24-3-066Contitech Bellows#9 10-19Triangle Bellows#6364Load (Lbs) @80 PSI5700Load (Lbs) @100 PSI7200Natural Freq. (CPM)60Design Height (In)15.5Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)6.20Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)10.24Bottom Plate C to C Dia. (D)7.87Bottom #BS08129BumperYesBracketN/AMin. Height9.9Max. Height24.6Max. Dia.12.6Cross Reference Name Number Notes Firestone9394Air Spring Rolling LobeFirestoneW013589394Air Spring Rolling LobeFirestoneW01-358-9394Air Spring Rolling Lobe
