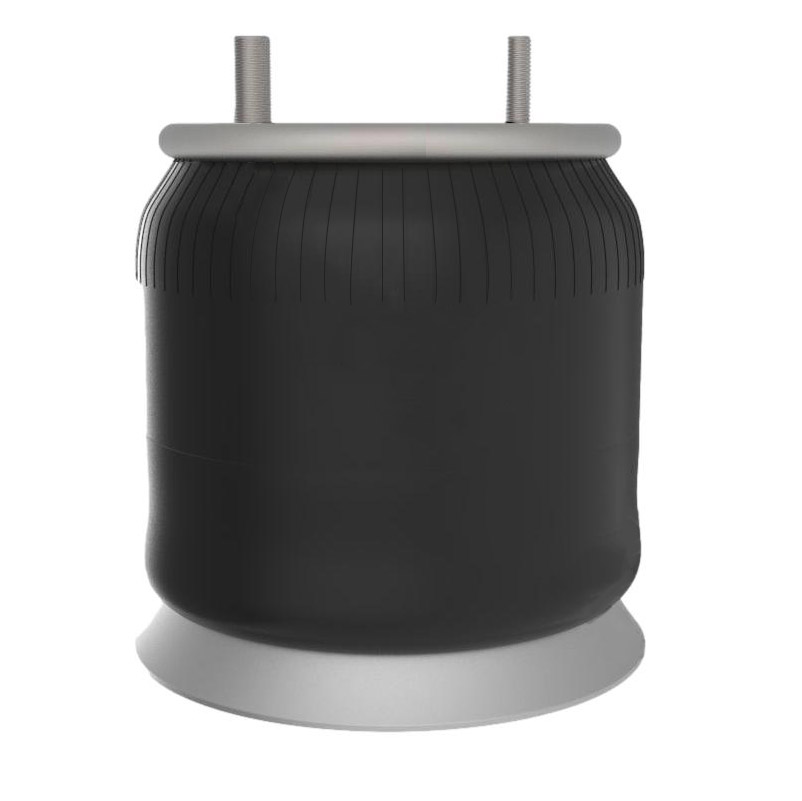

Air Spring Rolling Lobe SP-559978-KP AB1DK23I-A959 9978, 1R12-668, S28929, C0351P
| Brand: SAMPA |
| Manufacturer Part Number: SP-559978-KP |
| Cross Reference: 9978 1R12-668 S28929 C0351P |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23 irestone Bellows#1T15M-4Contitech Bellows#9 10-13.5Load (Lbs) @80 PSI5600Load (Lbs) @100 PSI7100Natural Freq. (CPM)74Design Height (In)11.50Bottom Plate Type AluminumTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)10.28Bottom Plate C to C Dia. (D)N/ABottom #BS13361BumperYesBracketN/AMin. Height7.80Max. Height19.60Max. Dia.12.60Cross Reference Name Number Notes HendricksonC28929Air Spring Rolling LobeHendrickson/TurnerS28929Air Spring Rolling Lobe
