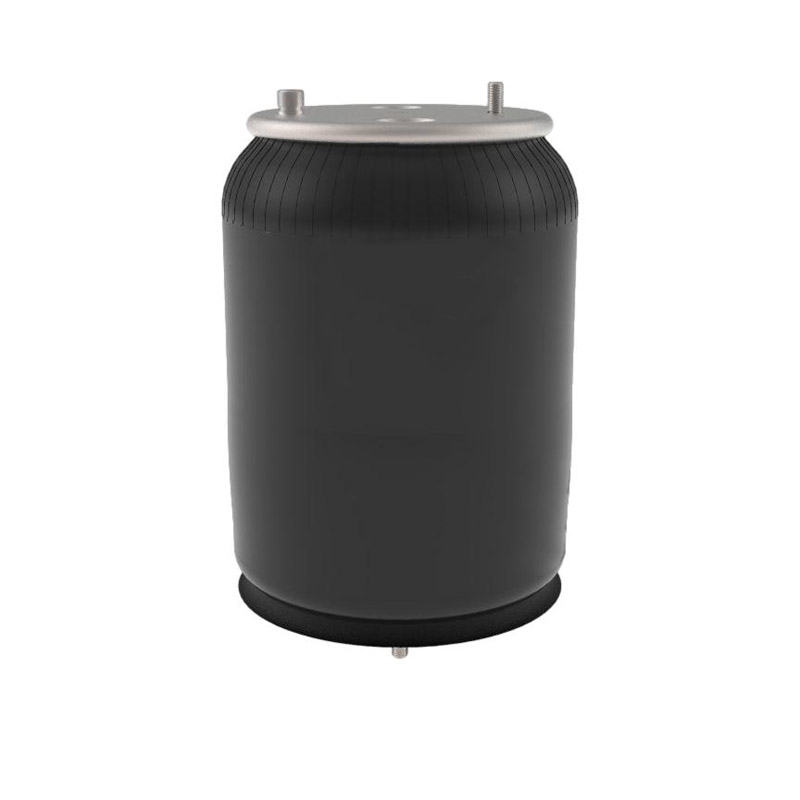

Air Spring Rolling Lobe SP-551192-KP AB1DF23I-P1137 73746
| Brand: SAMPA |
| Cross Reference 1: 1192 W013581192 W01-358-1192 1R12-689 |
| Cross Reference 2: 2514462C1 3691773C1 |
| Manufacturer Part Number: SP-551192-KP |
| OE/OEM Part Number: 1R12689, 3691773C1, 74662, W013581192 |
| Cross Reference: AB1DF23I-P1137 |
| OE/OEM Part Number 2: 9 10B-19.5 P 889 910S-18 P 1067 9 10S-18 P 1137 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DF23 irestone Bellows#1T15XR-9Goodyear Bellows#566-24-3-165Contitech Bellows#9 10S-18Load (Lbs) @80 PSI5900Load (Lbs) @100 PSI7500Natural Freq. (CPM)57Design Height (In)14.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.87Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)10.04Bottom Plate C to C Dia. (D)N/ABottom #BS16239BumperNoBracketAB9875PMin. Height6.90Max. Height24.00Max. Dia.12.60Cross Reference Name Number Notes Contitech73746Air Spring Rolling LobeContitech74662Air Spring Rolling LobeContitech9 10B-19.5 P 889Air Spring Rolling LobeContitech9 10S-18 P 1067Air Spring Rolling LobeContitech9 10S-18 P 1137Air Spring Rolling LobeFirestone1192Air Spring Rolling LobeFirestoneW013581192Air Spring Rolling LobeFirestoneW01-358-1192Air Spring Rolling LobeGoodyear1R12689Air Spring Rolling LobeGoodyear1R12-689Air Spring Rolling LobeIHC2514462C1Air Spring Rolling LobeIHC3691773C1Air Spring Rolling Lobe
