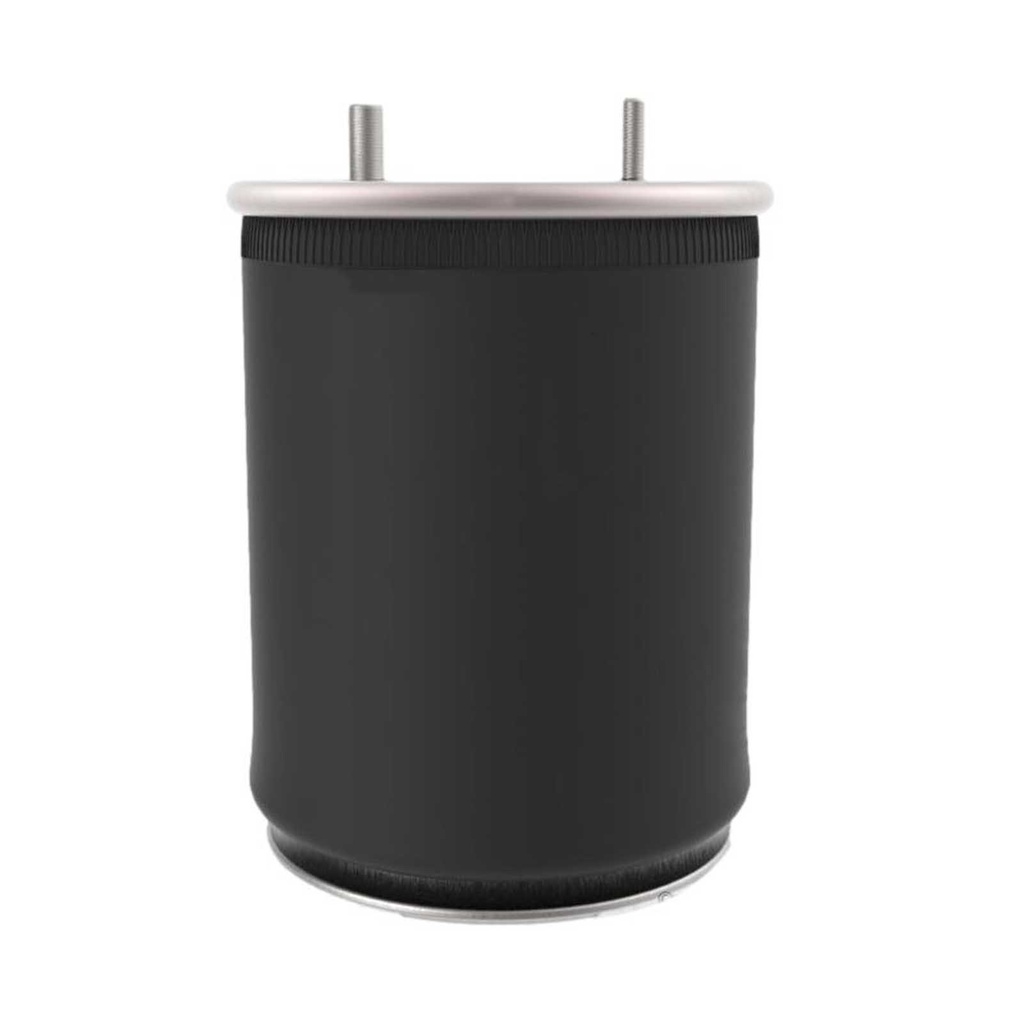

Air Spring Rolling Lobe HDV9122 W01-358-9122 AS9122 1R14-045 64273
| Brand: HDV |
| Manufacturer Part Number: HDV9122 |
| OE/OEM Part Number: 11 10.5-21 A 313 161019 64273 8792 9122 9142 |
| Other OEM Part Number: W01-358-8792 W013589122 W01-358-9122 |
| Cross Reference: 1R13038 1R13-038 1R14045 1R14-045 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1D28CFirestone Bellows#1T19F-11, 1T19L-11Goodyear Bellows#566-28-3-020, 566-26-3-072Contitech Bellows#11 10.5-21Triangle Bellows#6366Load (Lbs) @80 PSI6900Load (Lbs) @100 PSI8800Natural Freq. (CPM)62Design Height (In)16.5Bottom Plate Type SteelTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)10.20Bottom Plate C to C Dia. (D)7.87Bottom #BS05215BumperYesBracketN/AMin. Height8.5Max. Height26.5Max. Dia.13.7Cross Reference Name Number Notes Contitech64273Air Spring Rolling LobeFirestone8792Air Spring Rolling LobeFirestone9122Air Spring Rolling LobeFirestone9142Air Spring Rolling LobeGoodyear1R13038Air Spring Rolling LobeGoodyear1R13-038Air Spring Rolling LobeGoodyear1R14045Air Spring Rolling LobeGoodyear1R14-045Air Spring Rolling LobeHendricksonB3467Air Spring Rolling LobeHendricksonB3830Air Spring Rolling LobeHendricksonS3467Air Spring Rolling LobeHendricksonS3830Air Spring Rolling LobeIHC1681748C1Air Spring Rolling LobeIHC168749C1Air Spring Rolling LobeIHC554772C1Air Spring Rolling LobeNeway90557020Air Spring Rolling LobeNeway90557071Air Spring Rolling LobeNeway90557076Air Spring Rolling LobeWatson & ChalinAS0023Air Spring Rolling Lobe
