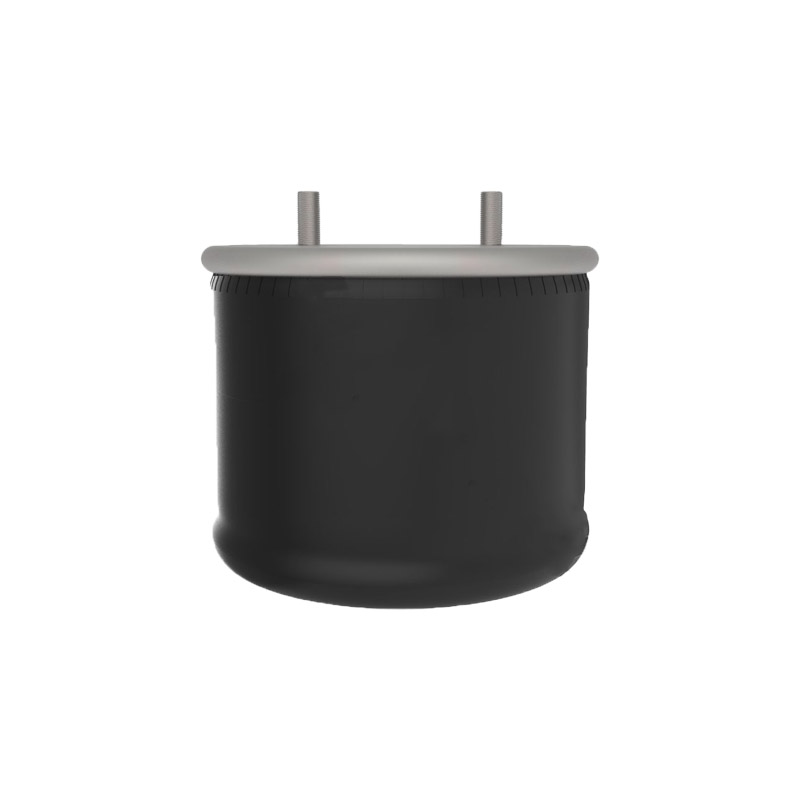

Air Spring Rolling Lobe AB1DK28E-8091 64421
| Brand: Automann |
| Manufacturer Part Number: AB1DK28E-8091 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK28EFirestone Bellows#1T19LC-6, 1T19FC-5Goodyear Bellows#566-28-3-015, 566-28-3-093Contitech Bellows#11 10.5A-16Triangle Bellows#6398Load (Lbs) @80 PSI8100Load (Lbs) @100 PSI10100Natural Freq. (CPM)88Design Height (In)10.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)10.16Bottom Plate C to C Dia. (D)N/ABottom #BS10179BumperYesBracketN/AMin. Height5.10Max. Dia.14.10Cross Reference Name Number Notes Contitech64421Air Spring Rolling LobeFirestone8091Air Spring Rolling LobeGoodyear1R14093Air Spring Rolling LobeGoodyear1R14-093Air Spring Rolling LobeGoodyear1R14171Air Spring Rolling LobeGoodyear1R14-171Air Spring Rolling LobeHendricksonS20901Air Spring Rolling LobeHendricksonS21784Air Spring Rolling LobeHendrickson TrailerC20901Air Spring Rolling LobeHendrickson TrailerC-20901Air Spring Rolling LobeRidewell1000156Air Spring Rolling Lobe
