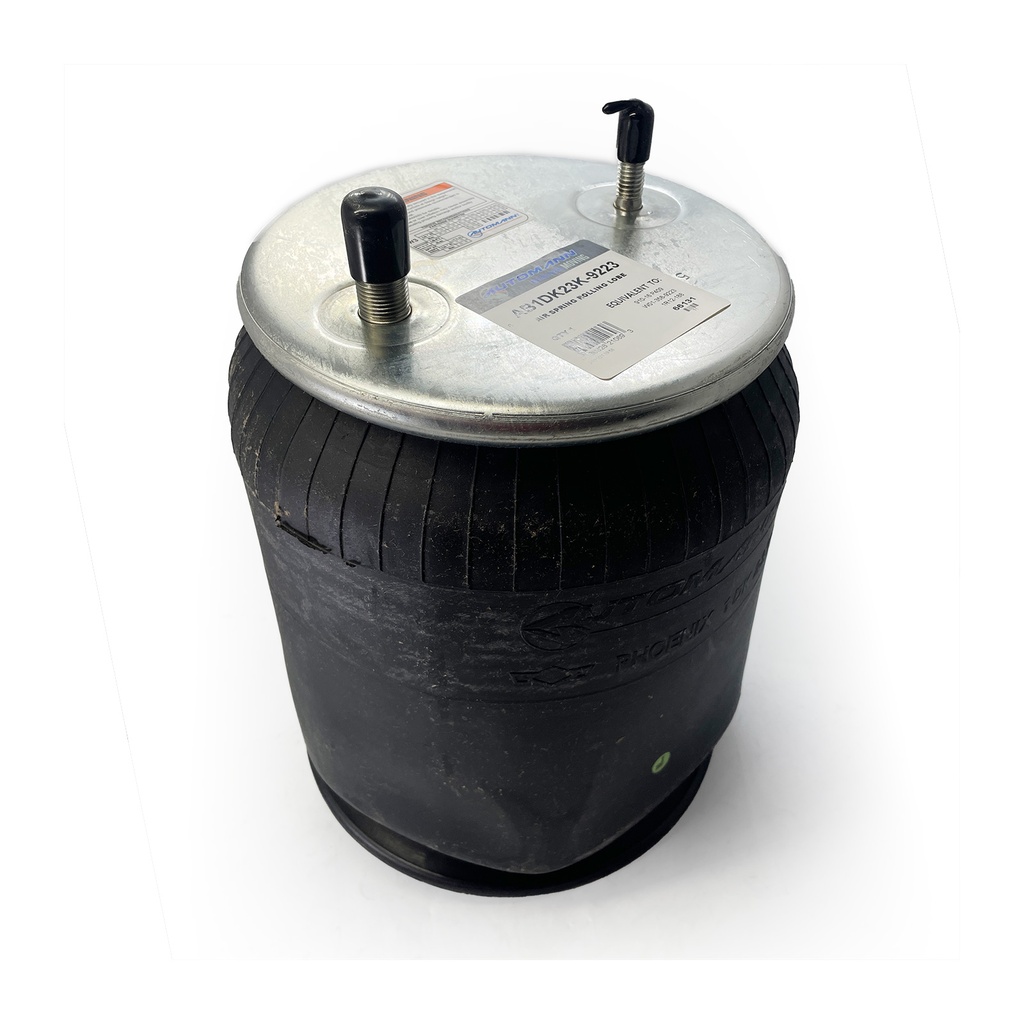

Air Spring Rolling Lobe AB1DK23K-9223 1R12188 64275 48195000 1288401 9233

(0 review)
$ 167.19 $ 167.19

  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Cross Reference 4
  • Manufacturer Part Number
  • Cross Reference
  We also offer Overnight Shipping option call us at 818-614-9207 for pricing.

FREE 30 DAY RETURN

FREE SHIPPING

ORDERS SHIPPED NEXT DAY
Brand Automann
Cross Reference 1 W01-358-9223 W017559223 W01-755-9223
Cross Reference 2 1R12188 1R12-188 1R12903 1R12-903
Cross Reference 3 48195 48195000 48195-000 48195-2 57009223
Cross Reference 4 1288401 12884-01 12884-01A 1003589223C
Manufacturer Part Number AB1DK23K-9223
Cross Reference 64275 910-16P409 9223 W013589223
Contact Us
Brand: Automann
Cross Reference 1: W01-358-9223 W017559223 W01-755-9223
Cross Reference 2: 1R12188 1R12-188 1R12903 1R12-903
Cross Reference 3: 48195 48195000 48195-000 48195-2 57009223
Cross Reference 4: 1288401 12884-01 12884-01A 1003589223C
Manufacturer Part Number: AB1DK23K-9223
Cross Reference: 64275 910-16P409 9223 W013589223

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23KGoodyear Bellows#566-24-3-038Contitech Bellows#9 10-16Triangle Bellows#6363Load (Lbs) @80 PSI5900Load (Lbs) @100 PSI7500Natural Freq. (CPM)64Design Height (In)11.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)10.00Bottom Plate C to C Dia. (D)4.12Bottom #BS08663BumperYesBracketN/AMin. Height7.20Max. Height20.70Max. Dia.12.60Cross Reference Name Number Notes Firestone9223Air Spring Rolling LobeGoodyear1R12188Air Spring Rolling LobeGoodyear1R12-188Air Spring Rolling LobeHendrickson48195Air Spring Rolling LobeHendrickson48195000Air Spring Rolling Lobe
