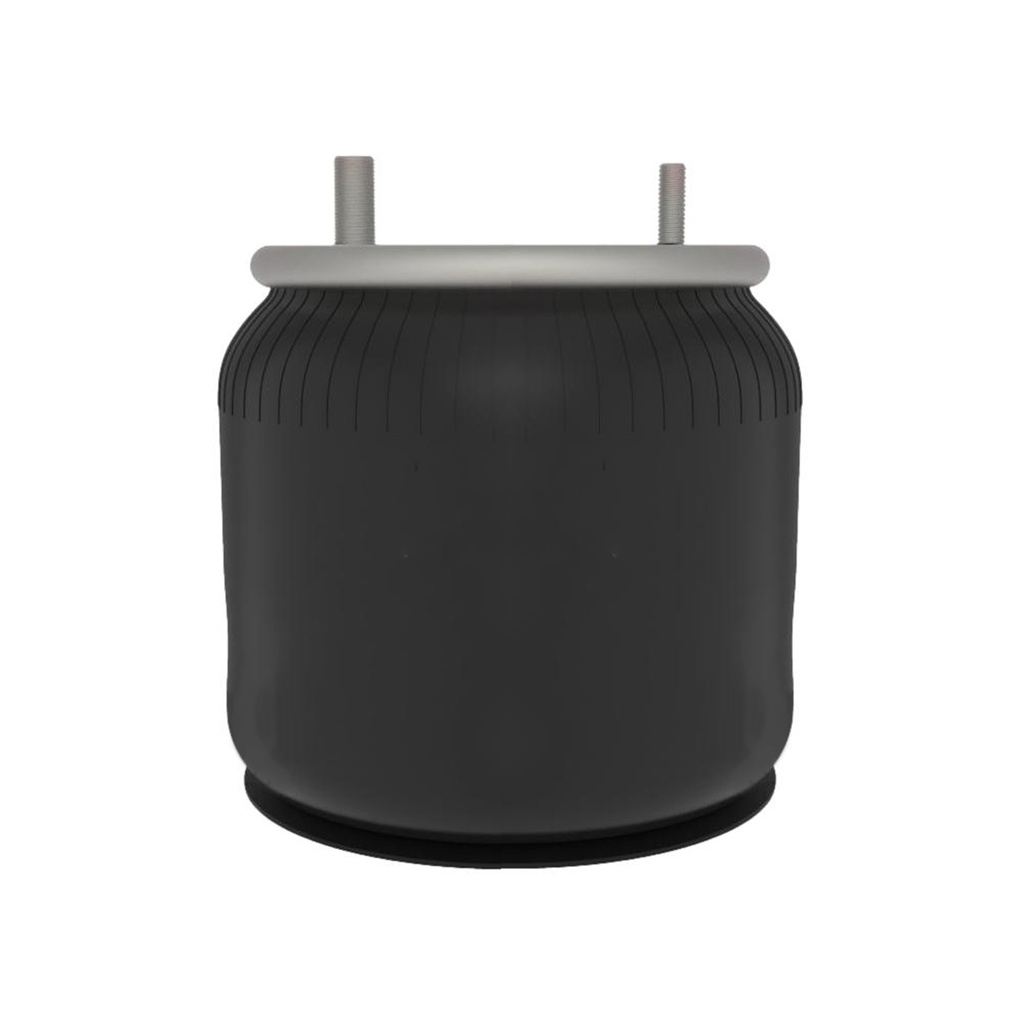

Air Spring Rolling Lobe AB1DK23H-8204 8204
| Brand: Automann |
| Manufacturer Part Number: AB1DK23H-8204 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23HFirestone Bellows#1T15M-2Goodyear Bellows#566-24-3-067Contitech Bellows#9 10-12Triangle Bellows#6361Load (Lbs) @80 PSI5700Load (Lbs) @100 PSI7200Natural Freq. (CPM)82Design Height (In)9.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty5Bottom Plate Dia. (C)9.49Bottom Plate C to C Dia. (D)7.87Bottom #BS12070BumperYesBracketN/AMin. Height6.10Max. Height15.50Max. Dia.12.60Cross Reference Name Number Notes Contitech64456Air Spring Rolling LobeFirestone8204Air Spring Rolling LobeGoodyear1R12508Air Spring Rolling LobeGoodyear1R12-508Air Spring Rolling LobeGoodyear1R12522Air Spring Rolling LobeGoodyear1R12-522Air Spring Rolling LobeGoodyear1R12608Air Spring Rolling LobeGoodyear1R12-608Air Spring Rolling LobeNeway90557173Air Spring Rolling LobeNeway90557223Air Spring Rolling LobeNewayXBSPN05360Air Spring Rolling Lobe
