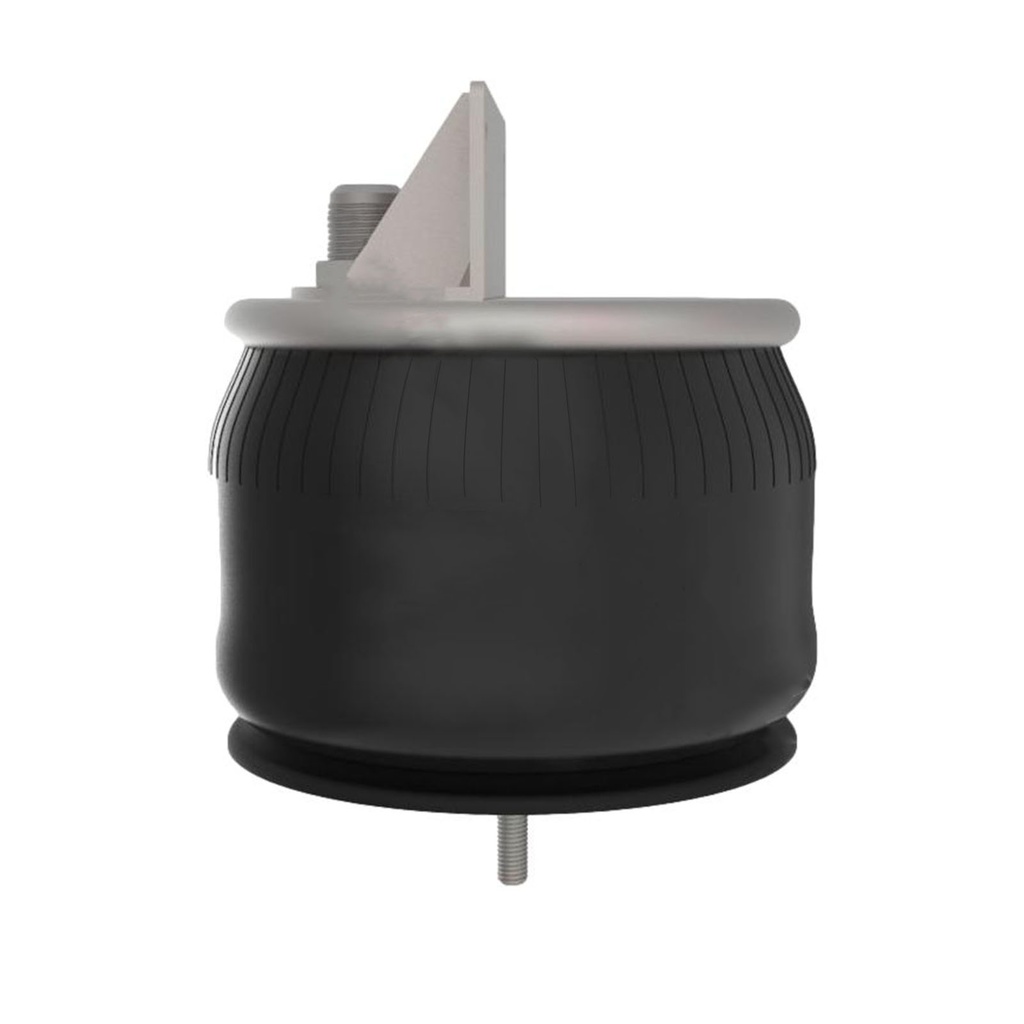

Air Spring Rolling Lobe AB1DK20G-9622 9622 1R11-221 68359 K30322
| Brand: Automann |
| Cross Reference 1: 65367 68359 9 9-9 P 537 8537 9622 9672 W013589617 W01-358-9617 |
| Cross Reference 2: W013589622 W01-358-9622 W013589675 W01-358-9675 W015449622 |
| Cross Reference 3: W01-544-9622 W015449672 W01-544-9672 1R11221 1R11-221 |
| Cross Reference 4: 1R11280 1R11-280 K30322 K303-22 K-303-22 |
| Manufacturer Part Number: AB1DK20G-9622 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1DK20G |
| Firestone Bellows# | 1T15LA-(1), 1T15KW-(1) |
| Goodyear Bellows# | 566-22-3-021 |
| Contitech Bellows# | 9 9-9 |
| Triangle Bellows# | 6397 |
| Load (Lbs) @80 PSI | 5100 |
| Load (Lbs) @100 PSI | 6400 |
| Natural Freq. (CPM) | 103 |
| Design Height (In) | 7.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 1 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | N/A |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 8.19 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS11561 |
| Bumper | No |
| Bracket | AB9618P |
| Min. Height | 3.90 |
| Max. Dia. | 11.40 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 65367 | Air Spring Rolling Lobe |
| Contitech | 68359 | Air Spring Rolling Lobe |
| Contitech | 9 9-9 P 537 | Air Spring Rolling Lobe |
| Firestone | 8537 | Air Spring Rolling Lobe |
| Firestone | 9622 | Air Spring Rolling Lobe |
| Firestone | 9672 | Air Spring Rolling Lobe |
| Firestone | W013589617 | Air Spring Rolling Lobe |
| Firestone | W01-358-9617 | Air Spring Rolling Lobe |
| Firestone | W013589622 | Air Spring Rolling Lobe |
| Firestone | W01-358-9622 | Air Spring Rolling Lobe |
| Firestone | W013589675 | Air Spring Rolling Lobe |
| Firestone | W01-358-9675 | Air Spring Rolling Lobe |
| Firestone | W015449622 | Air Spring Rolling Lobe |
| Firestone | W01-544-9622 | Air Spring Rolling Lobe |
| Firestone | W015449672 | Air Spring Rolling Lobe |
| Firestone | W01-544-9672 | Air Spring Rolling Lobe |
| Goodyear | 1R11221 | Air Spring Rolling Lobe |
| Goodyear | 1R11-221 | Air Spring Rolling Lobe |
| Goodyear | 1R11280 | Air Spring Rolling Lobe |
| Goodyear | 1R11-280 | Air Spring Rolling Lobe |
| Kenworth | K30322 | Air Spring Rolling Lobe |
| Kenworth | K303-22 | Air Spring Rolling Lobe |
| Kenworth | K-303-22 | Air Spring Rolling Lobe |
