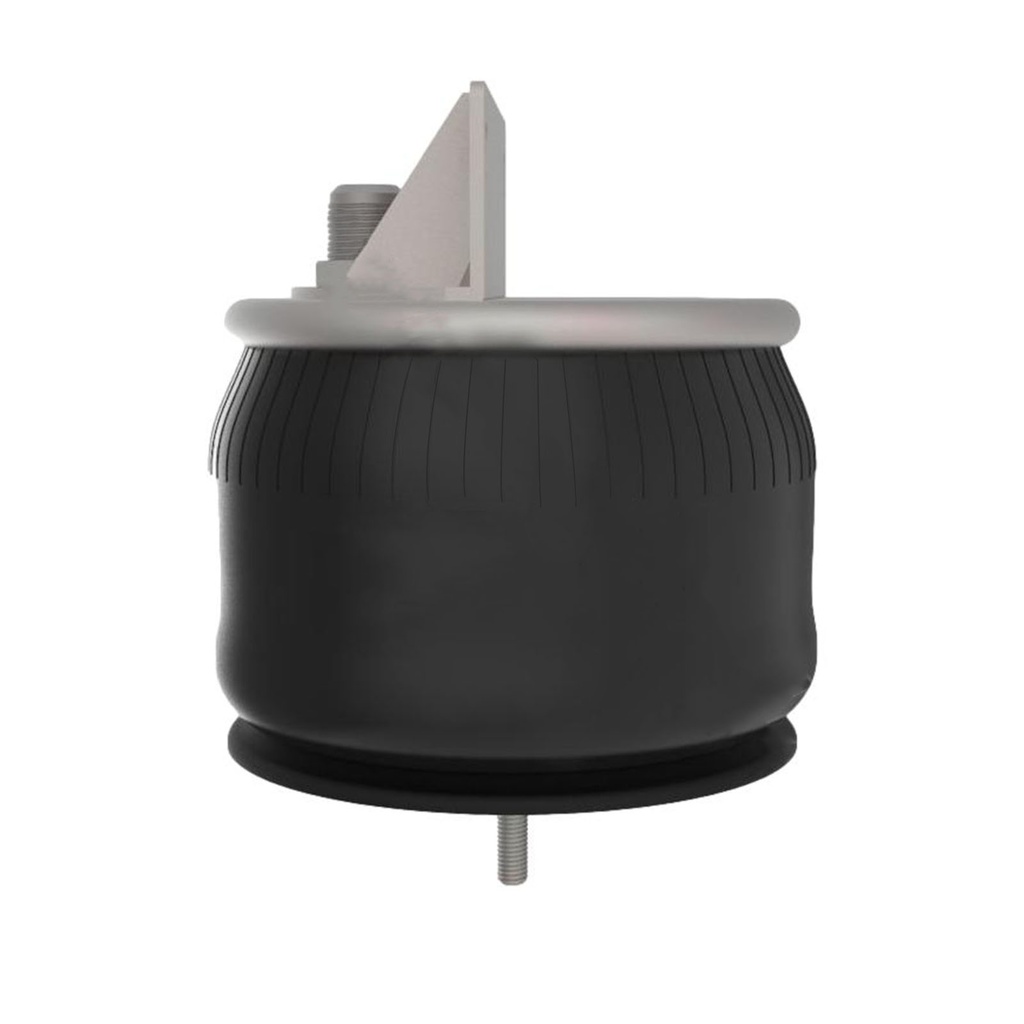

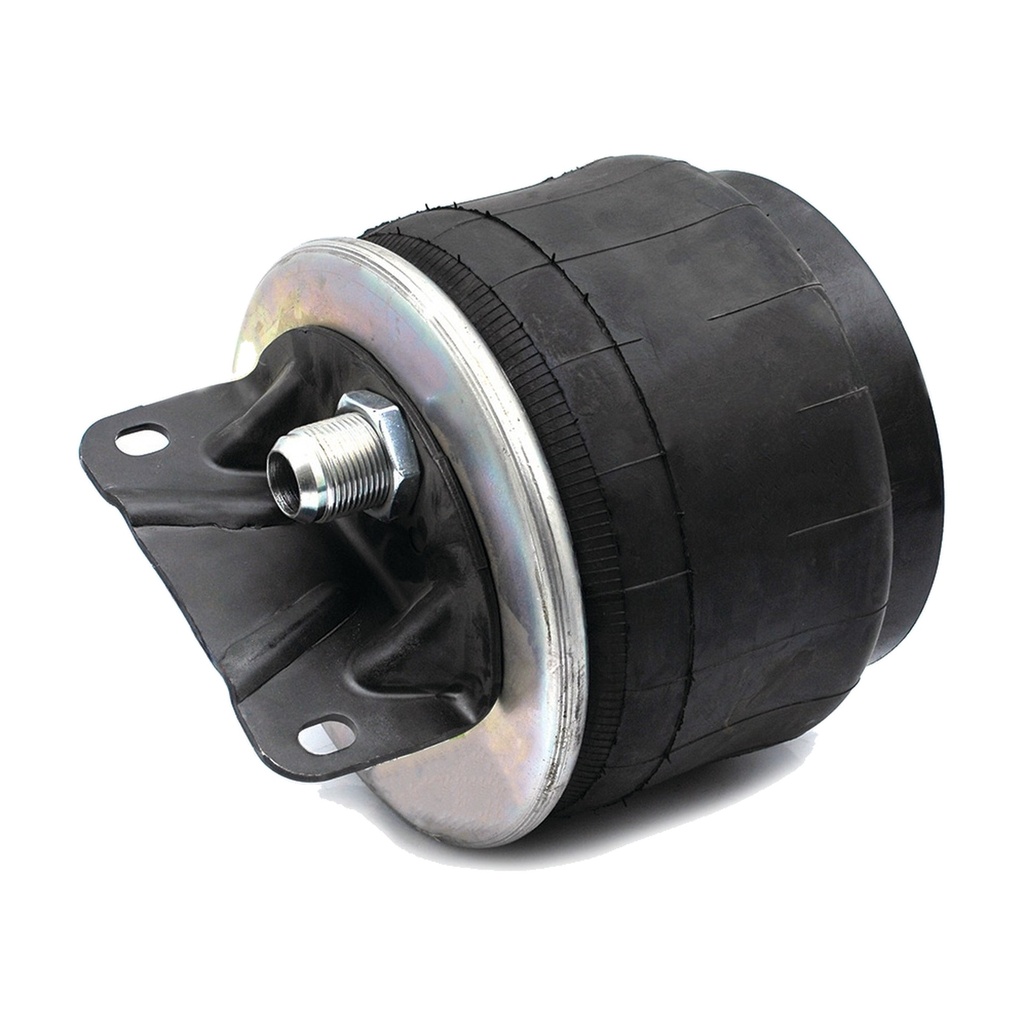

Air Spring Rolling Lobe AB1DK20G-9622 9622 1R11-221 68359 K30322

Price:

$ 135.12
FREE STANDARD SHIPPING. FREE RETURNS
  2. Shop
  3. AFTER MARKET PARTS
  4. Air Spring Rolling Lobe AB1DK20G-9622 9622 1R11-221 68359 K30322
  5. AFTER MARKET PARTS

Air Spring Rolling Lobe AB1DK20G-9622 9622 1R11-221 68359 K30322

(0 review)
$ 135.12 $ 135.12

  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Cross Reference 4
  • Manufacturer Part Number
  We also offer Overnight Shipping option call us at 818-614-9207 for pricing.

FREE 30 DAY RETURN

FREE SHIPPING

ORDERS SHIPPED NEXT DAY
Brand Automann
Cross Reference 1 65367 68359 9 9-9 P 537 8537 9622 9672 W013589617 W01-358-9617
Cross Reference 2 W013589622 W01-358-9622 W013589675 W01-358-9675 W015449622
Cross Reference 3 W01-544-9622 W015449672 W01-544-9672 1R11221 1R11-221
Cross Reference 4 1R11280 1R11-280 K30322 K303-22 K-303-22
Manufacturer Part Number AB1DK20G-9622
Contact Us
Brand: Automann
Cross Reference 1: 65367 68359 9 9-9 P 537 8537 9622 9672 W013589617 W01-358-9617
Cross Reference 2: W013589622 W01-358-9622 W013589675 W01-358-9675 W015449622
Cross Reference 3: W01-544-9622 W015449672 W01-544-9672 1R11221 1R11-221
Cross Reference 4: 1R11280 1R11-280 K30322 K303-22 K-303-22
Manufacturer Part Number: AB1DK20G-9622

Specifications

AttributeValue
TypeRolling Lobe
BrandAutomann Phoenix
Automann Bellows#1DK20G
Firestone Bellows#1T15LA-(1), 1T15KW-(1)
Goodyear Bellows#566-22-3-021
Contitech Bellows#9 9-9
Triangle Bellows#6397
Load (Lbs) @80 PSI5100
Load (Lbs) @100 PSI6400
Natural Freq. (CPM)103
Design Height (In)7.00
Bottom Plate TypePlastic
Top Plate Hole/Stud Qty1
Top Plate Dia. (A)9.00
Top Plate C to C Dia. (B)N/A
Bottom Plate Hole/Stud Qty1
Bottom Plate Dia. (C)8.19
Bottom Plate C to C Dia. (D)N/A
Bottom Part #BS11561
BumperNo
BracketAB9618P
Min. Height3.90
Max. Dia.11.40


Cross Reference

NamePart NumberNotes
Contitech65367Air Spring Rolling Lobe
Contitech68359Air Spring Rolling Lobe
Contitech9 9-9 P 537Air Spring Rolling Lobe
Firestone8537Air Spring Rolling Lobe
Firestone9622Air Spring Rolling Lobe
Firestone9672Air Spring Rolling Lobe
FirestoneW013589617Air Spring Rolling Lobe
FirestoneW01-358-9617Air Spring Rolling Lobe
FirestoneW013589622Air Spring Rolling Lobe
FirestoneW01-358-9622Air Spring Rolling Lobe
FirestoneW013589675Air Spring Rolling Lobe
FirestoneW01-358-9675Air Spring Rolling Lobe
FirestoneW015449622Air Spring Rolling Lobe
FirestoneW01-544-9622Air Spring Rolling Lobe
FirestoneW015449672Air Spring Rolling Lobe
FirestoneW01-544-9672Air Spring Rolling Lobe
Goodyear1R11221Air Spring Rolling Lobe
Goodyear1R11-221Air Spring Rolling Lobe
Goodyear1R11280Air Spring Rolling Lobe
Goodyear1R11-280Air Spring Rolling Lobe
KenworthK30322Air Spring Rolling Lobe
KenworthK303-22Air Spring Rolling Lobe
KenworthK-303-22Air Spring Rolling Lobe
