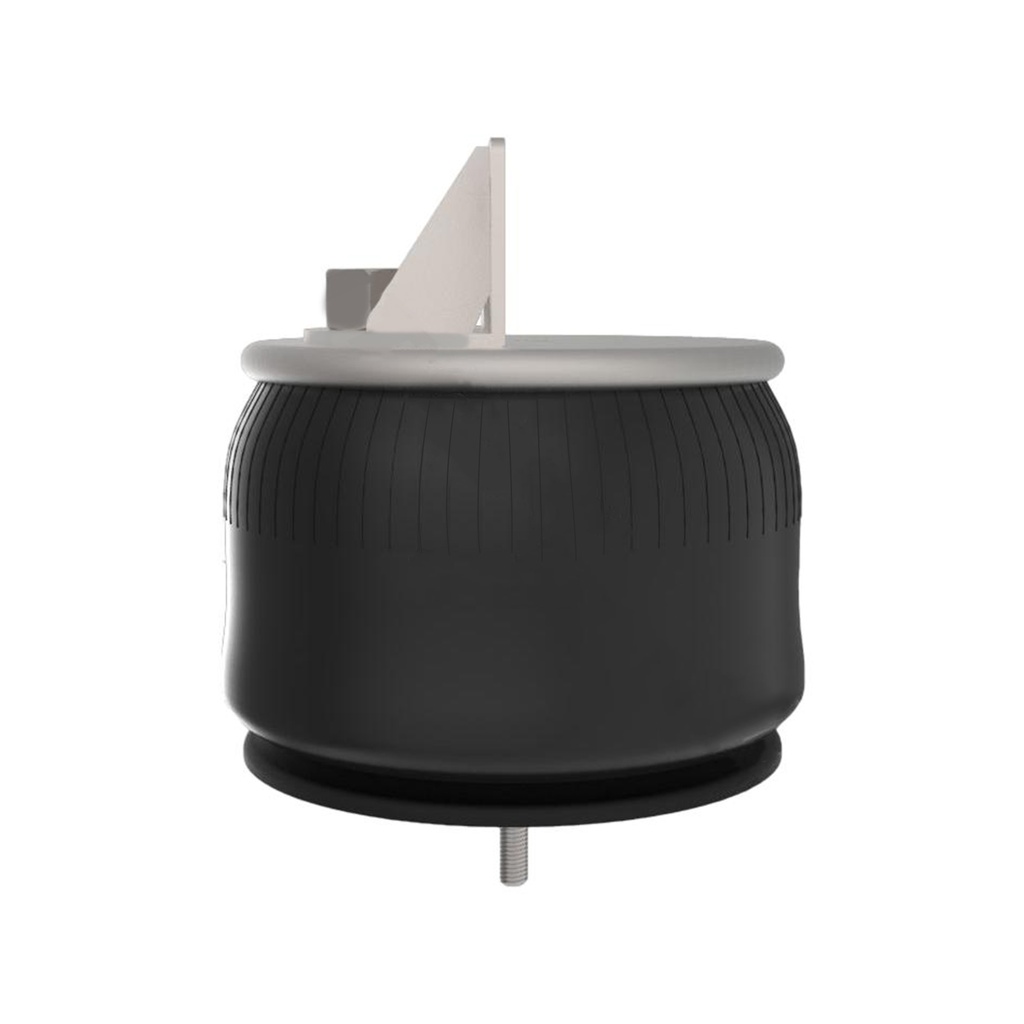

Air Spring Rolling Lobe AB1DK20G-9547 W015449547 9547 68358 9 9-9 P 859 9547 W01




Air Spring Rolling Lobe AB1DK20G-9547 W015449547 9547 68358 9 9-9 P 859 9547 W01
(0 review)

146.46 146.46 USD 146.46


  • Brand
  • Manufacturer Part Number
  • OE/OEM Part Number
  • Other OEM Part Number

This combination does not exist.

Brand: Automann
Manufacturer Part Number: AB1DK20G-9547
OE/OEM Part Number: W01-358-9547 W015449547 W01-544-9547 W015449548 W01-544-9548
Other OEM Part Number: W015449549 W01-544-9549 1R11268 1R11-268 C811004 C81-1004
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck

You Might Also Like these Products

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK20GFirestone Bellows#1T15LA-(1), 1T15KW-(1)Goodyear Bellows#566-22-3-021Contitech Bellows#9 9-9Triangle Bellows#6397Load (Lbs) @80 PSI5100Load (Lbs) @100 PSI6400Natural Freq. (CPM)103Design Height (In)7.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty1Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)N/ABottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)8.19Bottom Plate C to C Dia. (D)N/ABottom #BS11561BumperNoBracketAB9622PMin. Height3.90Max. Dia.11.40Applications Make Series Additional Information Kenworth T660 (No Year)Cross Reference Name Number Notes Firestone9547Air Spring Rolling LobeFirestoneW015449547Air Spring Rolling LobeGoodyear1R11268Air Spring Rolling LobeGoodyear1R11-268Air Spring Rolling Lobe Kenworth C811004Air Spring Rolling Lobe Kenworth C81-1004Air Spring Rolling Lobe
