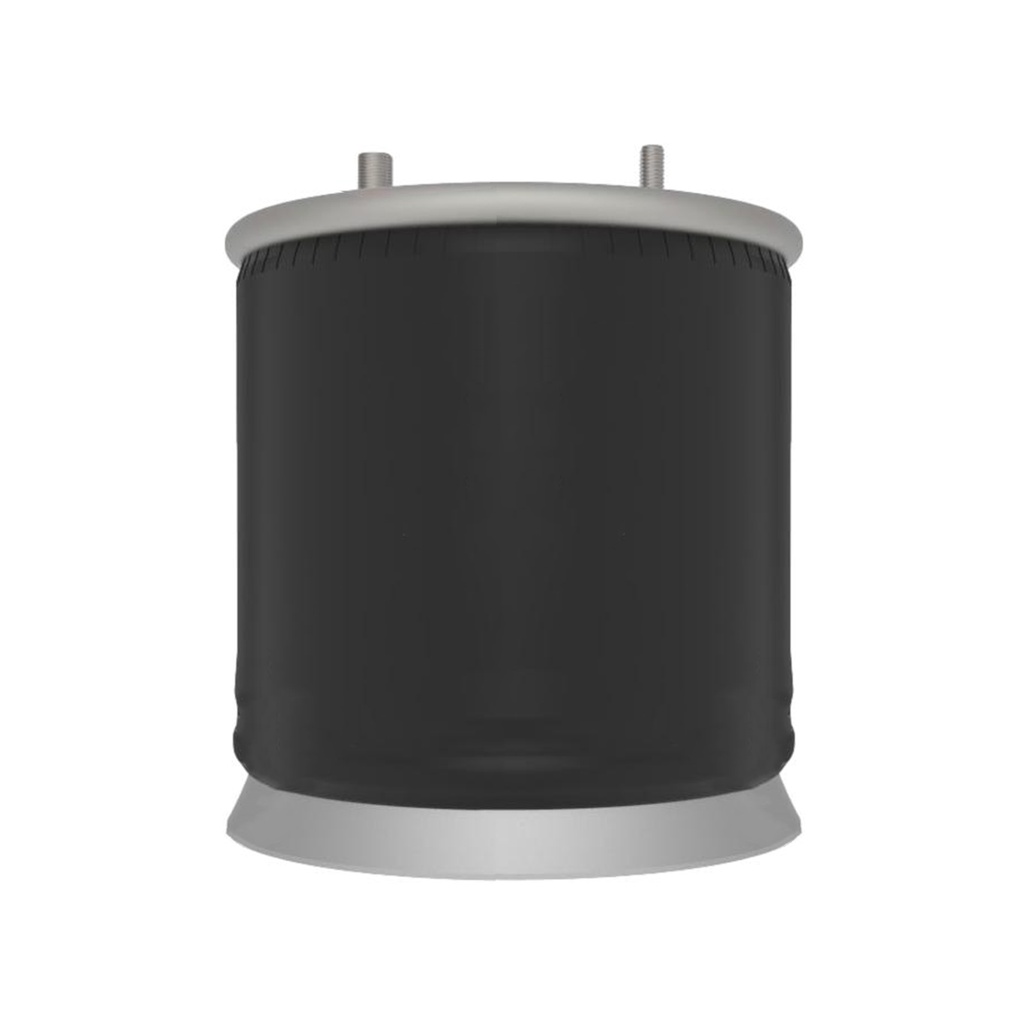

Air Spring Rolling Lobe AB1D28G-9121 1R13-039 161018 9121 9141 W01358921




Air Spring Rolling Lobe AB1D28G-9121 1R13-039 161018 9121 9141 W01358921
(0 review)

174.81 174.81 USD 174.81


  • Brand
  • Cross Reference 1
  • Manufacturer Part Number
  • OE/OEM Part Number
  • Other OEM Part Number
  • Cross Reference

This combination does not exist.

Brand: Automann
Cross Reference 1: S3052C 14667 85101159 AS0013 AS-0013
Manufacturer Part Number: AB1D28G-9121
OE/OEM Part Number: W01-358-9121 1R13039R 1R13-039 1R13047 1R13-047 B3411
Other OEM Part Number: S13160 S-13160 554773C1 SC2040 1138978 90557019 90557052
Cross Reference: 90557083 90557110 90557324 AR11151G 1KK39 2HE106 1003589121C
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck

You Might Also Like these Products

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1D28GFirestone Bellows#1T19F-7, 1T19L-7Goodyear Bellows#566-26-3-051Contitech Bellows#11 10.5-17Triangle Bellows#6365Load (Lbs) @80 PSI7000Load (Lbs) @100 PSI8900Natural Freq. (CPM)70Design Height (In)13.50Bottom Plate Type AluminumTop Plate Hole/Stud Qty2Top Plate Dia. (A)11.31Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty4Bottom Plate Dia. (C)10.25Bottom Plate C to C Dia. (D)7.87Bottom #BS05216BumperYesBracketN/AMin. Height7.00Max. Height22.00Max. Dia.13.70Cross Reference Name Number Notes Contitech64272Air Spring Rolling LobeFirestone9121Air Spring Rolling LobeFirestone9141Air Spring Rolling LobeGoodyear1R13039Air Spring Rolling LobeGoodyear1R13-039Air Spring Rolling LobeGoodyear1R13047Air Spring Rolling LobeGoodyear1R13-047Air Spring Rolling LobeHendricksonS13160Air Spring Rolling LobeIHC554773C1Air Spring Rolling LobeNeway90557019Air Spring Rolling LobeNeway90557052Air Spring Rolling LobeNeway90557078Air Spring Rolling LobeNeway90557083Air Spring Rolling LobeNeway90557110Air Spring Rolling LobeNewayAR11151GAir Spring Rolling LobeOshkosh1KK39Air Spring Rolling LobeOshkosh2HE106Air Spring Rolling LobeReyco1288202Air Spring Rolling LobeRidewell1003589121CAir Spring Rolling Lobe
