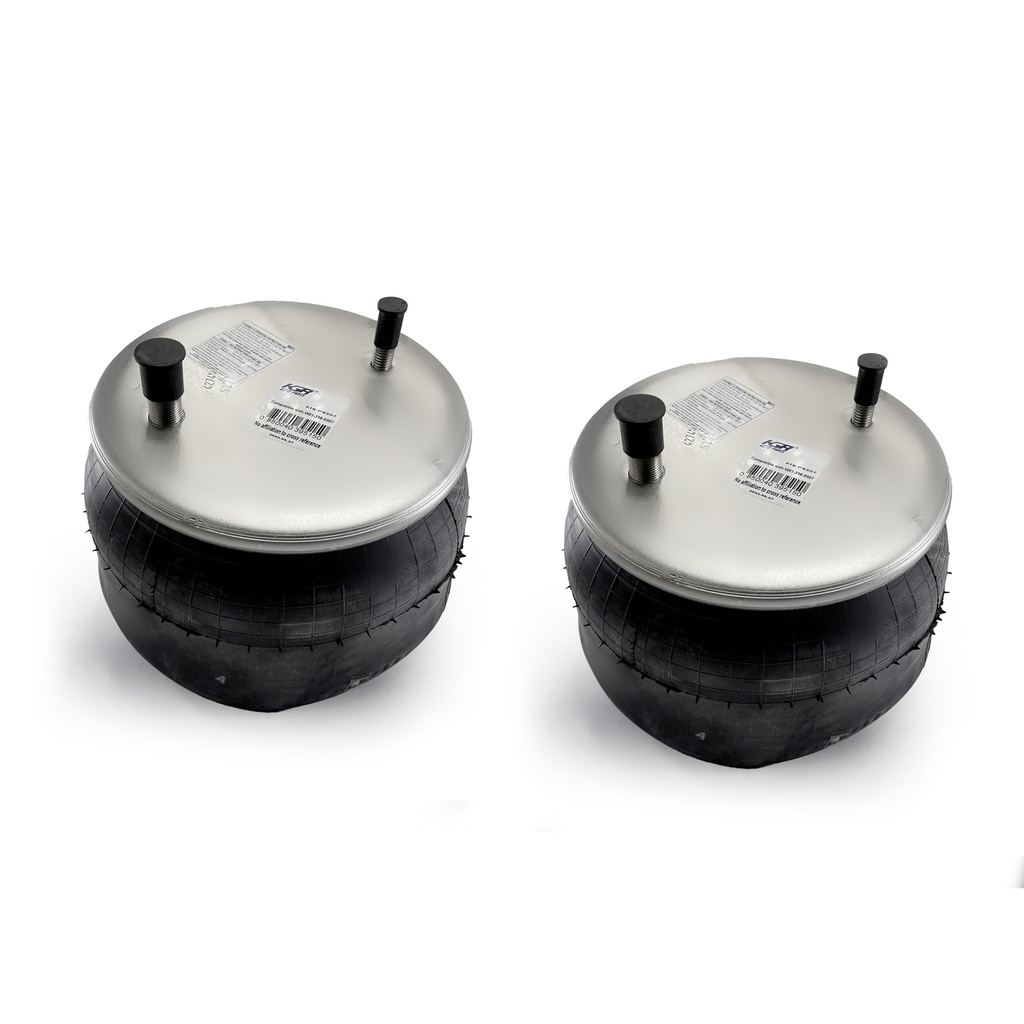

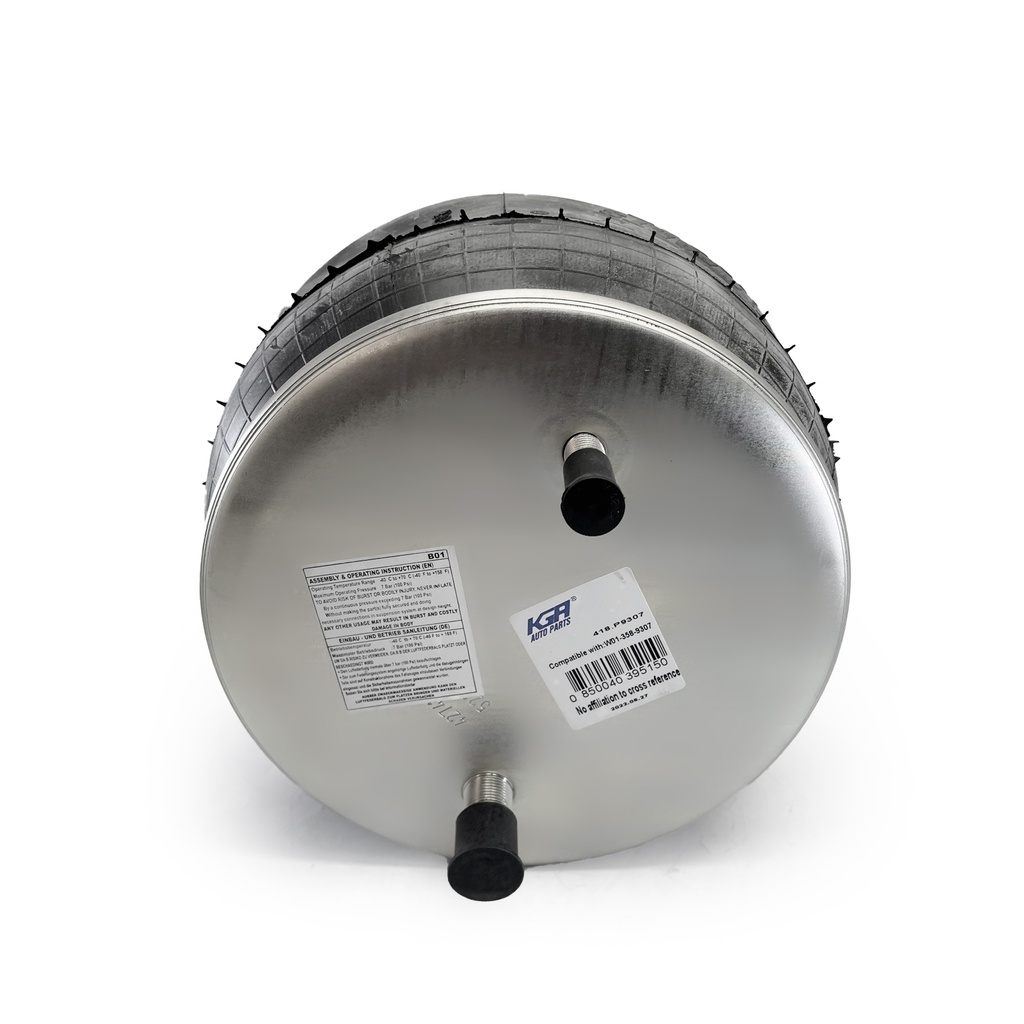

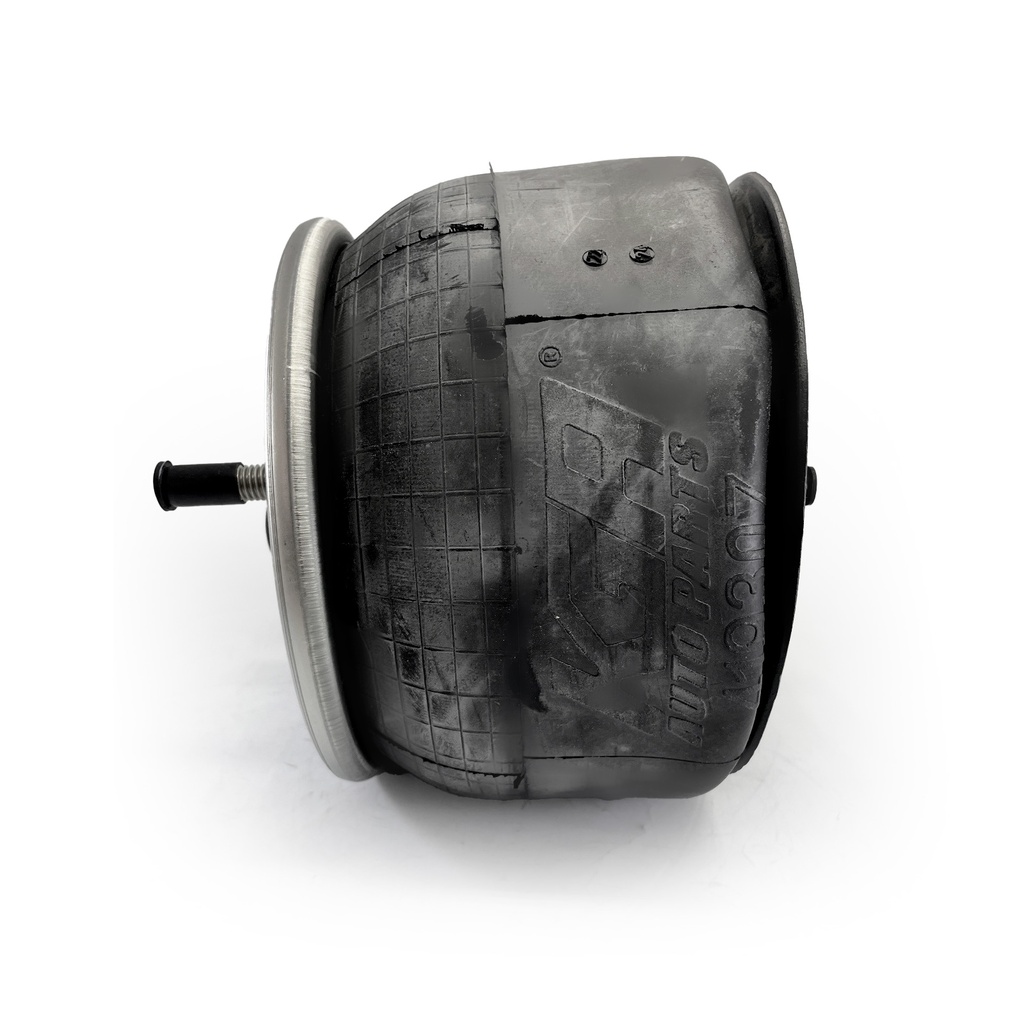

Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1T15M-0.5 |
| Firestone Bellows# | 566-24-3-067 |
| Goodyear Bellows# | 9 10-10 |
| Contitech Bellows# | 6360 |
| Triangle Bellows# | 5700 |
| Load (Lbs) @80 PSI | 7200 |
| Load (Lbs) @100 PSI | 81 |
| Natural Freq. (CPM) | 7.50 |

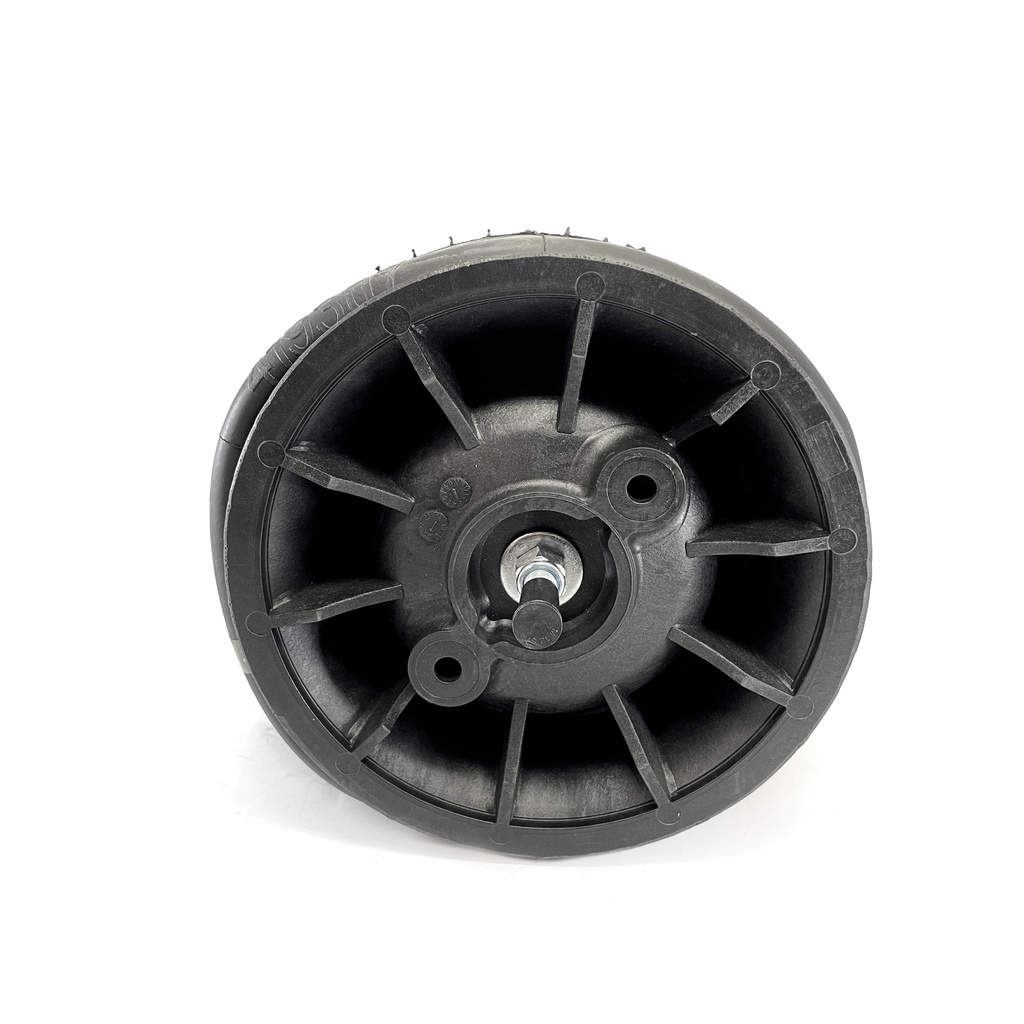

| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | N/A |
| Bottom Part # | BS08127 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 5.10 |
| Max. Height | 12.90 |
| Max. Dia. | 12.60 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 64439 | Air Spring Rolling Lobe |
| Contitech | 67490 | Air Spring Rolling Lobe |
| Contitech | 9 10-10.5 P 883 | Air Spring Rolling Lobe |
| Contitech | 910-10P471 | Air Spring Rolling Lobe |
| Firestone | 9307 | Air Spring Rolling Lobe |
| Firestone | W013589307 | Air Spring Rolling Lobe |
| Firestone | W01-358-9307 | Air Spring Rolling Lobe |
| Goodyear | 1R12095 | Air Spring Rolling Lobe |
| Goodyear | 1R12-095 | Air Spring Rolling Lobe |
| Goodyear | 1R12435 | Air Spring Rolling Lobe |
| Goodyear | 1R12-435 | Air Spring Rolling Lobe |
| Reyco | 17360-01 | Air Spring Rolling Lobe |
| SAF Holland | 90557129 | Air Spring Rolling Lobe |
