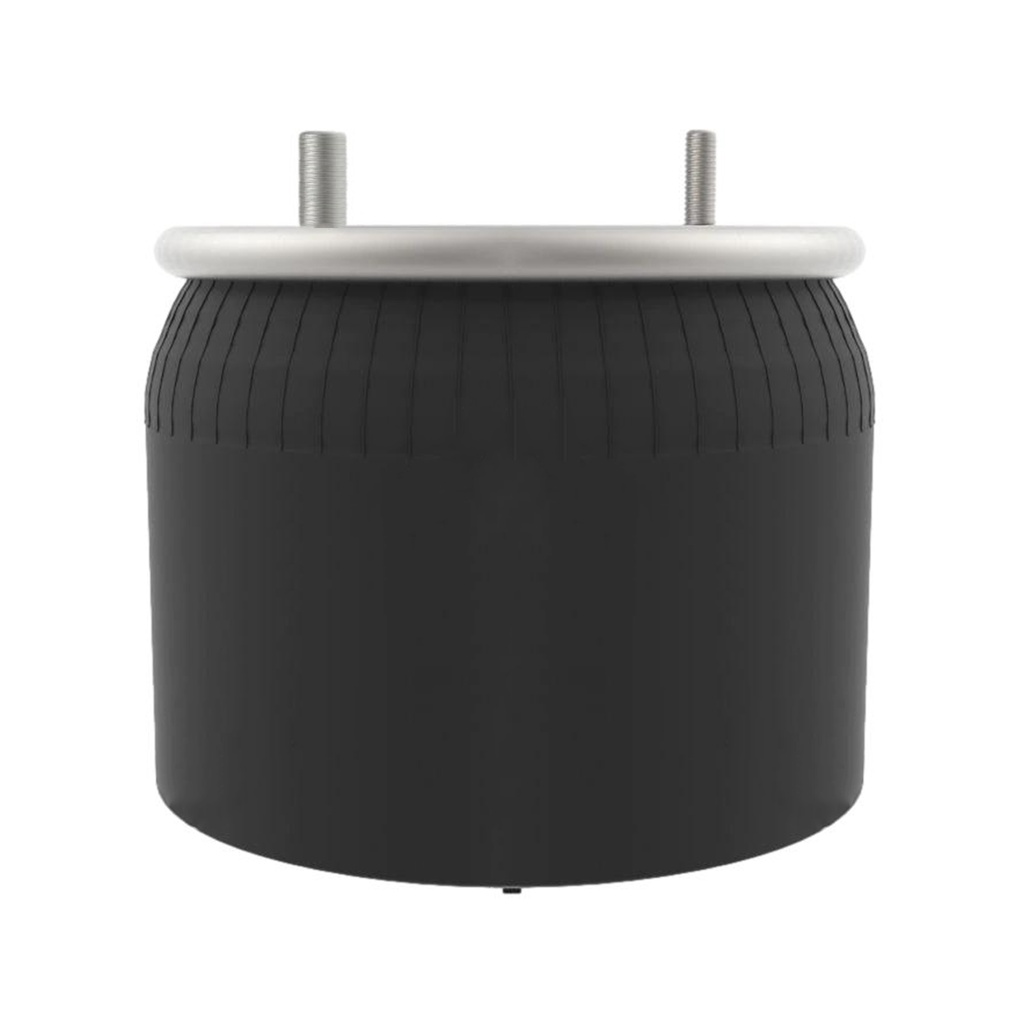

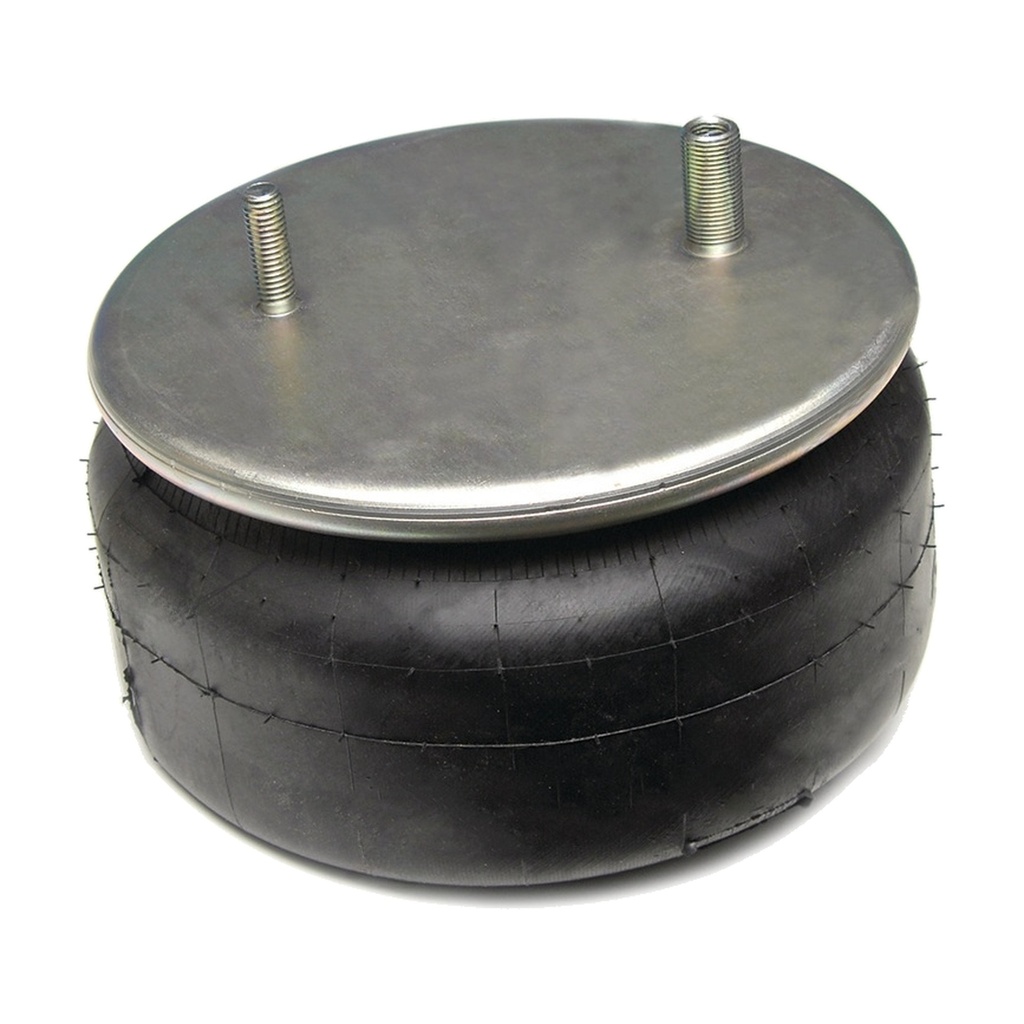

Air Spring Rolling Lobe 410.P8729 W01-358-8729 64220 1R13-261 RL87290 2298729200
| Brand: KGA |
| Manufacturer Part Number: 418.P8729 |
| OE/OEM Part Number: 10 10.5AV-12 P 513 10 10.5C-13 P 1226 64220 75741 77963 |
| Other OEM Part Number: W013588729 W01-358-8729 1R13130 1R13-130 1R13261 |
| Cross Reference: 1R13-261 G2298729200 RL87290 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK25D |
| Firestone Bellows# | 1T17CD-3 |
| Goodyear Bellows# | 566-26-3-055 |
| Contitech Bellows# | 10 10A-12 |
| Triangle Bellows# | 7800 |
| Load (Lbs) @80 PSI | 9900 |
| Load (Lbs) @100 PSI | 103 |
| Natural Freq. (CPM) | 7.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 10.20 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.24 |
| Bottom Plate C to C Dia. (D) | - |
| Bottom Part # | BS17517 |
| Bottom Plate Alignment | - |
| Bumper | Yes |
| Bracket | No |
| Min. Height | 4.65 |
| Max. Height | 14.00 |
| Max. Dia. | 13.48 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 10 10.5AV-12 P 513 | Air Spring Rolling Lobe |
| Contitech | 10 10.5C-13 P 1226 | Air Spring Rolling Lobe |
| Contitech | 64220 | Air Spring Rolling Lobe |
| Contitech | 75741 | Air Spring Rolling Lobe |
| Contitech | 77963 | Air Spring Rolling Lobe |
| Firestone | 8729 | Air Spring Rolling Lobe |
| Firestone | W013588729 | Air Spring Rolling Lobe |
| Firestone | W01-358-8729 | Air Spring Rolling Lobe |
| Goodyear | 1R13130 | Air Spring Rolling Lobe |
| Goodyear | 1R13-130 | Air Spring Rolling Lobe |
| Goodyear | 1R13261 | Air Spring Rolling Lobe |
| Goodyear | 1R13-261 | Air Spring Rolling Lobe |
| Neway | G2298729200 | Air Spring Rolling Lobe |
| Paccar | RL87290 | Air Spring Rolling Lobe |
