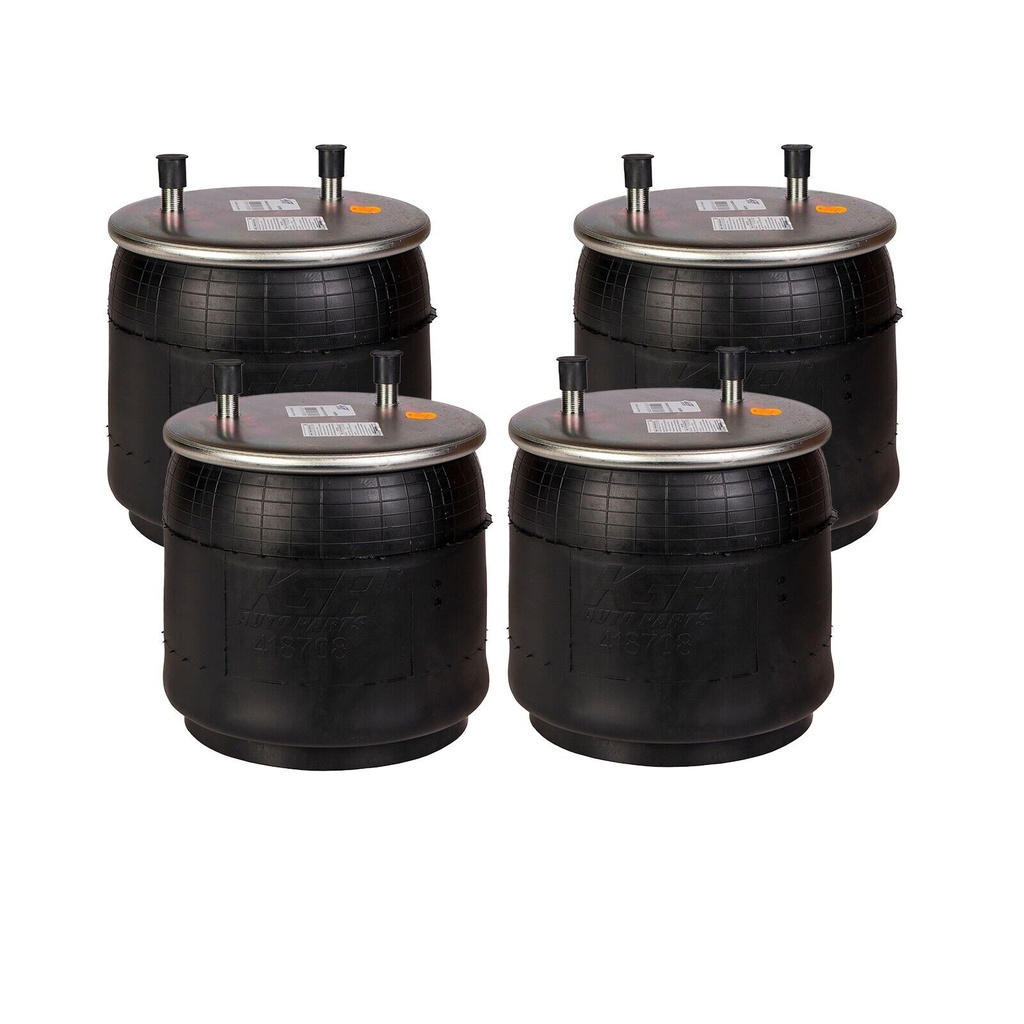

Air Spring Rolling Lobe 410.P8708 W01-358-8708 (Pack of 4)
| Brand: KGA |
| Manufacturer Part Number: 410.P8708 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK25EFirestone Bellows#1T17CA-6.5Goodyear Bellows#566-26-3-080Contitech Bellows#10 10-16Triangle Bellows#6382Load (Lbs) @80 PSI6760Load (Lbs) @100 PSI8450Natural Freq. (CPM)75Design Height (In)11Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)10.20Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)9.25Bottom Plate C to C Dia. (D)N/ABottom #BS15733BumperYesBracketN/AMin. Height8.5Max. Height20.5Max. Dia.13.7Cross Reference Name Number Notes Firestone8708Air Spring Rolling LobeFirestoneW013588708Air Spring Rolling LobeFirestoneW01-358-8708Air Spring Rolling LobeFirestoneW014558708Air Spring Rolling LobeFirestoneW01-455-8708Air Spring Rolling Lobe
