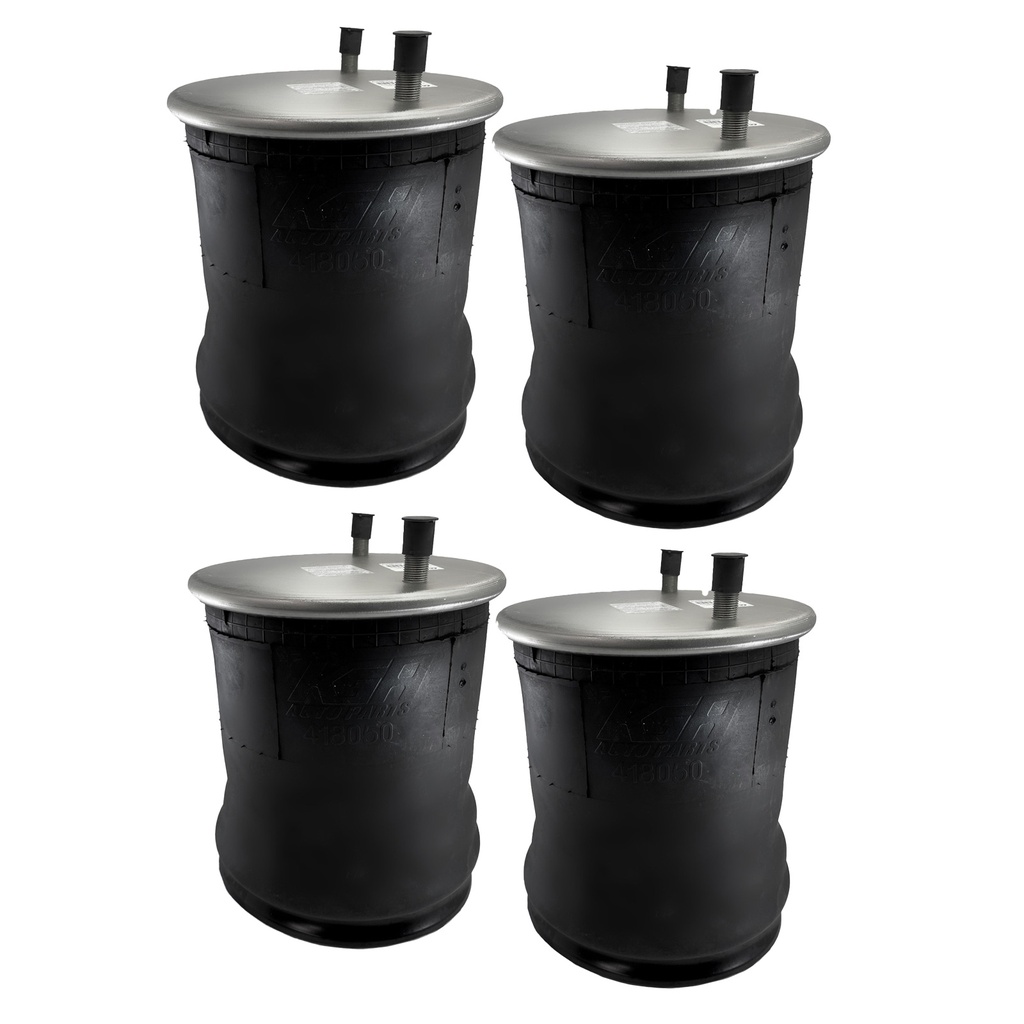

Air Spring Rolling Lobe 410.M8050 W01-358-5523 64254 1R14-039 Pack of 4
| Brand: KGA |
| Cross Reference 1: 1R14083 1R14-083 B12514013 B-12514-013 B4771 B-4771 |
| Cross Reference 2: S12514013 S-12514-013 S3651413 S-36514-13 1685174C1 |
| Cross Reference 3: SC2052 57008050 G2298050400 2363101 23631-01 |
| Cross Reference 4: 3130498 3918342 AS0039 AS-0039 |
| Manufacturer Part Number: 410.M8050 |
| OE/OEM Part Number: 11 10.5C-16 A 320 160994 161455 64254 5523 8050 |
| Other OEM Part Number: W013585523 W01-358-5523 W013588050 1R14-039 1R14039 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK28A |
| Firestone Bellows# | 1T19ZK-5.7 |
| Goodyear Bellows# | 566-28-3-015 |
| Contitech Bellows# | 11 10.5C-16 |
| Triangle Bellows# | 8200 |
| Load (Lbs) @80 PSI | 10400 |
| Load (Lbs) @100 PSI | 82 |
| Natural Freq. (CPM) | 10.00 |
| Bottom Plate Type | Aluminum |

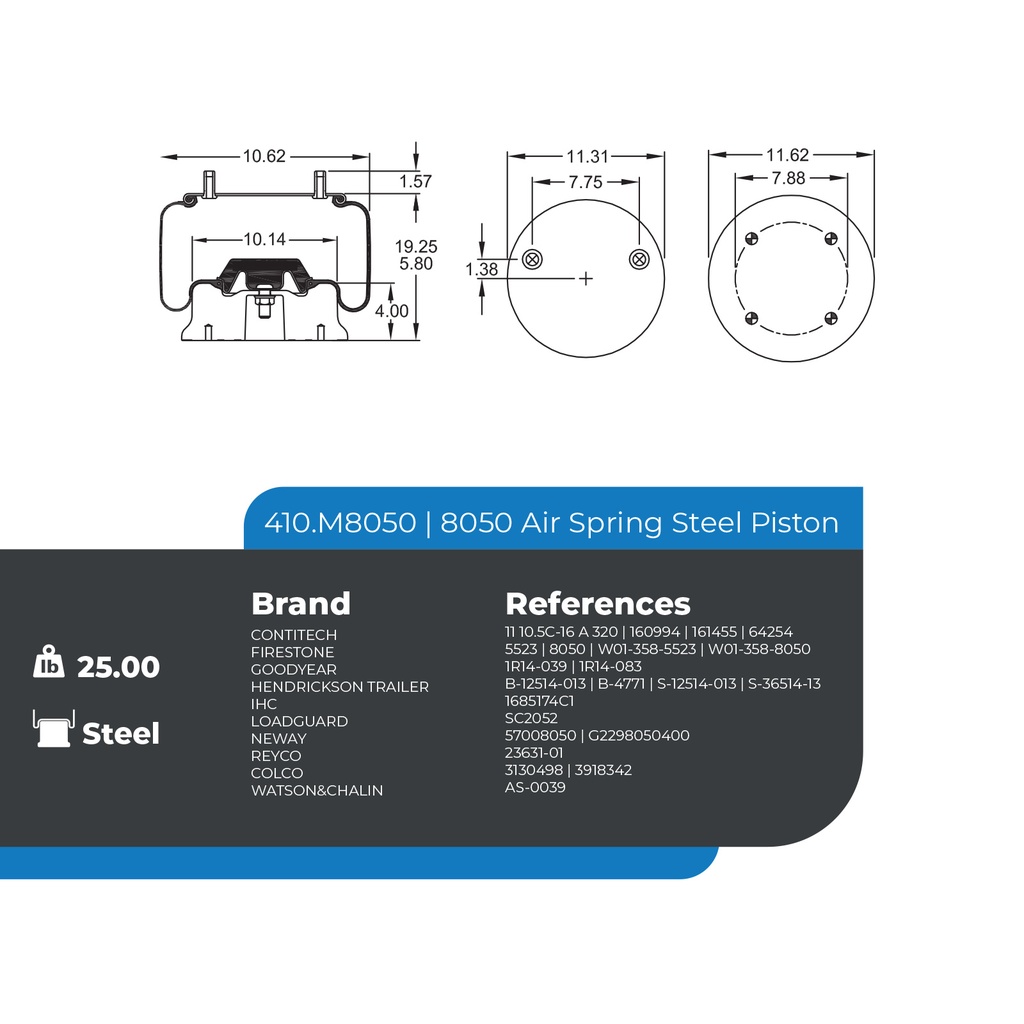

| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 11.31 |
| Top Plate C to C Dia. (B) | 7.75 |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 7.87 |
| Bottom Plate C to C Dia. (D) | 5.56 |
| Bottom Part # | BS14352 |
| Bottom Plate Alignment | Parallel |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 5.40 |
| Max. Height | 18.40 |
| Max. Dia. | 14.700 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 11 10.5C-16 A 320 | Air Spring Rolling Lobe |
| Contitech | 160994 | Air Spring Rolling Lobe |
| Contitech | 161455 | Air Spring Rolling Lobe |
| Contitech | 64254 | Air Spring Rolling Lobe |
| Firestone | 5523 | Air Spring Rolling Lobe |
| Firestone | 8050 | Air Spring Rolling Lobe |
| Firestone | W013585523 | Air Spring Rolling Lobe |
| Firestone | W01-358-5523 | Air Spring Rolling Lobe |
| Firestone | W013588050 | Air Spring Rolling Lobe |
| Firestone | W01-358-8050 | Air Spring Rolling Lobe |
| Goodyear | 1R14-039 | Air Spring Rolling Lobe |
| Goodyear | 1R14039 | Air Spring Rolling Lobe |
| Goodyear | 1R14083 | Air Spring Rolling Lobe |
| Goodyear | 1R14-083 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B12514013 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B-12514-013 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B4771 | Air Spring Rolling Lobe |
| Hendrickson Trailer | B-4771 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S12514013 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S-12514-013 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S3651413 | Air Spring Rolling Lobe |
| Hendrickson Trailer | S-36514-13 | Air Spring Rolling Lobe |
| IHC | 1685174C1 | Air Spring Rolling Lobe |
| Loadguard | SC2052 | Air Spring Rolling Lobe |
| Neway | 57008050 | Air Spring Rolling Lobe |
| Neway | G2298050400 | Air Spring Rolling Lobe |
| Reyco | 2363101 | Air Spring Rolling Lobe |
| Reyco | 23631-01 | Air Spring Rolling Lobe |
| Volvo | 3130498 | Air Spring Rolling Lobe |
| Volvo | 3918342 | Air Spring Rolling Lobe |
| Watson&Chalin | AS0039 | Air Spring Rolling Lobe |
| Watson&Chalin | AS-0039 | Air Spring Rolling Lobe |
