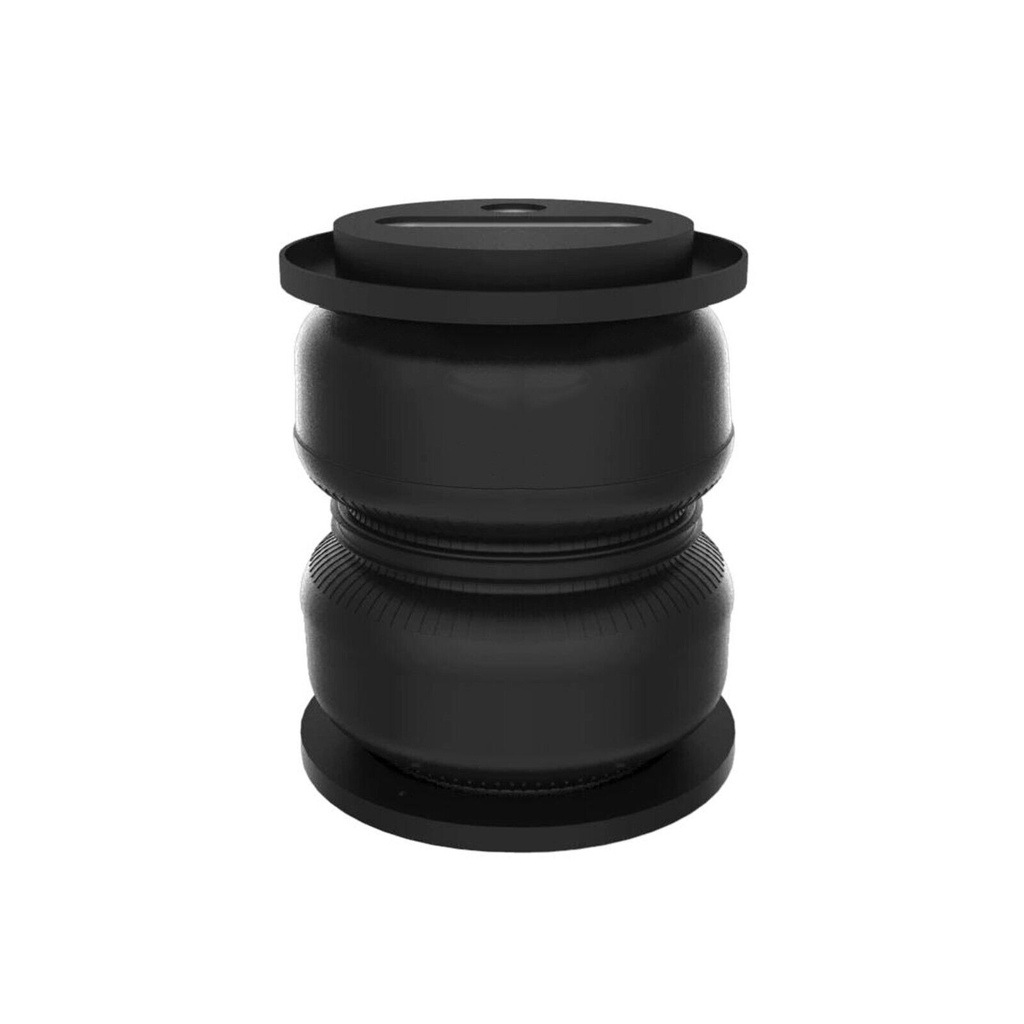

Air Spring Double Convoluted ABSP2B06RD-C766 2B6-535 66094 P10754U
| Brand: Automann |
| Manufacturer Part Number: ABSP2B06RD-C766 |
| Cross Reference: 2B6-535 66094 P10754U 2B6535 FD110-15766 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Double Convoluted |
| Brand | Automann Phoenix |
| Automann Bellows# | SP2B06RD |
| Firestone Bellows# | 255-1.5, 267-1.5 |
| Goodyear Bellows# | 579-92-3-515 |
| Contitech Bellows# | FD 110-15 |
| Load (Lbs) @80 PSI | 1840 |
| Load (Lbs) @100 PSI | 2300 |
| Natural Freq. (CPM) | 126 |
| Design Height (In) | 6.00 |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 5.50 |
| Top Plate C to C Dia. (B) | 2.75 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 5.50 |
| Bottom Plate C to C Dia. (D) | 2.75" |
| Bumper | No |
| Min. Height | 2.60 |
| Max. Height | 9.10 |
| Max. Dia. | 8.00 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 66094 | Air Spring Double Convoluted |
| Contitech | FD110-15766 | Air Spring Double Convoluted |
| Goodyear | 2B6535 | Air Spring Double Convoluted |
| Goodyear | 2B6-535 | Air Spring Double Convoluted |
