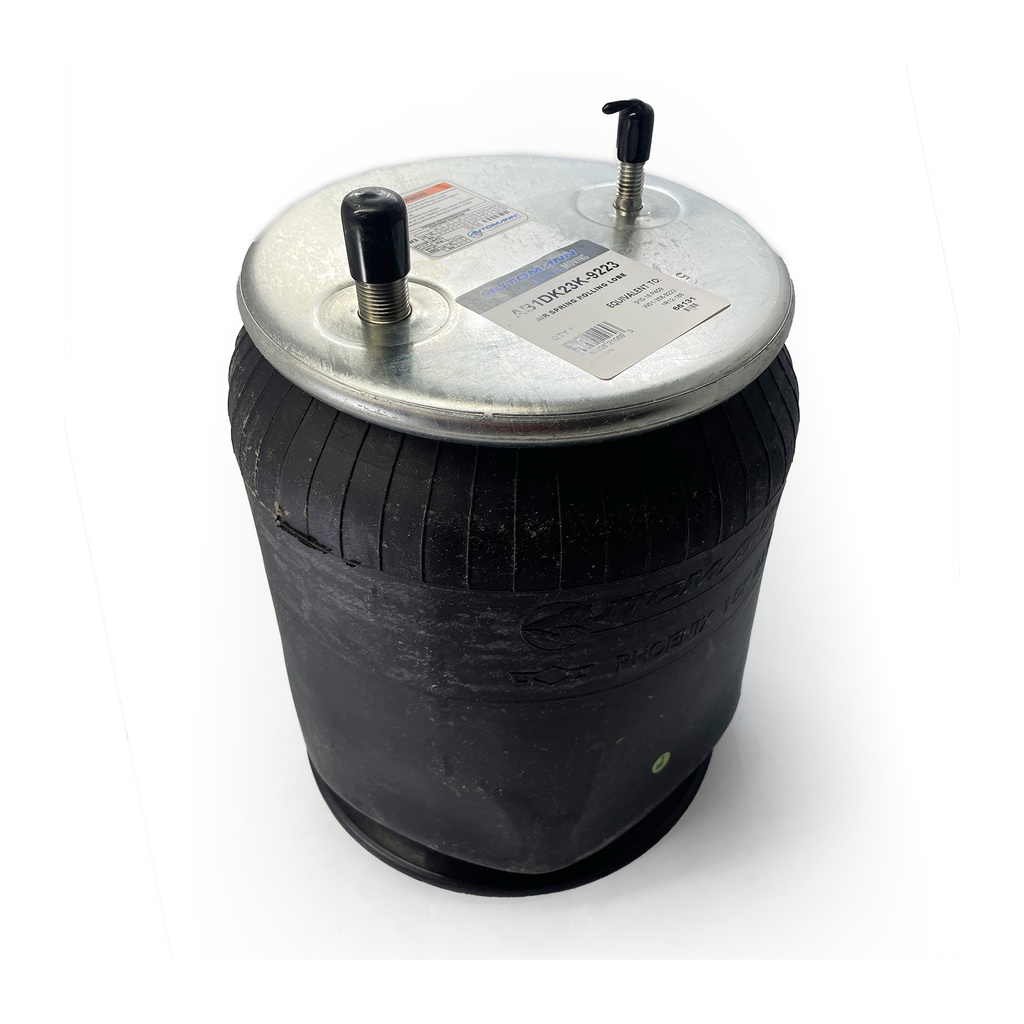

Air Spring Rolling Lobe AB1DK23K-9223 1R12188 64275 48195000 1288401 9233
| Brand: Automann |
| Cross Reference 1: W01-358-9223 W017559223 W01-755-9223 |
| Cross Reference 2: 1R12188 1R12-188 1R12903 1R12-903 |
| Cross Reference 3: 48195 48195000 48195-000 48195-2 57009223 |
| Cross Reference 4: 1288401 12884-01 12884-01A 1003589223C |
| Manufacturer Part Number: AB1DK23K-9223 |
| Cross Reference: 64275 910-16P409 9223 W013589223 |
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications Attribute Value Type Rolling LobeAutomann Bellows#1DK23KGoodyear Bellows#566-24-3-038Contitech Bellows#9 10-16Triangle Bellows#6363Load (Lbs) @80 PSI5900Load (Lbs) @100 PSI7500Natural Freq. (CPM)64Design Height (In)11.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty2Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)5.50Bottom Plate Hole/Stud Qty2Bottom Plate Dia. (C)10.00Bottom Plate C to C Dia. (D)4.12Bottom #BS08663BumperYesBracketN/AMin. Height7.20Max. Height20.70Max. Dia.12.60Cross Reference Name Number Notes Firestone9223Air Spring Rolling LobeGoodyear1R12188Air Spring Rolling LobeGoodyear1R12-188Air Spring Rolling LobeHendrickson48195Air Spring Rolling LobeHendrickson48195000Air Spring Rolling Lobe
