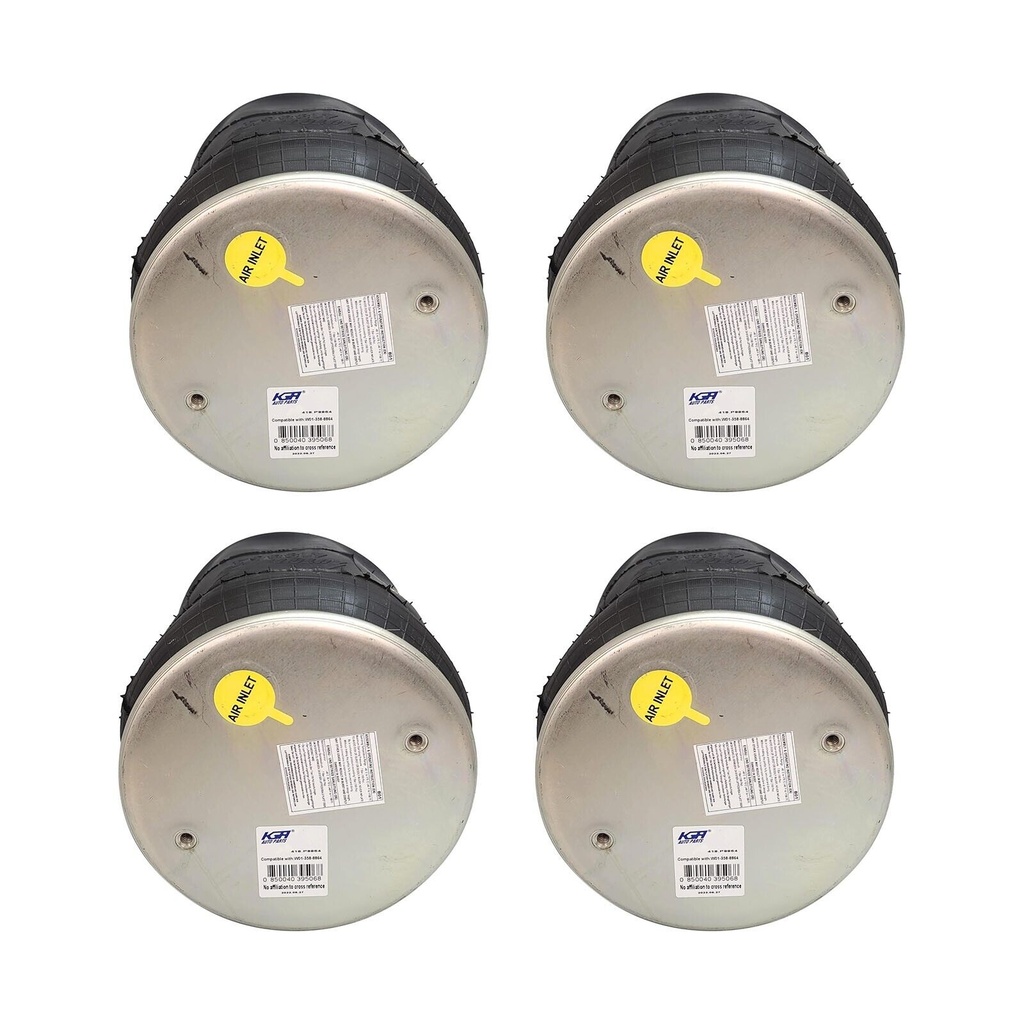

Air Spring Rolling Lobe 410.P8864 W01-358-8864 66666 C81-1013 03-08716(Pack of4)




Air Spring Rolling Lobe 410.P8864 W01-358-8864 66666 C81-1013 03-08716(Pack of4)
(0 review)

283.49 283.49 USD 283.49


  • Brand
  • Cross Reference 1
  • Cross Reference 2
  • Cross Reference 3
  • Manufacturer Part Number
  • Cross Reference

This combination does not exist.

Brand: KGA
Cross Reference 1: W016875470 W01-687-5470 W017038863 W01-703-8863 W017038864
Cross Reference 2: W01-703-8864 W017038865 W01-703-8865 1R121097 1R12-1097
Cross Reference 3: C811011 C81-1011 C811013 C81-1013 0308716 03-08716 308716
Manufacturer Part Number: 410.P8864
Cross Reference: 66666 9 10-19 p 898 8864 8865 W013588864 W01-358-8864
Return Policy
30 Days Return
Free Shipping
 1-2 Days Handling

We also offer Overnight Shipping option call us at 818-614-9207 for pricing

If you are not sure about the part number, you need better assist you in finding the correct part; please provide

YEAR, MAKE,  MODEL and  Last eight digits of (VIN)  OR (ESN) ENGINE SERIAL NUMBER

Contact us for Correct part for your truck

You Might Also Like these Products

Specifications Attribute Value Type Rolling LobeAutomann Bellows#1T15M-9Goodyear Bellows#9 10-19Contitech Bellows#6364Triangle Bellows#5600Load (Lbs) @80 PSI7100Load (Lbs) @100 PSI65Natural Freq. (CPM)16.00Bottom Plate Type PlasticTop Plate Hole/Stud Qty3Top Plate Dia. (A)9.00Top Plate C to C Dia. (B)6.20Bottom Plate Hole/Stud Qty1Bottom Plate Dia. (C)N/ABottom #BS08765BumperNoBracketN/AMin. Height7.80Max. Height25.20Max. Dia.12.60Cross Reference Name Number Notes Contitech66666Air Spring Rolling LobeContitech9 10-19 P 898Air Spring Rolling LobeFirestone8864Air Spring Rolling LobeFirestone8865Air Spring Rolling LobeFirestoneW013588864Air Spring Rolling LobeFirestoneW01-358-8864Air Spring Rolling LobeFirestoneW016875470Air Spring Rolling LobeFirestoneW01-687-5470Air Spring Rolling LobeFirestoneW017038863Air Spring Rolling LobeFirestoneW01-703-8863Air Spring Rolling LobeFirestoneW017038864Air Spring Rolling LobeFirestoneW01-703-8864Air Spring Rolling LobeFirestoneW017038865Air Spring Rolling LobeFirestoneW01-703-8865Air Spring Rolling LobeGoodyear1R121097Air Spring Rolling LobeGoodyear1R12-1097Air Spring Rolling Lobe Kenworth C811011Air Spring Rolling Lobe Kenworth C81-1011Air Spring Rolling Lobe Kenworth C811013Air Spring Rolling Lobe Kenworth C81-1013Air Spring Rolling LobePeterbilt0308716Air Spring Rolling LobePeterbilt03-08716Air Spring Rolling LobePeterbilt308716Air Spring Rolling Lobe
