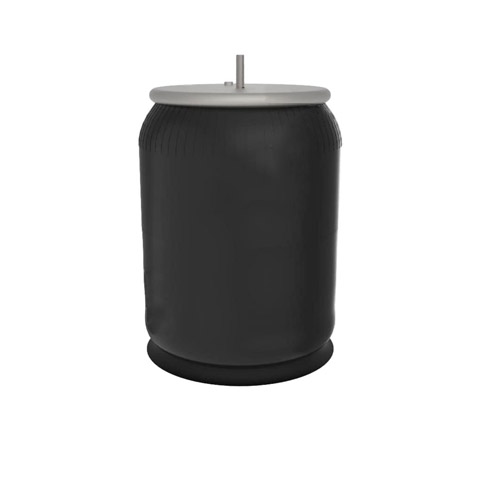

Air Spring For VOLVO AB1DF23H-P1206, 21132005, AS8468,1R12-654
| Brand: Continental |
| Cross Reference 1: 1R121049 1R12-1049 1R12654 1R12-654 |
| Cross Reference 2: 21244322 21669088 21132004 21132005 |
| Manufacturer Part Number: AS 8468 |
| Cross Reference: 75561 9 10S-17 P 1206 8468 W01M3588468 W01M588468 W01-M58-8468 |
30 Days Return
Free Shipping
1-2 Days Handling
We also offer Overnight Shipping option call us at 818-614-9207 for pricing
ATTENTION!!
If you are not sure about the part number, you need better assist you in finding the correct part; please provide
YEAR, MAKE, MODEL and Last eight digits of (VIN) OR (ESN) ENGINE SERIAL NUMBER
Contact us for Correct part for your truck
Specifications
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1DF23H |
| Firestone Bellows# | 1T15XMR-7 |
| Goodyear Bellows# | 566-24-3-097 |
| Contitech Bellows# | 9 10S-17 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 2.75 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.04 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS14556 |
| Bumper | No |
| Bracket | No |
| Min. Height | 6.90 |
| Max. Height | 23.00 |
| Max. Dia. | 12.60 |
Series
| Make | Series | Additional Information |
|---|---|---|
| Volvo/White | VNL 670 Gen 2 (2003-2019) (No Year) |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 75561 | Air Spring Rolling Lobe |
| Contitech | 9 10S-17 P 1206 | Air Spring Rolling Lobe |
| Firestone | 8468 | Air Spring Rolling Lobe |
| Firestone | W01M3588468 | Air Spring Rolling Lobe |
| Firestone | W01M588468 | Air Spring Rolling Lobe |
| Firestone | W01-M58-8468 | Air Spring Rolling Lobe |
| GoodYear | 1R121049 | Air Spring Rolling Lobe |
| GoodYear | 1R12-1049 | Air Spring Rolling Lobe |
| GoodYear | 1R12654 | Air Spring Rolling Lobe |
| GoodYear | 1R12-654 | Air Spring Rolling Lobe |
| Mack | 21244322 | Air Spring Rolling Lobe |
| Mack | 21669088 | Air Spring Rolling Lobe |
| Volvo | 21132004 | Air Spring Rolling Lobe |
| Volvo | 21132005 | Air Spring Rolling Lobe |
