Specifications
| Attribute | Value |
|---|---|

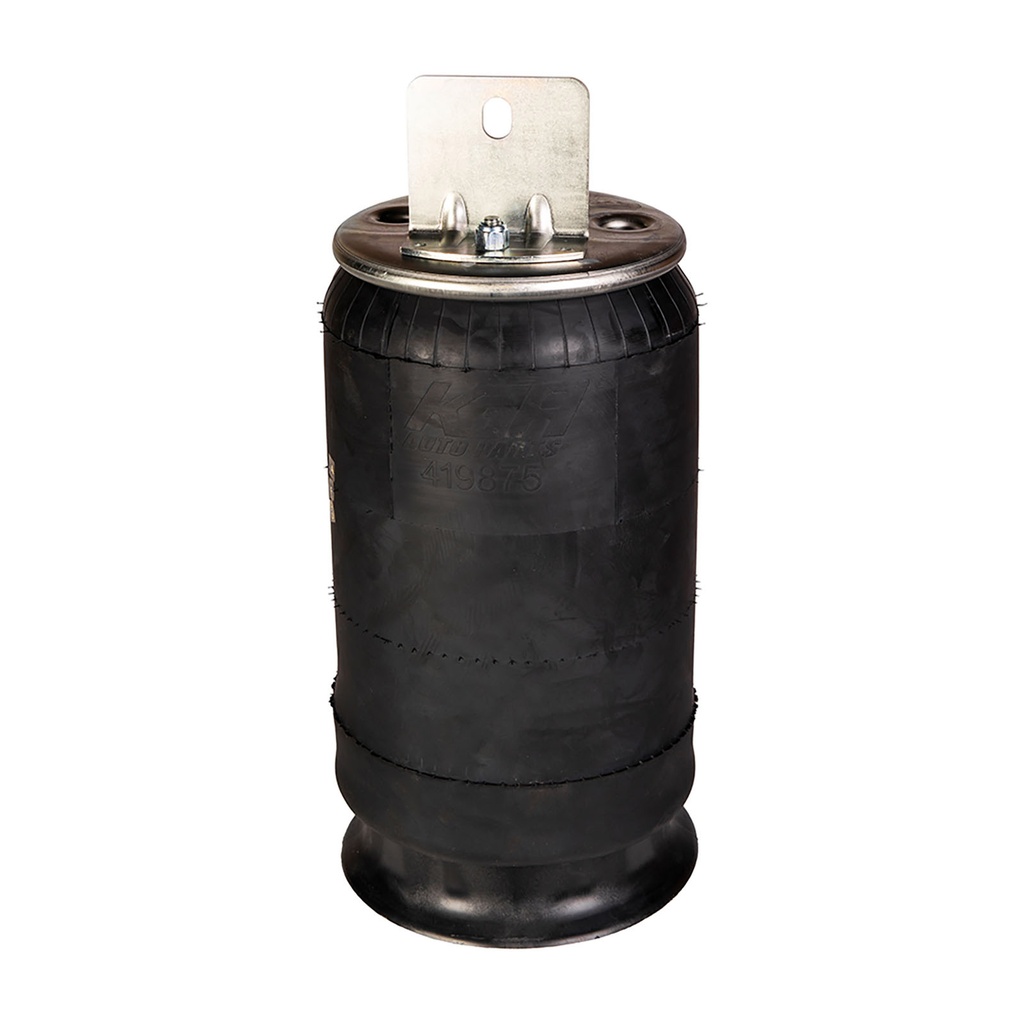

| Type | Rolling Lobe |
| Automann Bellows# | 1DF23I |
| Firestone Bellows# | 1T15XR-9 |
| Goodyear Bellows# | 566-24-3-165 |
| Contitech Bellows# | 9 10S-18 |
| Load (Lbs) @80 PSI | 5900 |
| Load (Lbs) @100 PSI | 7500 |
| Natural Freq. (CPM) | 57 |
| Design Height (In) | 14 |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 5.87 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Part # | BS16239 |
| Bumper | No |
| Bracket | AB9875P |
| Min. Height | 12.6 |
| Max. Height | 6.9 |
| Max. Dia. | 24 |
Cross Reference
| Name | Part Number | Notes |
|---|---|---|
| Contitech | 73746 | Air Spring Rolling Lobe |
| Contitech | 9 10S-18 P 1067 | Air Spring Rolling Lobe |
| Firestone | 1191 | Air Spring Rolling Lobe |
| Firestone | W013581191 | Air Spring Rolling Lobe |
| Firestone | W01-358-1191 | Air Spring Rolling Lobe |
| Firestone | W013589875 | Air Spring Rolling Lobe |
| Firestone | W01-358-9875 | Air Spring Rolling Lobe |
| Goodyear | 1R12432 | Air Spring Rolling Lobe |
| Goodyear | 1R12-432 | Air Spring Rolling Lobe |
| IHC | 2514460C1 | Air Spring Rolling Lobe |
| IHC | 350243C94 | Air Spring Rolling Lobe |
| IHC | 3541731C1 | Air Spring Rolling Lobe |
