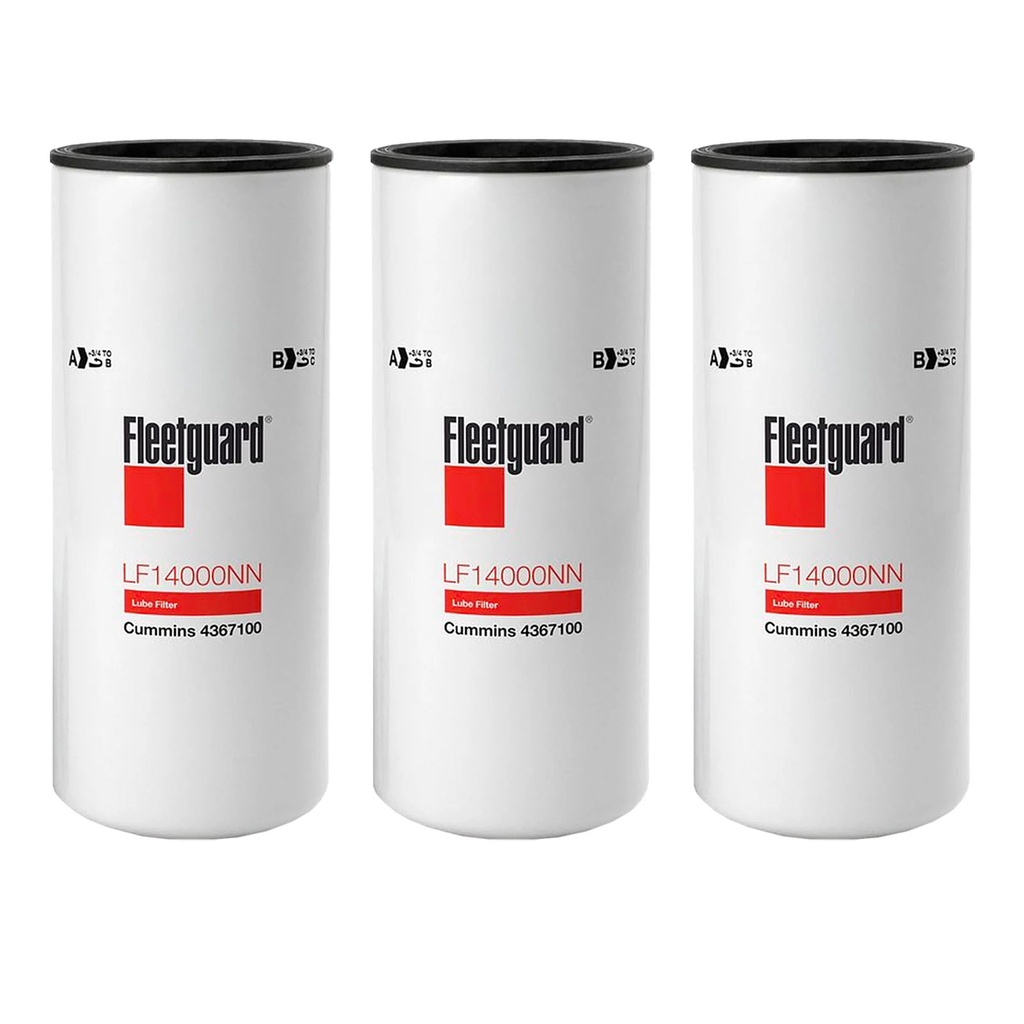

FleetGuard Oil Filter LF14000NN *(3Pack)*

Lube Filter
Cummins® Filtration LF14000NN Lube Filter technology delivers best-in-class performance and provides high-efficiency filtration for extended protection to the engine and components. Its unique Full-Flow design delivers optimum performance and reliable operation, maximizing equipment operating time and lowering costs.

Cross Reference Information

10332314, 119001001, 11NB70110, 1216400571, 1415822, 15275439, 15501271, 23020407, 2874490, 2882674, 2KXT5, 3076PH8691, 3076PH8691A, 3101869, 3406809, 3562229031, 400107, 4136480, 4249030, 4331005, 4367100, 47400034P, 52WY02, 54662028, 57746, 57746XD, 57899346, 5839LF9080, 6216545110, 76194865, 76612210, 7746, 7746XD, 84385571, 84746, 84746XD, 87408494, 91746, 91746XD, 9239440174, 9414101645, 945949, 95000, 97400034P, ABPN10GLF9001, BAL-BD50000, BD50000, BD7154, C5710, D391, E12979663, FTG-LF14000NN, GP9001, L65329, LF1000, LF14000NN, LF14000NNFLG, LF9001, LF9011, LF9080, LFP9001, LFP9001XL, LFP9008, LFR89001, LFR89011, OC516, P550949, P559000, PH8691, PH8691A, SFO0901, SO10020, SO10142, SP1444, SP47413, SP47414, T6450551, WGL9001, WL10107, WP12120, WP121201, YE3101869, YE3406809, Z872

Specifications Performance Capacity 100 g* 30 Micron Efficiency 98.9% 10 Micron Efficiency 72.3% Rated Flow 27.74 gal/min (105.0 L/min) Dome Outside Diameter 4.671" (118.6 mm) Gasket Inside Diameter 4" (102 mm) Gasket Outside Diameter 4.68" (118.9 mm) Media Bypass Disc Height 3.29" (83.6 mm) Overall Height 11.602" (294.69 mm) Seam Outside Diameter 4.65" (118.1 mm) Thread Size M95 X 2.5-7H * Capacity measured at rated flow and terminal dp of 25 PSID

Installation Tips ■ Installation instructions are provided on the filter ■ Always pre-fill with oil on the “dirty” side of the filter (on the outer side of the filter) ■ Always clean and oil the gasket before installation, do NOT use grease ■ After installing a new filter, start the engine and wait for a few minutes, then check for leaks Recommended Service Intervals* ■ Light Duty: >7.0 mi/gal (2.98 km/L) Replace every 35,000 miles ■ Normal Duty: 6.0-7.0 mi/gal (2.55-2.98 km/L) Replace every 25,000 miles ■ Severe Duty: <6.0 mi/gal (2.55 km/L) Replace every 15,000 miles * Service intervals are for Cummins ISX, ISM, QSX, QSM and M11 engines. For more application details, refer to the online catalog at cumminsfiltration.com or contact your local Customer Assistance Center. Refer to the engine owner's manual - OEM recommended oil grade and oil change intervals should always be followed.
