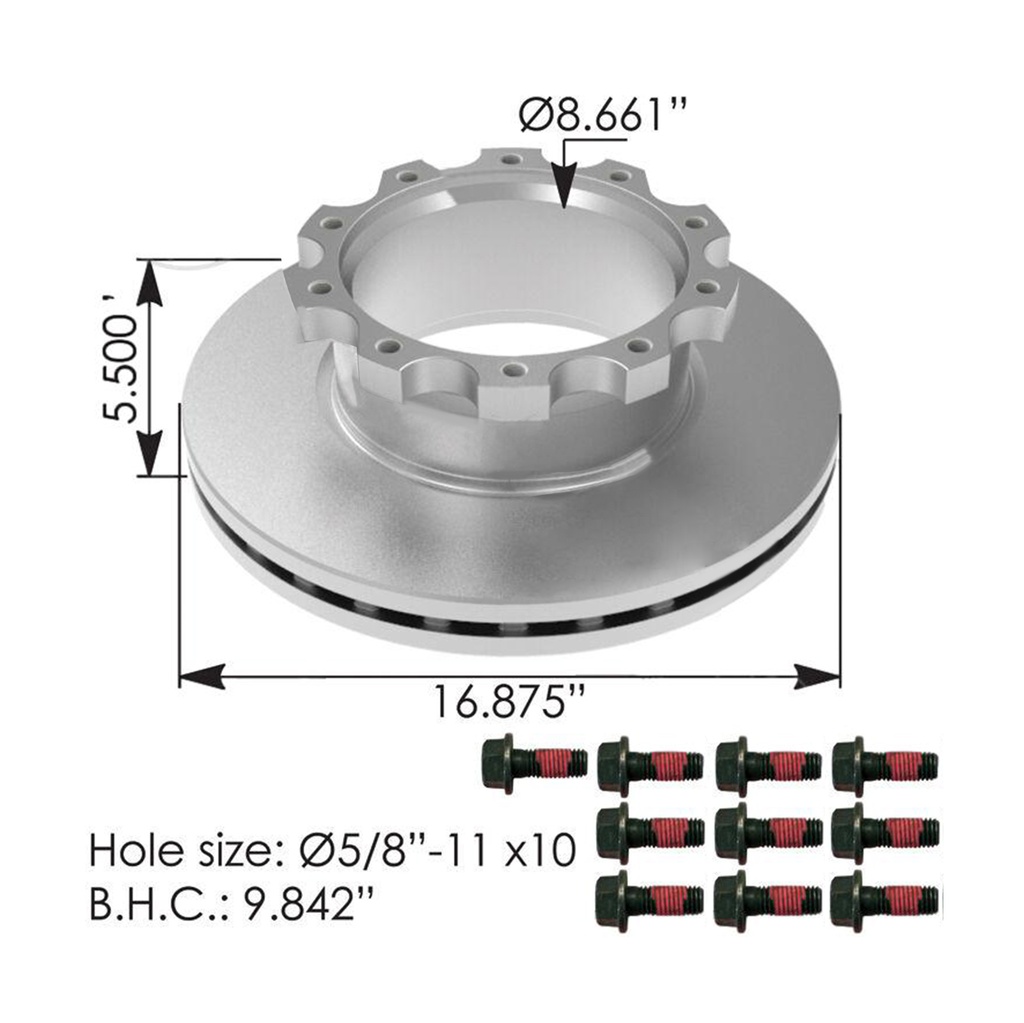

Specifications Attribute ValueDisc Brake ShapeU ShapeBrake SystemAir DiscDisc OD (A)16.875Overall Depth (B)5.500Bolt Circle (C)9.842Hole Dia. (D)5/8-11Nos. Hole (E)10Pilot Dia. (F)8.661NotesThreaded Bolt HolesApplicationBendix ADB22X/ADB225Cross Reference Name Number Notes Bendix802081Air Disc RotorBendixBW802081Air Disc RotorBendixK038573Air Disc RotorMeritorM44D76618Air Disc Rotor
